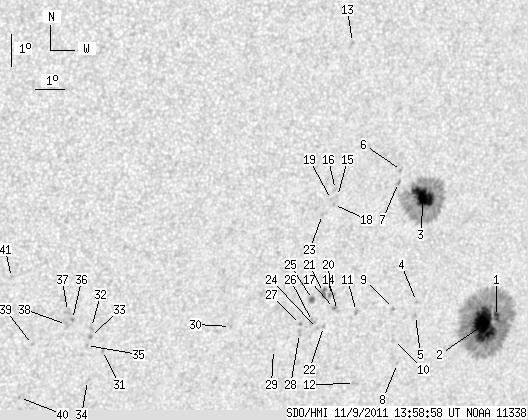

SDO HMI 2011-11-09 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.68 | 486.41 | 47.98 | 302.41 | -13.91 | 121.46 | 32.92 | 241.08 | 0.6041 | 481.0 | 242.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.31 | 275.04 | 2.76 | 175.87 | -14.96 | 123.77 | 35.23 | 241.23 | 0.6381 | 688.3 | 341.4 | |
| 43.51 | -1.00 | 27.82 | -1.00 | -15.19 | 123.33 | 34.79 | 240.61 | 0.6342 | 1160.1 | 999999 | |
| 24.21 | 139.76 | 14.64 | 84.59 | -11.13 | 120.50 | 31.96 | 244.86 | 0.5759 | 1135.5 | 335.6 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -14.38 | 120.72 | 32.17 | 239.97 | 0.5980 | 697.0 | 625.9 | |
| 0.00 | 1.64 | 0.00 | 1.01 | -14.82 | 120.75 | 32.21 | 239.34 | 0.6013 | 779.0 | 631.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -10.31 | 119.63 | 31.08 | 245.62 | 0.5599 | 716.0 | 565.2 | |
| 0.00 | 2.33 | 0.00 | 1.39 | -10.67 | 119.56 | 31.02 | 244.97 | 0.5611 | 671.0 | 612.4 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -16.31 | 120.36 | 31.82 | 236.86 | 0.6065 | 708.0 | 554.3 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -14.57 | 119.92 | 31.37 | 239.08 | 0.5896 | -620.0 | -382.6 | |
| 0.00 | 1.72 | 0.00 | 1.06 | -15.58 | 120.08 | 31.54 | 237.71 | 0.5983 | 334.0 | 333.5 | |
| 0.00 | 2.67 | 0.00 | 1.61 | -14.63 | 118.60 | 30.06 | 237.96 | 0.5740 | -672.0 | -524.2 | |
| 0.00 | 2.41 | 0.00 | 1.48 | -16.90 | 118.90 | 30.36 | 234.84 | 0.5938 | -708.0 | -345.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -6.37 | 117.59 | 29.04 | 251.24 | 0.5116 | 736.0 | 580.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -14.57 | 117.92 | 29.38 | 237.47 | 0.5653 | -434.0 | -411.4 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -11.04 | 117.47 | 28.93 | 242.83 | 0.5358 | 801.0 | 552.8 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -10.82 | 117.38 | 28.83 | 243.13 | 0.5332 | 830.0 | 620.0 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -14.51 | 117.81 | 29.26 | 237.48 | 0.5634 | -722.0 | -629.7 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -11.28 | 117.36 | 28.82 | 242.33 | 0.5358 | 747.0 | 654.5 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -11.12 | 117.27 | 28.73 | 242.53 | 0.5337 | 792.0 | 633.8 | |
| 0.00 | 3.88 | 0.00 | 2.31 | -14.10 | 117.61 | 29.06 | 237.95 | 0.5581 | -929.0 | -676.4 | |
| 1.55 | 4.65 | 0.92 | 2.76 | -13.99 | 117.35 | 28.80 | 237.88 | 0.5542 | -945.6 | -827.6 | |
| 0.00 | 1.64 | 0.00 | 0.98 | -15.06 | 117.50 | 28.96 | 236.36 | 0.5638 | -508.0 | -351.4 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -11.57 | 117.01 | 28.47 | 241.55 | 0.5332 | 788.0 | 539.6 | |
| 0.00 | 1.46 | 0.00 | 0.88 | -15.12 | 117.30 | 28.76 | 236.10 | 0.5617 | -598.0 | -464.4 | |
| 3.10 | 3.27 | 1.84 | 1.94 | -14.20 | 116.99 | 28.45 | 237.25 | 0.5513 | -778.5 | -710.0 | |
| 0.00 | 3.96 | 0.00 | 2.36 | -14.89 | 117.09 | 28.55 | 236.26 | 0.5576 | -716.0 | -640.5 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -14.97 | 116.68 | 28.14 | 235.76 | 0.5533 | -864.0 | -718.9 | |
| 0.00 | 2.33 | 0.00 | 1.38 | -15.25 | 116.69 | 28.14 | 235.33 | 0.5555 | -696.0 | -621.9 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -15.73 | 115.85 | 27.31 | 233.82 | 0.5493 | -513.0 | -306.1 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -14.96 | 114.26 | 25.72 | 233.43 | 0.5242 | -627.0 | -520.7 | |
| 0.00 | 2.15 | 0.00 | 1.22 | -15.61 | 110.04 | 21.50 | 227.49 | 0.4807 | -544.0 | -484.6 | |
| 0.00 | 2.24 | 0.00 | 1.25 | -14.88 | 109.60 | 21.05 | 228.10 | 0.4684 | -856.0 | -605.8 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -15.16 | 109.59 | 21.05 | 227.63 | 0.4712 | -943.0 | -857.1 | |
| 0.00 | 2.15 | 0.00 | 1.22 | -16.54 | 109.65 | 21.10 | 225.51 | 0.4858 | -470.0 | -522.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -15.44 | 109.49 | 20.95 | 227.05 | 0.4728 | -664.0 | -547.0 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -14.61 | 108.95 | 20.40 | 227.66 | 0.4583 | -906.0 | -777.3 | |
| 0.00 | 3.27 | 0.00 | 1.82 | -14.36 | 108.76 | 20.22 | 227.83 | 0.4536 | -508.0 | -544.7 | |
| 0.00 | 4.31 | 0.00 | 2.40 | -14.77 | 108.76 | 20.22 | 227.16 | 0.4578 | -772.0 | -637.9 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -15.37 | 107.71 | 19.17 | 224.67 | 0.4523 | -757.0 | -544.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -17.03 | 107.45 | 18.91 | 221.70 | 0.4678 | -757.0 | -521.3 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -13.26 | 106.85 | 18.31 | 226.95 | 0.4202 | -912.0 | -683.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
