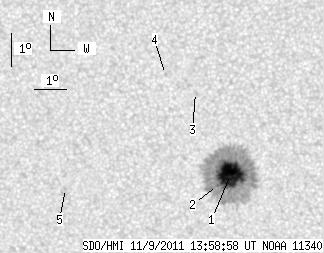

SDO HMI 2011-11-09 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.57 | 236.69 | 22.41 | 124.63 | -8.64 | 72.83 | -15.71 | 127.87 | 0.3406 | 1062.1 | 372.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.31 | 232.73 | 22.27 | 122.53 | -8.65 | 72.89 | -15.65 | 128.00 | 0.3399 | 1318.6 | 393.5 | |
| 0.26 | -1.00 | 0.14 | -1.00 | -8.99 | 72.47 | -16.07 | 128.06 | 0.3488 | 759.7 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -6.19 | 71.89 | -16.65 | 120.22 | 0.3311 | -732.0 | -571.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -5.66 | 70.97 | -17.57 | 117.53 | 0.3402 | -717.0 | -605.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -9.18 | 67.64 | -20.90 | 121.48 | 0.4148 | -733.0 | -687.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
