SDO HMI 2011-11-09 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.69 | 315.31 | 33.19 | 184.37 | 9.52 | 56.27 | -31.73 | 77.64 | 0.5327 | -827.8 | -402.3 | |
|
previous
or next observation for the same group /

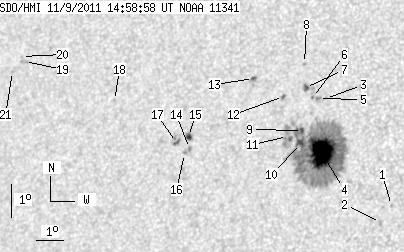

back to the solar disc SDO HMI 2011-11-09 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.58 | 7.83 | 59.44 | -28.55 | 80.09 | 0.4826 | -784.0 | -610.0 | |
| 0.00 | 1.90 | 0.00 | 1.07 | 7.31 | 59.11 | -28.89 | 81.23 | 0.4868 | -766.0 | -594.0 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 10.95 | 56.85 | -31.14 | 74.78 | 0.5283 | -728.0 | -491.3 | |
| 40.15 | 265.79 | 23.31 | 154.45 | 9.34 | 56.89 | -31.11 | 77.80 | 0.5236 | -1223.4 | -432.4 | |
| 0.00 | 2.50 | 0.00 | 1.46 | 10.94 | 56.61 | -31.39 | 74.88 | 0.5318 | -869.0 | -666.8 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 10.97 | 56.39 | -31.60 | 74.91 | 0.5349 | -649.0 | -635.2 | |
| 2.24 | 3.19 | 1.32 | 1.87 | 11.26 | 56.11 | -31.89 | 74.48 | 0.5398 | -764.3 | -701.5 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 11.97 | 55.98 | -32.02 | 73.23 | 0.5438 | -743.0 | -637.8 | |
| 2.15 | -4.00 | 1.26 | -4.00 | 9.97 | 56.15 | -31.84 | 76.83 | 0.5358 | -634.6 | 999999 | |
| 3.88 | -4.00 | 2.27 | -4.00 | 9.58 | 56.12 | -31.87 | 77.56 | 0.5353 | -501.1 | 999999 | |
| 0.00 | 15.51 | 0.00 | 9.13 | 9.77 | 55.64 | -32.36 | 77.34 | 0.5427 | -170.0 | -124.3 | |
| 1.55 | 1.98 | 0.92 | 1.17 | 10.96 | 55.35 | -32.64 | 75.27 | 0.5497 | -581.6 | -593.4 | |
| 1.90 | 2.15 | 1.14 | 1.29 | 11.47 | 54.20 | -33.79 | 74.76 | 0.5672 | 800.7 | 732.7 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 9.30 | 52.12 | -35.87 | 79.01 | 0.5913 | -845.0 | -628.9 | |
| 2.67 | 4.39 | 1.64 | 2.70 | 9.65 | 52.04 | -35.95 | 78.43 | 0.5931 | -767.6 | -624.2 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 9.14 | 51.95 | -36.04 | 79.31 | 0.5934 | -724.0 | -683.9 | |
| 2.15 | 4.74 | 1.33 | 2.93 | 9.46 | 51.61 | -36.38 | 78.84 | 0.5986 | -620.7 | -517.5 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 10.62 | 49.09 | -38.90 | 77.47 | 0.6346 | -608.0 | -498.5 | |
| 0.00 | 2.84 | 0.00 | 1.93 | 11.65 | 45.30 | -42.69 | 76.66 | 0.6848 | 707.0 | 628.9 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 11.79 | 45.15 | -42.84 | 76.48 | 0.6869 | 586.0 | 446.6 | |
| 0.00 | 1.29 | 0.00 | 0.88 | 11.33 | 44.87 | -43.13 | 77.20 | 0.6897 | 528.0 | 414.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
