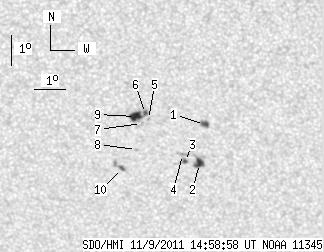

SDO HMI 2011-11-09 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.38 | 45.68 | 13.76 | 25.79 | -25.17 | 85.23 | -2.76 | 174.80 | 0.4841 | -59.4 | -0.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.31 | 4.57 | 2.42 | 2.56 | -24.57 | 86.53 | -1.46 | 177.18 | 0.4732 | 916.9 | 603.0 | |
| 6.20 | 10.86 | 3.53 | 6.17 | -25.89 | 86.35 | -1.64 | 176.99 | 0.4936 | 874.4 | 701.1 | |
| 1.81 | 3.88 | 1.03 | 2.20 | -25.82 | 85.86 | -2.14 | 176.08 | 0.4930 | 803.2 | 564.7 | |
| 0.00 | 3.45 | 0.00 | 1.95 | -25.58 | 85.79 | -2.20 | 175.93 | 0.4894 | 781.0 | 585.7 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -24.40 | 84.71 | -3.29 | 173.63 | 0.4729 | -686.0 | -506.6 | |
| 1.98 | 13.27 | 1.11 | 7.44 | -24.20 | 84.61 | -3.38 | 173.40 | 0.4700 | -990.0 | -727.7 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -24.54 | 84.47 | -3.52 | 173.23 | 0.4754 | -467.0 | -341.0 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -25.42 | 84.28 | -3.71 | 173.11 | 0.4891 | -536.0 | -468.6 | |
| 8.10 | -6.00 | 4.54 | -6.00 | -24.30 | 84.28 | -3.71 | 172.80 | 0.4722 | -986.3 | 999999 | |
| 1.98 | 5.17 | 1.13 | 2.95 | -26.07 | 83.80 | -4.19 | 172.42 | 0.4999 | -622.3 | -761.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
