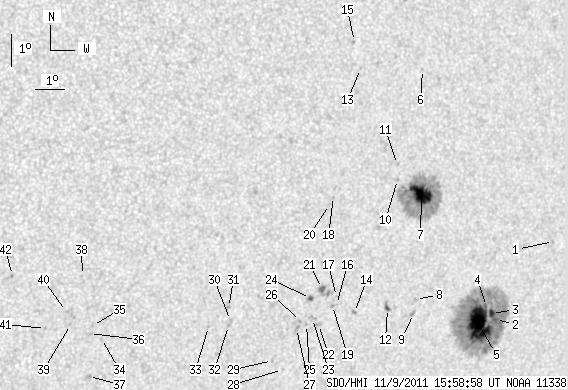

SDO HMI 2011-11-09 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.16 | 470.26 | 50.21 | 296.74 | -13.92 | 121.68 | 34.23 | 242.04 | 0.6201 | 452.6 | 257.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.91 | -12.78 | 125.71 | 38.27 | 246.10 | 0.6630 | 659.0 | 443.6 | |
| 1.03 | 272.31 | 0.67 | 176.48 | -15.13 | 123.92 | 36.48 | 241.77 | 0.6537 | -125.4 | 337.0 | |
| 2.84 | -2.00 | 1.85 | -2.00 | -14.94 | 123.73 | 36.29 | 241.93 | 0.6504 | 692.6 | 999999 | |
| 0.95 | -2.00 | 0.61 | -2.00 | -14.71 | 123.50 | 36.05 | 242.10 | 0.6464 | 765.8 | 999999 | |
| 44.97 | -2.00 | 29.14 | -2.00 | -15.24 | 123.29 | 35.85 | 241.24 | 0.6470 | 1151.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -7.33 | 120.15 | 32.71 | 251.58 | 0.5671 | 676.0 | 466.3 | |
| 22.40 | 136.29 | 13.72 | 83.50 | -11.14 | 120.52 | 33.08 | 245.57 | 0.5904 | 1126.3 | 356.7 | |
| 0.00 | 1.38 | 0.00 | 0.86 | -14.40 | 120.78 | 33.34 | 240.79 | 0.6122 | 819.0 | 677.6 | |
| 0.00 | 2.24 | 0.00 | 1.40 | -14.83 | 120.79 | 33.34 | 240.15 | 0.6149 | 779.0 | 603.1 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -10.65 | 119.59 | 32.15 | 245.76 | 0.5758 | 745.0 | 664.6 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -10.19 | 119.54 | 32.10 | 246.47 | 0.5726 | 798.0 | 636.7 | |
| 1.46 | 4.14 | 0.91 | 2.56 | -14.64 | 119.80 | 32.36 | 239.72 | 0.6019 | -436.4 | -295.2 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -7.23 | 117.96 | 30.52 | 250.55 | 0.5364 | 713.0 | 543.6 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -14.73 | 118.62 | 31.18 | 238.70 | 0.5882 | -712.0 | -611.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -6.41 | 117.69 | 30.25 | 251.87 | 0.5289 | 750.0 | 694.5 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -14.46 | 117.94 | 30.49 | 238.57 | 0.5781 | -451.0 | -420.4 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -14.21 | 117.90 | 30.46 | 238.93 | 0.5759 | -596.0 | -425.8 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -11.10 | 117.38 | 29.94 | 243.50 | 0.5495 | 764.0 | 614.9 | |
| 0.00 | 1.55 | 0.00 | 0.94 | -14.48 | 117.80 | 30.36 | 238.42 | 0.5766 | -754.0 | -641.7 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -11.34 | 117.27 | 29.83 | 243.01 | 0.5495 | 799.0 | 587.2 | |
| 3.27 | 8.96 | 1.97 | 5.39 | -13.94 | 117.36 | 29.92 | 238.91 | 0.5675 | -860.8 | -718.8 | |
| 0.00 | 2.76 | 0.00 | 1.67 | -15.06 | 117.39 | 29.95 | 237.20 | 0.5757 | -500.0 | -406.4 | |
| 0.00 | 3.53 | 0.00 | 2.13 | -14.87 | 117.15 | 29.70 | 237.30 | 0.5714 | -743.0 | -628.7 | |
| 2.24 | 2.76 | 1.34 | 1.65 | -14.24 | 116.98 | 29.54 | 238.13 | 0.5649 | -819.3 | -682.3 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -15.05 | 116.96 | 29.52 | 236.87 | 0.5704 | -760.0 | -642.1 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -14.95 | 116.73 | 29.29 | 236.82 | 0.5670 | -911.0 | -802.9 | |
| 0.00 | 2.07 | 0.00 | 1.24 | -15.16 | 116.63 | 29.18 | 236.40 | 0.5672 | -632.0 | -645.6 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -16.44 | 116.33 | 28.89 | 234.22 | 0.5734 | -515.0 | -441.9 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -16.15 | 115.93 | 28.49 | 234.30 | 0.5664 | -744.0 | -550.0 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -14.84 | 114.28 | 26.84 | 234.74 | 0.5366 | -694.0 | -515.8 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -14.43 | 114.16 | 26.71 | 235.27 | 0.5318 | -792.0 | -579.0 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -15.00 | 114.23 | 26.79 | 234.45 | 0.5372 | -607.0 | -472.5 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -15.01 | 113.55 | 26.10 | 233.75 | 0.5291 | -619.0 | -524.2 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -15.29 | 109.97 | 22.52 | 229.30 | 0.4894 | -755.0 | -523.9 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -14.88 | 109.62 | 22.18 | 229.55 | 0.4814 | -772.0 | -621.1 | |
| 0.00 | 2.33 | 0.00 | 1.31 | -15.12 | 109.55 | 22.11 | 229.06 | 0.4829 | -777.0 | -615.5 | |
| 0.00 | 2.76 | 0.00 | 1.57 | -16.48 | 109.67 | 22.23 | 227.07 | 0.4975 | -767.0 | -564.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -13.31 | 109.13 | 21.69 | 231.59 | 0.4609 | -615.0 | -521.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -14.83 | 108.89 | 21.44 | 228.70 | 0.4724 | -800.0 | -613.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -14.42 | 108.71 | 21.27 | 229.15 | 0.4664 | -633.0 | -547.1 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -14.93 | 108.07 | 20.63 | 227.45 | 0.4641 | -883.0 | -751.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -13.26 | 106.84 | 19.40 | 228.60 | 0.4329 | -843.0 | -697.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
