groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11339 410.65 2288.17 222.49 1238.69 19.12 105.61 18.17 313.28 0.4047 -500.8 -262.5


previous   or   next   observation for the same group / back to the solar disc

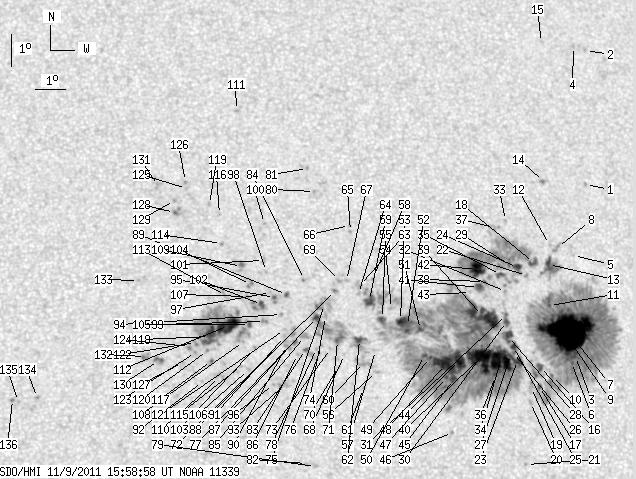

SDO HMI 2011-11-09 15:58:58 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.95 0.00 0.54 23.54 110.33 22.89 314.22 0.4995 -763.0 -692.8
2 0.00 0.95 0.00 0.56 27.83 111.22 23.78 319.43 0.5504 -765.0 -555.7
3 0.95 618.20 0.52 341.21 18.20 109.15 21.71 306.27 0.4376 -1086.0 -379.7
4 0.00 1.29 0.00 0.76 27.97 110.82 23.37 320.06 0.5480 -822.0 -716.1
5 0.00 0.95 0.00 0.53 21.33 109.53 22.09 311.52 0.4698 656.0 413.5
6 0.34 -3.00 0.19 -3.00 18.02 108.99 21.55 306.10 0.4341 -959.2 999999
7 108.80 -3.00 60.04 -3.00 18.98 109.01 21.57 307.91 0.4426 -1521.0 999999
8 0.00 4.91 0.00 2.75 21.59 109.02 21.58 312.58 0.4664 -678.0 -533.4
9 1.55 -3.00 0.86 -3.00 19.45 108.57 21.13 309.33 0.4413 -910.9 999999
10 1.29 -3.00 0.71 -3.00 17.64 108.27 20.83 306.19 0.4217 -692.9 999999
11 1.38 -3.00 0.76 -3.00 19.79 108.48 21.04 310.07 0.4434 -546.8 999999
12 0.00 1.12 0.00 0.63 21.69 108.76 21.32 313.07 0.4644 -513.0 -320.5
13 5.60 25.84 3.11 14.37 21.06 108.63 21.19 312.16 0.4570 -633.7 -261.5
14 0.00 3.19 0.00 1.80 23.67 108.88 21.44 316.15 0.4852 -895.0 -676.2
15 0.00 1.03 0.00 0.61 28.13 109.68 22.24 321.56 0.5391 -583.0 -468.7
16 4.05 15.68 2.21 8.54 17.92 107.94 20.50 307.17 0.4199 -970.7 -822.9
17 2.07 -3.00 1.12 -3.00 17.31 107.83 20.39 306.06 0.4133 -880.7 999999
18 4.48 182.03 2.48 100.27 21.14 108.13 20.69 312.92 0.4520 -706.5 -254.9
19 0.00 5.26 0.00 2.85 17.29 107.57 20.12 306.35 0.4096 -816.0 -728.6
20 0.00 2.67 0.00 1.45 16.83 107.48 20.04 305.50 0.4046 -840.0 -613.3
21 0.00 1.29 0.00 0.69 14.95 107.16 19.71 301.77 0.3850 -894.0 -689.9
22 0.00 2.33 0.00 1.28 20.74 107.84 20.40 312.60 0.4447 -832.0 -619.8
23 3.96 984.15 2.15 529.49 18.12 107.20 19.76 308.52 0.4124 -859.5 -486.6
24 4.48 -18.00 2.47 -18.00 20.99 107.57 20.13 313.41 0.4441 -903.4 999999
25 2.58 -23.00 1.41 -23.00 18.55 107.12 19.68 309.48 0.4153 -988.4 999999
26 0.86 -23.00 0.47 -23.00 18.37 107.09 19.65 309.15 0.4134 -822.1 999999
27 1.29 -23.00 0.70 -23.00 18.31 106.99 19.55 309.17 0.4115 -889.8 999999
28 7.67 -23.00 4.17 -23.00 18.86 106.99 19.55 310.26 0.4167 -948.1 999999
29 1.72 -18.00 0.95 -18.00 21.09 107.28 19.84 313.97 0.4418 -877.0 999999
30 2.58 -23.00 1.41 -23.00 19.33 106.98 19.54 311.16 0.4210 -854.8 999999
31 1.38 -23.00 0.75 -23.00 19.54 107.01 19.56 311.54 0.4234 -692.1 999999
32 0.00 1.55 0.00 0.85 20.26 107.06 19.62 312.77 0.4310 -920.0 -763.8
33 0.00 0.95 0.00 0.53 22.47 107.38 19.94 316.17 0.4569 594.0 412.8
34 26.45 -23.00 14.32 -23.00 18.13 106.64 19.19 309.30 0.4055 -1321.9 999999
35 3.45 -18.00 1.89 -18.00 20.79 106.97 19.53 313.86 0.4352 -780.9 999999
36 0.26 -23.00 0.14 -23.00 17.65 106.42 18.98 308.61 0.3982 -1183.0 999999
37 0.00 4.74 0.00 2.63 22.26 106.94 19.49 316.43 0.4500 610.0 531.2
38 1.12 18.00 0.61 9.85 20.58 106.40 18.96 314.28 0.4267 -864.9 -700.2
39 34.89 -23.00 18.97 -23.00 19.53 106.20 18.76 312.63 0.4138 -1018.3 999999
40 31.87 -23.00 17.20 -23.00 18.24 105.99 18.55 310.42 0.3985 -1409.3 999999
41 5.08 -38.00 2.77 -38.00 20.40 106.18 18.74 314.27 0.4223 -982.7 999999
42 13.27 -18.00 7.27 -18.00 20.96 106.22 18.77 315.22 0.4285 -1192.2 999999
43 0.00 0.95 0.00 0.52 20.25 105.89 18.45 314.42 0.4175 -354.0 -341.0
44 14.56 -23.00 7.82 -23.00 18.16 105.29 17.85 311.29 0.3892 -1240.5 999999
45 3.96 -23.00 2.12 -23.00 17.58 105.03 17.59 310.48 0.3804 -1233.5 999999
46 0.00 1.03 0.00 0.55 15.97 104.85 17.40 307.22 0.3627 757.0 624.7
47 0.78 -23.00 0.41 -23.00 17.65 104.81 17.37 310.95 0.3783 -1307.7 999999
48 27.05 -23.00 14.49 -23.00 18.04 104.82 17.38 311.77 0.3824 -1323.0 999999
49 1.21 -23.00 0.65 -23.00 18.27 104.35 16.91 312.97 0.3791 -1068.2 999999
50 1.46 -23.00 0.78 -23.00 18.33 104.16 16.72 313.41 0.3775 -978.1 999999
51 1.98 -23.00 1.06 -23.00 19.13 104.11 16.67 315.08 0.3855 -1082.0 999999
52 10.85 -23.00 5.81 -23.00 19.26 103.70 16.26 316.02 0.3822 -646.2 999999
53 4.57 -23.00 2.44 -23.00 19.42 103.48 16.04 316.68 0.3816 589.0 999999
54 0.00 2.24 0.00 1.20 19.80 103.23 15.79 317.83 0.3830 277.0 150.1
55 3.53 -23.00 1.89 -23.00 19.49 102.90 15.46 317.83 0.3760 612.3 999999
56 0.00 2.58 0.00 1.37 17.87 102.56 15.12 315.21 0.3538 -820.0 -675.5
57 0.00 1.98 0.00 1.05 18.51 102.58 15.14 316.49 0.3613 -551.0 -539.3
58 0.00 1.38 0.00 0.74 20.74 102.70 15.26 320.46 0.3883 655.0 578.2
59 8.44 -23.00 4.51 -23.00 20.06 102.53 15.09 319.54 0.3786 958.0 999999
60 0.00 9.39 0.00 4.97 18.15 102.16 14.72 316.52 0.3525 -30.0 45.3
61 0.00 1.46 0.00 0.77 17.35 102.09 14.65 314.97 0.3428 186.0 205.9
62 4.05 18.09 2.15 9.59 18.86 102.09 14.65 318.07 0.3599 -704.2 -176.0
63 0.00 5.26 0.00 2.81 20.53 102.25 14.81 320.90 0.3812 943.0 697.8
64 0.00 1.72 0.00 0.92 20.28 102.20 14.75 320.56 0.3777 831.0 742.0
65 0.00 1.29 0.00 0.70 22.21 102.13 14.69 323.95 0.4006 -942.0 -709.8
66 0.00 1.03 0.00 0.56 22.40 102.12 14.68 324.27 0.4029 -791.0 -602.0
67 0.00 1.90 0.00 1.01 20.69 101.84 14.40 321.94 0.3790 811.0 606.5
68 0.00 1.03 0.00 0.55 18.40 101.57 14.13 318.17 0.3488 630.0 490.5
69 0.00 2.33 0.00 1.24 20.69 101.61 14.17 322.37 0.3768 936.0 675.3
70 0.00 1.03 0.00 0.54 18.04 101.35 13.91 317.86 0.3421 511.0 428.0
71 1.90 70.73 1.00 37.46 18.84 101.38 13.94 319.40 0.3519 429.3 171.5
72 0.00 2.41 0.00 1.29 20.38 101.45 14.01 322.14 0.3714 824.0 581.6
73 0.00 1.38 0.00 0.73 18.59 101.13 13.69 319.41 0.3464 685.0 520.4
74 0.00 2.41 0.00 1.28 19.58 101.06 13.61 321.47 0.3576 189.0 101.5
75 0.00 17.06 0.00 9.06 19.95 101.06 13.61 322.15 0.3622 359.0 444.2
76 0.00 1.46 0.00 0.77 18.66 100.85 13.41 320.12 0.3442 700.0 587.8
77 3.10 -71.00 1.64 -71.00 19.55 100.76 13.32 322.01 0.3543 834.5 999999
78 0.00 0.86 0.00 0.45 18.60 100.68 13.24 320.34 0.3417 777.0 645.1
79 0.00 1.55 0.00 0.80 15.00 100.40 12.96 312.83 0.2966 860.0 624.0
80 0.00 1.29 0.00 0.70 23.49 101.07 13.63 327.81 0.4074 776.0 659.7
81 0.00 1.21 0.00 0.66 24.22 100.91 13.47 329.11 0.4157 791.0 642.3
82 0.00 1.21 0.00 0.62 15.10 100.12 12.68 313.67 0.2943 717.0 598.0
83 1.90 6.46 1.00 3.40 18.57 100.33 12.89 321.03 0.3377 934.1 674.3
84 0.00 1.38 0.00 0.73 20.74 100.47 13.03 324.68 0.3664 -503.0 -390.8
85 0.00 4.74 0.00 2.50 18.97 100.33 12.89 321.81 0.3426 827.0 690.1
86 0.00 0.69 0.00 0.36 18.42 100.06 12.62 321.31 0.3330 919.0 732.4
87 1.21 2.58 0.63 1.36 18.86 100.00 12.56 322.29 0.3378 884.4 861.6
88 0.00 3.88 0.00 2.04 19.13 99.99 12.54 322.84 0.3412 586.0 729.5
89 1.90 2.58 1.00 1.37 20.28 99.85 12.41 325.18 0.3546 787.8 680.4
90 0.00 5.26 0.00 2.76 18.70 99.73 12.29 322.58 0.3332 1123.0 821.0
91 0.00 1.55 0.00 0.82 18.98 99.69 12.24 323.20 0.3363 919.0 716.9
92 0.00 1.55 0.00 0.82 19.20 99.70 12.26 323.57 0.3392 800.0 620.3
93 0.00 4.82 0.00 2.52 17.48 99.55 12.10 320.51 0.3159 568.0 720.3
94 0.00 1.38 0.00 0.73 19.66 99.64 12.20 324.55 0.3446 912.0 700.7
95 1.29 4.31 0.68 2.28 20.19 99.46 12.01 325.88 0.3498 870.0 819.8
96 0.00 1.03 0.00 0.54 17.51 99.23 11.79 321.30 0.3130 1006.0 825.9
97 0.00 1.03 0.00 0.55 20.35 99.34 11.90 326.40 0.3508 473.0 401.8
98 0.00 1.21 0.00 0.64 21.00 99.26 11.82 327.64 0.3588 694.0 617.3
99 0.00 2.76 0.00 1.45 19.45 99.08 11.64 325.42 0.3366 1017.0 897.6
100 0.00 0.95 0.00 0.51 22.50 99.32 11.88 329.79 0.3796 714.0 607.7
101 0.00 3.27 0.00 1.74 21.34 99.19 11.75 328.33 0.3629 821.0 659.5
102 3.36 10.25 1.77 5.40 19.98 99.02 11.58 326.47 0.3430 1005.8 902.4
103 0.00 1.38 0.00 0.72 18.66 98.73 11.29 324.74 0.3228 850.0 646.4
104 0.00 3.10 0.00 1.64 20.60 98.71 11.27 328.20 0.3487 807.0 847.0
105 2.50 14.82 1.31 7.76 19.37 98.59 11.15 326.38 0.3309 912.7 888.3
106 0.00 1.98 0.00 1.03 17.98 98.47 11.02 324.07 0.3114 711.0 618.8
107 0.00 2.07 0.00 1.09 20.23 98.59 11.15 327.87 0.3426 824.0 739.8
108 0.00 1.03 0.00 0.54 18.84 98.36 10.92 325.97 0.3218 646.0 525.2
109 0.00 5.26 0.00 2.78 21.17 98.46 11.02 329.64 0.3543 956.0 786.7
110 0.00 0.86 0.00 0.45 18.11 98.25 10.81 324.84 0.3109 807.0 701.7
111 0.00 1.55 0.00 0.85 26.10 98.72 11.28 335.48 0.4252 784.0 589.2
112 22.05 108.03 11.54 56.48 19.34 97.92 10.47 327.93 0.3245 1231.8 499.0
113 0.00 3.02 0.00 1.59 20.27 97.88 10.44 329.57 0.3371 725.0 531.9
114 0.00 1.29 0.00 0.69 21.89 97.87 10.43 332.04 0.3597 864.0 783.5
115 0.00 4.65 0.00 2.41 17.78 97.53 10.09 326.00 0.2997 609.0 769.0
116 0.00 0.69 0.00 0.37 22.80 97.87 10.43 333.27 0.3726 727.0 526.5
117 0.34 2.67 0.18 1.39 18.27 97.31 9.87 327.52 0.3044 1045.2 766.3
118 14.21 -112.00 7.41 -112.00 19.01 97.29 9.85 328.91 0.3145 1216.7 999999
119 0.00 1.72 0.00 0.92 23.12 97.57 10.13 334.33 0.3750 762.0 595.8
120 0.00 1.55 0.00 0.81 18.58 97.20 9.76 328.37 0.3077 1175.0 975.7
121 0.00 1.21 0.00 0.62 17.63 96.99 9.55 327.15 0.2927 844.0 688.1
122 0.00 2.67 0.00 1.39 18.83 96.83 9.39 329.77 0.3081 949.0 823.5
123 0.00 1.12 0.00 0.58 18.52 96.82 9.37 329.27 0.3036 1038.0 851.8
124 0.00 3.96 0.00 2.06 18.71 96.63 9.19 330.08 0.3047 874.0 765.2
125 0.00 0.86 0.00 0.46 23.63 96.85 9.41 336.52 0.3776 756.0 529.3
126 0.00 1.21 0.00 0.65 23.85 96.84 9.39 336.81 0.3807 772.0 702.4
127 0.00 1.81 0.00 0.94 18.22 96.39 8.95 329.88 0.2957 828.0 649.3
128 1.03 4.48 0.55 2.38 22.88 96.41 8.97 336.64 0.3636 1003.1 798.7
129 0.00 1.21 0.00 0.64 23.26 96.43 8.99 337.02 0.3694 906.0 742.5
130 0.00 5.69 0.00 2.94 18.29 95.63 8.19 332.12 0.2905 1053.0 964.3
131 0.00 3.53 0.00 1.88 23.74 95.94 8.50 338.66 0.3734 767.0 654.5
132 0.00 4.91 0.00 2.54 18.41 95.23 7.79 333.49 0.2893 998.0 895.1
133 0.00 0.86 0.00 0.45 20.76 95.12 7.68 337.20 0.3237 726.0 573.8
134 0.00 1.38 0.00 0.70 17.18 91.80 4.36 342.93 0.2485 1010.0 826.8
135 0.00 1.03 0.00 0.53 17.06 91.21 3.76 345.01 0.2438 866.0 693.5
136 0.00 1.55 0.00 0.79 17.12 91.02 3.58 345.78 0.2440 961.0 807.5


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
