SDO HMI 2011-11-09 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.63 | 487.43 | 57.99 | 269.09 | 16.66 | 64.42 | -23.02 | 58.11 | 0.4420 | -557.6 | -369.5 | |
|
previous
or next observation for the same group /

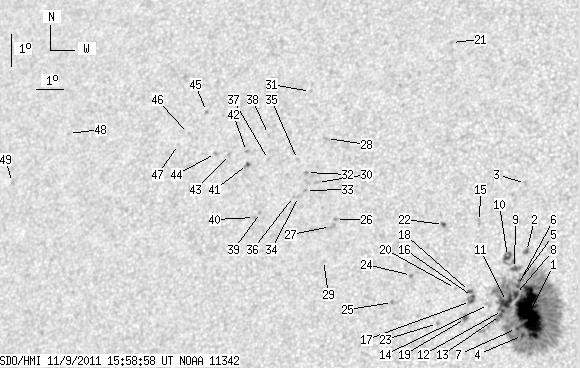

back to the solar disc SDO HMI 2011-11-09 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.97 | 405.33 | 37.14 | 221.45 | 16.15 | 65.57 | -21.87 | 58.06 | 0.4235 | -1297.4 | -475.3 | |
| 2.07 | 3.02 | 1.14 | 1.66 | 18.01 | 65.24 | -22.21 | 54.68 | 0.4424 | -662.8 | -622.4 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 20.10 | 64.90 | -22.54 | 51.15 | 0.4641 | -715.0 | -557.5 | |
| 1.72 | -1.00 | 0.94 | -1.00 | 15.45 | 65.42 | -22.03 | 59.71 | 0.4204 | -665.8 | 999999 | |
| 1.29 | -1.00 | 0.71 | -1.00 | 17.12 | 65.12 | -22.33 | 56.57 | 0.4369 | -662.5 | 999999 | |
| 1.38 | -1.00 | 0.76 | -1.00 | 16.96 | 65.07 | -22.37 | 56.93 | 0.4363 | -567.0 | 999999 | |
| 0.69 | -1.00 | 0.38 | -1.00 | 15.66 | 65.19 | -22.25 | 59.50 | 0.4250 | -783.9 | 999999 | |
| 3.10 | -1.00 | 1.70 | -1.00 | 16.69 | 65.04 | -22.41 | 57.52 | 0.4346 | -784.4 | 999999 | |
| 2.41 | 5.51 | 1.33 | 3.04 | 17.48 | 64.90 | -22.54 | 56.08 | 0.4425 | -719.6 | -534.8 | |
| 4.31 | 9.82 | 2.39 | 5.44 | 17.84 | 64.62 | -22.83 | 55.68 | 0.4490 | -701.4 | -613.2 | |
| 9.13 | -1.00 | 5.02 | -1.00 | 16.47 | 64.76 | -22.68 | 58.25 | 0.4367 | -768.2 | 999999 | |
| 1.12 | -1.00 | 0.62 | -1.00 | 16.19 | 64.66 | -22.78 | 58.92 | 0.4360 | -871.3 | 999999 | |
| 1.38 | -1.00 | 0.76 | -1.00 | 16.04 | 64.61 | -22.83 | 59.29 | 0.4356 | -860.1 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.47 | 16.36 | 64.17 | -23.27 | 59.06 | 0.4439 | -622.0 | -462.5 | |
| 0.00 | 2.15 | 0.00 | 1.21 | 18.89 | 63.51 | -23.93 | 54.85 | 0.4714 | -619.0 | -551.8 | |
| 1.38 | 6.29 | 0.76 | 3.49 | 16.59 | 63.60 | -23.84 | 59.15 | 0.4531 | -845.0 | -731.6 | |
| 1.64 | -16.00 | 0.91 | -16.00 | 16.44 | 63.55 | -23.89 | 59.50 | 0.4527 | -756.3 | 999999 | |
| 1.64 | 2.07 | 0.91 | 1.15 | 16.74 | 63.48 | -23.97 | 58.97 | 0.4558 | -637.5 | -645.6 | |
| 1.90 | 3.27 | 1.05 | 1.82 | 15.92 | 63.45 | -23.99 | 60.64 | 0.4506 | -860.8 | -651.8 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 16.82 | 62.99 | -24.45 | 59.27 | 0.4629 | -546.0 | -376.0 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 24.45 | 61.49 | -25.95 | 47.66 | 0.5411 | -769.0 | -578.5 | |
| 1.29 | 2.24 | 0.73 | 1.27 | 18.77 | 62.29 | -25.15 | 56.27 | 0.4859 | -733.5 | -645.3 | |
| 0.00 | 1.55 | 0.00 | 0.87 | 15.74 | 62.52 | -24.92 | 61.81 | 0.4621 | 1014.0 | 785.4 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 17.18 | 61.43 | -26.02 | 59.96 | 0.4860 | 851.0 | 680.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 16.34 | 60.89 | -26.55 | 61.97 | 0.4879 | -817.0 | -713.0 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 18.82 | 58.47 | -28.97 | 59.38 | 0.5349 | 901.0 | 733.4 | |
| 0.00 | 3.88 | 0.00 | 2.27 | 18.60 | 58.33 | -29.11 | 59.86 | 0.5353 | 792.0 | 711.3 | |
| 0.00 | 2.15 | 0.00 | 1.29 | 21.31 | 57.63 | -29.81 | 55.92 | 0.5614 | 780.0 | 483.8 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 17.55 | 58.27 | -29.17 | 61.71 | 0.5298 | 724.0 | 627.3 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 19.94 | 57.60 | -29.85 | 58.16 | 0.5529 | 832.0 | 620.6 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 22.76 | 56.69 | -30.75 | 54.39 | 0.5822 | -583.0 | -497.9 | |
| 0.00 | 1.64 | 0.00 | 0.98 | 20.24 | 57.13 | -30.31 | 58.02 | 0.5605 | 792.0 | 644.0 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 19.68 | 57.21 | -30.23 | 58.86 | 0.5560 | 951.0 | 742.3 | |
| 0.00 | 2.15 | 0.00 | 1.28 | 19.49 | 57.00 | -30.45 | 59.33 | 0.5575 | 670.0 | 454.0 | |
| 0.00 | 1.72 | 0.00 | 1.03 | 20.63 | 56.71 | -30.73 | 57.69 | 0.5680 | 676.0 | 481.9 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 19.48 | 56.81 | -30.63 | 59.47 | 0.5598 | 625.0 | 497.5 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 20.60 | 55.64 | -31.80 | 58.48 | 0.5808 | 647.0 | 530.3 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 21.37 | 55.46 | -31.99 | 57.40 | 0.5877 | 670.0 | 471.0 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 18.96 | 55.71 | -31.73 | 61.06 | 0.5706 | 559.0 | 501.2 | |
| 0.00 | 1.38 | 0.00 | 0.83 | 18.80 | 55.52 | -31.92 | 61.44 | 0.5720 | 754.0 | 617.4 | |
| 1.21 | 3.02 | 0.74 | 1.84 | 20.42 | 54.90 | -32.55 | 59.25 | 0.5888 | 836.5 | 688.9 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 20.82 | 54.76 | -32.68 | 58.72 | 0.5928 | 709.0 | 635.8 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 20.71 | 54.14 | -33.30 | 59.29 | 0.5996 | 825.0 | 657.8 | |
| 0.00 | 2.07 | 0.00 | 1.28 | 20.72 | 53.61 | -33.83 | 59.59 | 0.6061 | 829.0 | 559.2 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 22.01 | 52.91 | -34.53 | 58.08 | 0.6214 | 669.0 | 535.0 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 21.31 | 52.41 | -35.03 | 59.42 | 0.6235 | 704.0 | 558.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 20.95 | 52.12 | -35.33 | 60.12 | 0.6251 | 529.0 | 438.0 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 21.14 | 47.63 | -39.81 | 62.11 | 0.6780 | 620.0 | 502.3 | |
| 0.00 | 1.90 | 0.00 | 1.30 | 19.54 | 45.80 | -41.64 | 65.10 | 0.6927 | 668.0 | 491.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
