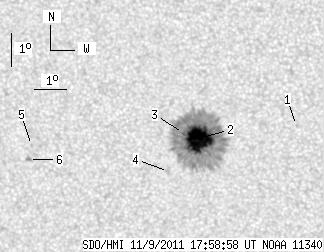

SDO HMI 2011-11-09 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.50 | 248.77 | 22.67 | 129.73 | -8.60 | 72.76 | -13.57 | 131.91 | 0.3131 | 1171.4 | 376.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.18 | -8.16 | 75.88 | -10.46 | 138.24 | 0.2709 | 715.0 | 743.5 | |
| 42.81 | 242.74 | 22.31 | 126.52 | -8.59 | 72.86 | -13.47 | 132.06 | 0.3117 | 1424.4 | 394.4 | |
| 0.69 | -2.00 | 0.36 | -2.00 | -8.44 | 72.41 | -13.93 | 130.76 | 0.3158 | 724.9 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -9.61 | 71.89 | -14.44 | 132.45 | 0.3348 | 609.0 | 384.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -8.89 | 67.63 | -18.71 | 123.72 | 0.3827 | -883.0 | -694.0 | |
| 0.00 | 2.24 | 0.00 | 1.20 | -9.32 | 67.51 | -18.83 | 124.49 | 0.3881 | -791.0 | -677.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
