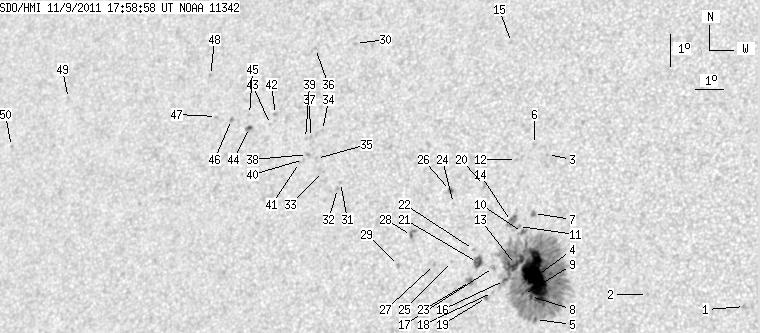

SDO HMI 2011-11-09 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.61 | 509.28 | 50.44 | 278.52 | 16.57 | 64.62 | -21.72 | 56.93 | 0.4240 | -659.4 | -407.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.33 | 0.00 | 1.21 | 15.35 | 72.39 | -13.95 | 48.33 | 0.3126 | -850.0 | -683.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 15.66 | 69.26 | -17.07 | 52.99 | 0.3556 | -706.0 | -533.7 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 19.88 | 65.50 | -20.84 | 49.50 | 0.4418 | -791.0 | -637.3 | |
| 65.47 | 424.50 | 35.50 | 230.26 | 16.14 | 65.56 | -20.78 | 56.86 | 0.4087 | -1332.9 | -479.4 | |
| 1.03 | -4.00 | 0.56 | -4.00 | 14.84 | 65.70 | -20.64 | 59.56 | 0.3969 | -643.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 20.18 | 65.01 | -21.32 | 49.56 | 0.4504 | -678.0 | -499.6 | |
| 0.00 | 3.01 | 0.00 | 1.65 | 18.06 | 65.27 | -21.07 | 53.26 | 0.4284 | -794.0 | -666.2 | |
| 0.86 | -4.00 | 0.47 | -4.00 | 15.53 | 65.46 | -20.88 | 58.29 | 0.4053 | -883.9 | 999999 | |
| 0.78 | -4.00 | 0.42 | -4.00 | 15.58 | 65.22 | -21.11 | 58.43 | 0.4090 | -601.1 | 999999 | |
| 1.29 | -4.00 | 0.71 | -4.00 | 17.47 | 64.97 | -21.37 | 54.78 | 0.4272 | -768.7 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.18 | 17.65 | 64.82 | -21.52 | 54.60 | 0.4307 | -845.0 | -637.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 19.71 | 64.47 | -21.87 | 51.08 | 0.4526 | -729.0 | -497.6 | |
| 12.15 | -4.00 | 6.63 | -4.00 | 16.49 | 64.86 | -21.48 | 56.92 | 0.4209 | -798.1 | 999999 | |
| 0.00 | 8.70 | 0.00 | 4.78 | 17.80 | 64.56 | -21.78 | 54.60 | 0.4352 | -851.0 | -601.8 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 23.35 | 63.71 | -22.63 | 45.78 | 0.4950 | -693.0 | -554.3 | |
| 1.55 | -4.00 | 0.85 | -4.00 | 16.00 | 64.55 | -21.79 | 58.29 | 0.4212 | -722.9 | 999999 | |
| 0.00 | 3.19 | 0.00 | 1.75 | 16.38 | 64.14 | -22.20 | 57.93 | 0.4297 | -616.0 | -481.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 15.62 | 64.19 | -22.15 | 59.46 | 0.4233 | -660.0 | -456.4 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 15.47 | 64.01 | -22.33 | 59.97 | 0.4247 | -814.0 | -703.7 | |
| 0.00 | 2.67 | 0.00 | 1.49 | 18.88 | 63.50 | -22.84 | 53.71 | 0.4575 | -767.0 | -572.6 | |
| 6.12 | 8.61 | 3.37 | 4.74 | 16.52 | 63.58 | -22.76 | 58.22 | 0.4381 | -789.9 | -521.3 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 16.91 | 63.40 | -22.94 | 57.62 | 0.4434 | -630.0 | -544.6 | |
| 0.78 | 4.57 | 0.43 | 2.51 | 15.94 | 63.42 | -22.92 | 59.57 | 0.4361 | -987.8 | -707.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 18.30 | 62.53 | -23.81 | 55.81 | 0.4653 | -596.0 | -364.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 16.53 | 62.70 | -23.63 | 59.07 | 0.4499 | -688.0 | -482.0 | |
| 0.86 | 1.90 | 0.48 | 1.06 | 18.70 | 62.37 | -23.97 | 55.24 | 0.4704 | -842.6 | -728.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 16.43 | 62.14 | -24.20 | 59.81 | 0.4567 | -812.0 | -612.3 | |
| 0.43 | 5.60 | 0.24 | 3.15 | 17.29 | 61.24 | -25.10 | 58.96 | 0.4747 | 932.0 | 543.9 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 16.37 | 60.92 | -25.42 | 61.00 | 0.4728 | -839.0 | -627.7 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 23.18 | 58.15 | -28.18 | 51.66 | 0.5557 | -721.0 | -490.2 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 18.85 | 58.50 | -27.84 | 58.45 | 0.5206 | 813.0 | 634.6 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 18.66 | 58.43 | -27.91 | 58.84 | 0.5203 | 879.0 | 737.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 19.17 | 57.84 | -28.50 | 58.43 | 0.5311 | 722.0 | 576.0 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 20.43 | 57.55 | -28.79 | 56.54 | 0.5430 | 774.0 | 643.4 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 19.56 | 57.51 | -28.83 | 58.02 | 0.5378 | 551.0 | 616.5 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 22.98 | 56.73 | -29.61 | 53.17 | 0.5706 | -705.0 | -594.7 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 20.20 | 57.16 | -29.17 | 57.22 | 0.5463 | 836.0 | 716.7 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 19.68 | 57.16 | -29.18 | 58.09 | 0.5429 | 934.0 | 761.5 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 20.17 | 56.99 | -29.35 | 57.41 | 0.5482 | 588.0 | 451.2 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 19.52 | 57.05 | -29.29 | 58.44 | 0.5433 | 754.0 | 576.2 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 19.42 | 56.92 | -29.41 | 58.70 | 0.5442 | 680.0 | 575.1 | |
| 0.00 | 1.72 | 0.00 | 1.04 | 20.88 | 55.74 | -30.60 | 57.20 | 0.5681 | 607.0 | 471.4 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 20.56 | 55.62 | -30.72 | 57.78 | 0.5675 | 592.0 | 453.5 | |
| 1.29 | 3.10 | 0.78 | 1.88 | 20.45 | 54.87 | -31.47 | 58.49 | 0.5759 | 799.4 | 695.1 | |
| 0.00 | 1.38 | 0.00 | 0.84 | 20.85 | 54.78 | -31.56 | 57.92 | 0.5795 | 789.0 | 582.4 | |
| 0.00 | 2.24 | 0.00 | 1.37 | 20.67 | 54.14 | -32.19 | 58.62 | 0.5861 | 866.0 | 571.2 | |
| 0.00 | 1.38 | 0.00 | 0.85 | 20.75 | 53.56 | -32.78 | 58.89 | 0.5936 | 726.0 | 631.9 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 22.02 | 53.01 | -33.33 | 57.32 | 0.6075 | 571.0 | 519.1 | |
| 0.00 | 1.46 | 0.00 | 0.97 | 21.11 | 47.65 | -38.69 | 61.63 | 0.6651 | 609.0 | 461.8 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 19.54 | 45.78 | -40.55 | 64.66 | 0.6802 | 702.0 | 546.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
