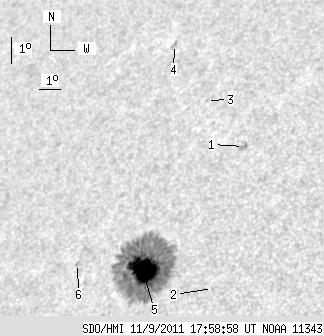

SDO HMI 2011-11-09 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.73 | 298.66 | 30.43 | 213.03 | 27.86 | 45.33 | -41.01 | 53.75 | 0.7219 | -1037.1 | -335.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.86 | 0.00 | 4.17 | 31.89 | 47.82 | -38.52 | 47.38 | 0.7210 | -672.0 | -585.5 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 27.18 | 48.57 | -37.77 | 52.84 | 0.6860 | -616.0 | -520.8 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 33.38 | 45.32 | -41.02 | 47.03 | 0.7514 | -470.0 | -398.3 | |
| 0.00 | 2.67 | 0.00 | 2.12 | 35.23 | 42.59 | -43.74 | 46.30 | 0.7835 | -644.0 | -512.1 | |
| 42.73 | 286.59 | 30.43 | 204.15 | 27.69 | 45.32 | -41.02 | 53.96 | 0.7211 | -1106.0 | -325.9 | |
| 0.00 | 2.24 | 0.00 | 1.67 | 27.76 | 42.31 | -44.03 | 55.29 | 0.7505 | -686.0 | -387.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
