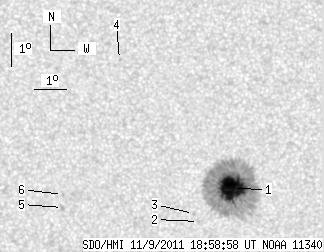

SDO HMI 2011-11-09 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.92 | 241.79 | 21.27 | 125.77 | -8.61 | 72.81 | -12.98 | 133.22 | 0.3060 | 1124.3 | 399.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.92 | 235.85 | 21.27 | 122.63 | -8.61 | 72.90 | -12.89 | 133.38 | 0.3048 | 1446.6 | 419.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -9.63 | 71.81 | -13.98 | 133.43 | 0.3294 | 730.0 | 493.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -9.39 | 71.66 | -14.12 | 132.59 | 0.3285 | 444.0 | 413.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -4.78 | 69.52 | -16.26 | 116.90 | 0.3143 | -708.0 | -610.9 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -9.28 | 67.56 | -18.22 | 125.27 | 0.3796 | -871.0 | -661.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -8.88 | 67.58 | -18.20 | 124.42 | 0.3758 | -827.0 | -642.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
