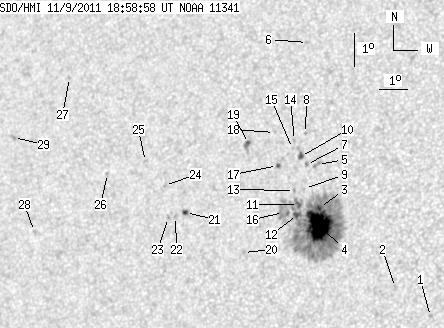

SDO HMI 2011-11-09 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.77 | 320.88 | 35.21 | 183.41 | 9.63 | 56.28 | -29.51 | 76.73 | 0.5008 | -829.8 | -377.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.89 | 6.76 | 60.83 | -24.96 | 81.52 | 0.4254 | -756.0 | -601.2 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 7.59 | 59.62 | -26.17 | 79.95 | 0.4458 | -846.0 | -588.2 | |
| 1.38 | 257.82 | 0.78 | 146.48 | 9.90 | 56.85 | -28.93 | 75.98 | 0.4932 | -780.4 | -449.1 | |
| 47.20 | -3.00 | 26.81 | -3.00 | 9.37 | 56.87 | -28.92 | 77.06 | 0.4915 | -1301.1 | 999999 | |
| 0.00 | 3.79 | 0.00 | 2.16 | 11.19 | 56.65 | -29.13 | 73.53 | 0.5001 | -607.0 | -475.8 | |
| 0.00 | 1.55 | 0.00 | 0.90 | 14.84 | 55.82 | -29.97 | 67.05 | 0.5264 | -674.0 | -539.9 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 11.17 | 56.27 | -29.52 | 73.71 | 0.5056 | -888.0 | -681.8 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 12.10 | 56.13 | -29.66 | 71.99 | 0.5108 | -588.0 | -512.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 10.46 | 56.28 | -29.51 | 75.11 | 0.5032 | -573.0 | -360.0 | |
| 3.10 | 4.74 | 1.78 | 2.73 | 11.41 | 56.03 | -29.75 | 73.36 | 0.5098 | -777.9 | -607.1 | |
| 2.24 | -3.00 | 1.28 | -3.00 | 9.97 | 56.12 | -29.67 | 76.11 | 0.5042 | -621.4 | 999999 | |
| 3.45 | -3.00 | 1.97 | -3.00 | 9.67 | 56.11 | -29.67 | 76.70 | 0.5035 | -612.8 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.89 | 10.39 | 55.94 | -29.85 | 75.37 | 0.5080 | -540.0 | -408.8 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 11.88 | 55.77 | -30.02 | 72.57 | 0.5152 | -649.0 | -529.8 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 11.64 | 55.73 | -30.06 | 73.05 | 0.5149 | -592.0 | -506.1 | |
| 0.00 | 18.52 | 0.00 | 10.65 | 9.72 | 55.62 | -30.16 | 76.78 | 0.5108 | -202.0 | -114.6 | |
| 1.21 | 1.98 | 0.70 | 1.15 | 11.11 | 55.26 | -30.52 | 74.23 | 0.5199 | -719.1 | -575.8 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 12.10 | 55.04 | -30.75 | 72.48 | 0.5264 | -496.0 | -411.7 | |
| 1.12 | 5.17 | 0.66 | 3.03 | 11.74 | 54.16 | -31.63 | 73.49 | 0.5376 | 816.3 | 759.7 | |
| 0.00 | 1.46 | 0.00 | 0.85 | 8.48 | 54.34 | -31.45 | 79.50 | 0.5269 | 643.0 | 497.8 | |
| 2.07 | 2.84 | 1.23 | 1.70 | 9.61 | 52.15 | -33.63 | 77.97 | 0.5605 | -882.2 | -687.3 | |
| 0.00 | 1.46 | 0.00 | 0.88 | 9.48 | 51.80 | -33.98 | 78.28 | 0.5652 | -721.0 | -557.6 | |
| 0.00 | 1.55 | 0.00 | 0.93 | 9.44 | 51.55 | -34.23 | 78.41 | 0.5687 | -625.0 | -515.7 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 10.39 | 51.29 | -34.49 | 76.82 | 0.5743 | -699.0 | -507.7 | |
| 0.00 | 1.90 | 0.00 | 1.16 | 11.08 | 50.50 | -35.28 | 75.86 | 0.5868 | 651.0 | 511.5 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 10.67 | 49.14 | -36.65 | 76.89 | 0.6046 | -610.0 | -520.5 | |
| 0.00 | 1.29 | 0.00 | 0.83 | 13.49 | 47.21 | -38.58 | 72.91 | 0.6367 | 619.0 | 485.7 | |
| 0.00 | 1.98 | 0.00 | 1.27 | 8.84 | 46.59 | -39.20 | 80.31 | 0.6358 | 622.0 | 413.9 | |
| 0.00 | 2.24 | 0.00 | 1.47 | 11.61 | 45.34 | -40.44 | 76.26 | 0.6565 | 818.0 | 683.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
