group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	386.17	2269.48	212.18	1244.77	19.06	105.66	20.43	309.98	0.4308	-481.6	-270.7

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-09 19:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

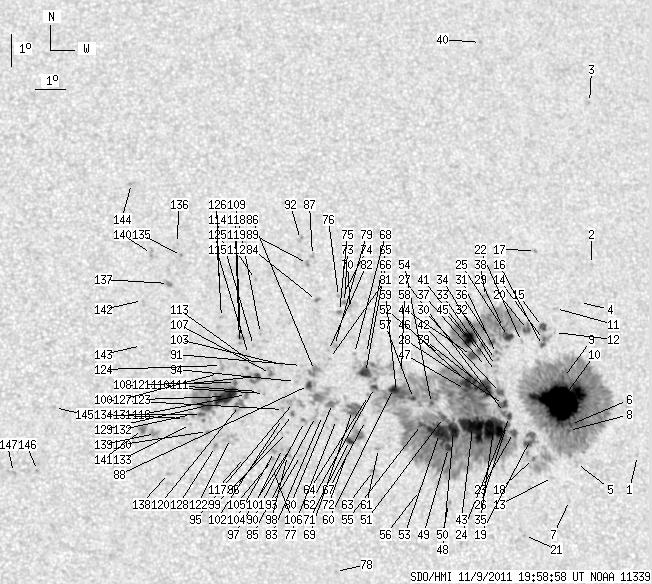

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.29	0.00	0.73	17.23	111.37	26.14	300.04	0.4880	-601.0	-467.4
2	0.00	1.03	0.00	0.60	23.18	110.82	25.58	310.77	0.5262	-533.0	-379.2
3	0.00	1.03	0.00	0.63	28.37	111.98	26.75	317.11	0.5841	-611.0	-562.7
4	0.00	0.78	0.00	0.45	22.00	110.16	24.92	309.54	0.5087	665.0	475.7
5	0.00	2.58	0.00	1.44	17.04	109.25	24.01	301.57	0.4586	-657.0	-497.7
6	1.81	645.38	1.01	361.71	18.24	109.21	23.98	303.90	0.4670	-1044.9	-388.7
7	0.00	0.60	0.00	0.33	15.92	108.86	23.63	299.71	0.4457	-672.0	-622.1
8	1.03	-6.00	0.58	-6.00	18.05	109.12	23.89	303.65	0.4644	-954.0	999999
9	0.52	-6.00	0.29	-6.00	19.69	109.19	23.96	306.57	0.4781	-569.2	999999
10	101.56	-6.00	56.92	-6.00	18.95	108.98	23.74	305.46	0.4695	-1525.3	999999
11	0.00	1.38	0.00	0.79	21.84	109.28	24.05	310.18	0.4971	-539.0	-389.0
12	0.00	1.12	0.00	0.63	21.09	109.11	23.88	309.10	0.4888	-275.0	-219.5
13	0.00	1.46	0.00	0.81	16.63	108.38	23.15	301.62	0.4442	707.0	468.9
14	0.52	19.21	0.29	10.86	20.88	108.70	23.46	309.20	0.4820	-315.2	-299.5
15	4.05	-14.00	2.29	-14.00	21.28	108.73	23.50	309.85	0.4859	-761.2	999999
16	1.90	-14.00	1.07	-14.00	20.69	108.63	23.40	308.95	0.4797	-609.0	999999
17	0.00	1.46	0.00	0.84	23.67	108.92	23.69	313.53	0.5095	-795.0	-616.6
18	0.43	-6.00	0.24	-6.00	17.23	107.82	22.58	303.38	0.4412	-992.0	999999
19	9.73	-6.00	5.38	-6.00	17.81	107.79	22.56	304.56	0.4454	-939.8	999999
20	3.88	203.55	2.18	113.62	21.20	108.20	22.96	310.31	0.4790	-683.1	-262.7
21	0.00	1.03	0.00	0.56	14.89	107.24	22.01	299.13	0.4163	-808.0	-638.1
22	0.00	1.81	0.00	1.02	20.84	107.93	22.70	309.98	0.4726	-652.0	-541.5
23	4.13	962.21	2.28	524.18	18.04	107.25	22.02	305.60	0.4402	-772.2	-486.2
24	2.93	-23.00	1.62	-23.00	18.53	107.18	21.95	306.63	0.4435	-900.6	999999
25	6.55	-20.00	3.67	-20.00	21.00	107.51	22.28	310.75	0.4691	-913.6	999999
26	3.10	-23.00	1.71	-23.00	18.26	107.04	21.81	306.26	0.4394	-818.0	999999
27	1.38	-23.00	0.76	-23.00	18.66	107.03	21.80	307.05	0.4426	-957.0	999999
28	5.94	-23.00	3.28	-23.00	18.90	107.03	21.80	307.51	0.4447	-900.5	999999
29	1.12	-20.00	0.63	-20.00	21.28	107.38	22.15	311.39	0.4702	-658.8	999999
30	3.88	-23.00	2.14	-23.00	19.27	106.98	21.75	308.27	0.4473	-811.2	999999
31	0.00	3.79	0.00	2.11	20.48	107.02	21.78	310.42	0.4586	-802.0	-739.2
32	0.00	2.41	0.00	1.34	20.30	106.96	21.72	310.17	0.4562	-809.0	-759.7
33	0.00	1.72	0.00	0.96	19.93	106.90	21.67	309.56	0.4522	-768.0	-636.8
34	0.00	1.72	0.00	0.96	20.11	106.93	21.70	309.87	0.4542	-676.0	-566.0
35	30.49	-23.00	16.74	-23.00	18.14	106.59	21.36	306.57	0.4327	-1242.4	999999
36	3.19	-20.00	1.78	-20.00	20.83	106.93	21.70	311.13	0.4608	-766.8	999999
37	0.00	2.33	0.00	1.29	20.09	106.62	21.39	310.20	0.4503	-721.0	-637.0
38	0.00	3.96	0.00	2.23	22.27	106.92	21.69	313.60	0.4742	526.0	578.4
39	15.76	-23.00	8.70	-23.00	19.44	106.46	21.23	309.20	0.4425	-1095.7	999999
40	0.00	1.38	0.00	0.83	30.45	108.42	23.19	323.42	0.5718	-566.0	-488.1
41	1.98	-20.00	1.10	-20.00	20.56	106.45	21.22	311.25	0.4526	-902.3	999999
42	2.24	-23.00	1.23	-23.00	19.66	106.19	20.95	309.95	0.4412	-806.9	999999
43	31.87	-23.00	17.42	-23.00	18.22	105.90	20.66	307.56	0.4247	-1390.8	999999
44	5.08	-20.00	2.81	-20.00	20.44	106.16	20.93	311.40	0.4481	-1050.5	999999
45	11.72	-20.00	6.50	-20.00	20.94	106.16	20.93	312.28	0.4529	-1193.0	999999
46	8.87	-23.00	4.88	-23.00	19.61	105.91	20.68	310.20	0.4373	-1012.6	999999
47	1.55	-23.00	0.85	-23.00	19.39	105.81	20.58	309.92	0.4342	-934.8	999999
48	13.70	-23.00	7.45	-23.00	18.14	105.25	20.02	308.22	0.4159	-1268.7	999999
49	3.79	-23.00	2.05	-23.00	17.62	105.03	19.79	307.47	0.4084	-1236.5	999999
50	0.00	2.67	0.00	1.44	15.92	104.84	19.61	304.08	0.3914	671.0	452.7
51	2.50	-23.00	1.36	-23.00	18.54	104.97	19.74	309.39	0.4161	-816.4	999999
52	0.00	5.69	0.00	3.13	20.46	105.11	19.88	312.80	0.4361	-600.0	-448.6
53	24.29	-23.00	13.18	-23.00	18.06	104.78	19.55	308.68	0.4092	-1339.6	999999
54	1.46	-23.00	0.80	-23.00	18.98	104.62	19.39	310.71	0.4160	-976.8	999999
55	3.01	-23.00	1.63	-23.00	18.34	104.22	18.98	310.02	0.4050	-1031.3	999999
56	0.00	1.38	0.00	0.74	16.33	103.94	18.70	306.19	0.3829	472.0	301.9
57	1.98	-23.00	1.08	-23.00	19.15	104.04	18.81	311.84	0.4107	-1072.6	999999
58	0.00	4.91	0.00	2.67	20.02	103.75	18.52	313.91	0.4160	-187.0	-129.4
59	1.72	-23.00	0.93	-23.00	19.37	103.51	18.28	313.06	0.4066	-435.1	999999
60	4.22	-23.00	2.29	-23.00	19.47	103.42	18.19	313.37	0.4065	573.0	999999
61	0.00	2.15	0.00	1.15	17.63	102.73	17.49	310.75	0.3798	-1055.0	-753.6
62	2.33	-23.00	1.26	-23.00	19.51	102.80	17.56	314.39	0.3998	550.9	999999
63	0.00	2.07	0.00	1.10	16.97	102.50	17.27	309.67	0.3704	-946.0	-724.8
64	0.00	2.07	0.00	1.11	19.27	102.57	17.34	314.28	0.3946	-767.0	-617.1
65	0.00	0.95	0.00	0.51	20.57	102.65	17.42	316.57	0.4095	696.0	561.7
66	9.13	-23.00	4.94	-23.00	19.98	102.55	17.32	315.66	0.4020	922.4	999999
67	0.00	1.12	0.00	0.60	18.50	102.39	17.16	313.05	0.3845	-770.0	-566.6
68	0.00	1.38	0.00	0.75	20.57	102.25	17.02	317.21	0.4052	796.0	603.2
69	0.00	17.75	0.00	9.51	18.82	102.00	16.76	314.31	0.3832	106.0	-241.8
70	0.00	2.84	0.00	1.55	21.98	102.29	17.06	319.58	0.4213	-802.0	-485.4
71	3.36	21.88	1.79	11.68	17.90	101.81	16.57	312.76	0.3713	745.4	-103.4
72	0.00	1.81	0.00	0.96	17.53	101.71	16.47	312.15	0.3664	66.0	103.3
73	0.00	1.98	0.00	1.08	22.17	102.11	16.88	320.18	0.4217	-1054.0	-818.8
74	0.00	1.03	0.00	0.57	22.45	102.11	16.88	320.64	0.4250	-869.0	-748.9
75	0.00	1.64	0.00	0.89	21.89	101.91	16.68	320.04	0.4164	-974.0	-881.3
76	0.00	1.29	0.00	0.71	22.36	101.93	16.70	320.78	0.4221	-675.0	-549.7
77	0.00	1.29	0.00	0.69	18.55	101.45	16.21	314.69	0.3740	651.0	536.0
78	0.00	1.12	0.00	0.59	13.92	101.03	15.79	304.73	0.3229	504.0	459.4
79	0.00	3.10	0.00	1.68	20.83	101.62	16.39	318.70	0.4013	776.0	709.5
80	0.00	7.58	0.00	4.05	19.04	101.36	16.13	315.81	0.3784	-276.0	-135.6
81	0.00	1.03	0.00	0.56	20.43	101.41	16.18	318.34	0.3945	696.0	538.4
82	0.00	1.03	0.00	0.56	20.68	101.41	16.17	318.80	0.3973	778.0	602.6
83	0.00	1.21	0.00	0.64	18.68	101.00	15.77	315.71	0.3703	575.0	438.6
84	1.12	2.07	0.61	1.12	22.25	101.19	15.95	321.82	0.4133	744.8	716.2
85	0.00	6.29	0.00	3.35	18.65	100.77	15.54	316.06	0.3674	721.0	578.7
86	0.00	13.44	0.00	7.21	20.07	100.88	15.65	318.59	0.3847	695.0	466.8
87	0.00	2.07	0.00	1.13	23.67	101.22	15.99	323.97	0.4308	691.0	545.8
88	3.36	28.51	1.80	15.24	19.61	100.64	15.40	318.16	0.3768	844.1	94.5
89	0.00	2.15	0.00	1.18	23.42	101.02	15.79	323.92	0.4259	866.0	694.4
90	0.00	3.01	0.00	1.60	18.50	100.40	15.17	316.43	0.3616	889.0	813.3
91	0.00	1.03	0.00	0.55	20.23	100.47	15.24	319.61	0.3822	627.0	451.9
92	0.00	3.01	0.00	1.66	24.18	100.88	15.65	325.28	0.4339	590.0	583.9
93	0.00	1.38	0.00	0.73	17.46	100.18	14.95	314.67	0.3475	721.0	548.5
94	0.00	1.03	0.00	0.55	19.74	100.22	14.99	319.15	0.3739	650.0	546.8
95	0.00	13.35	0.00	7.10	19.09	100.10	14.87	318.15	0.3650	403.0	675.0
96	0.52	1.98	0.27	1.05	18.72	100.03	14.80	317.55	0.3600	941.3	827.3
97	0.00	1.64	0.00	0.86	17.65	99.84	14.61	315.70	0.3457	761.0	646.8
98	0.00	2.50	0.00	1.32	17.47	99.76	14.53	315.46	0.3427	708.0	600.5
99	0.00	0.95	0.00	0.50	18.17	99.82	14.59	316.83	0.3514	805.0	610.4
100	0.00	2.15	0.00	1.14	18.88	99.76	14.52	318.38	0.3588	837.0	767.3
101	0.00	1.64	0.00	0.86	17.69	99.62	14.39	316.20	0.3435	813.0	753.9
102	0.00	1.64	0.00	0.87	18.61	99.70	14.47	317.94	0.3550	890.0	749.4
103	0.00	1.21	0.00	0.64	20.27	99.82	14.59	320.87	0.3760	885.0	727.4
104	0.00	1.72	0.00	0.91	17.60	99.36	14.12	316.52	0.3395	1051.0	945.5
105	0.00	1.64	0.00	0.86	17.35	99.27	14.04	316.16	0.3358	950.0	783.2
106	0.00	0.86	0.00	0.45	17.08	99.25	14.02	315.60	0.3324	786.0	715.0
107	2.07	10.34	1.10	5.50	20.00	99.43	14.20	321.10	0.3687	944.8	662.9
108	0.00	0.95	0.00	0.50	19.38	99.18	13.95	320.44	0.3587	916.0	701.5
109	0.00	0.86	0.00	0.46	21.24	99.23	13.99	323.67	0.3820	759.0	629.2
110	0.00	1.12	0.00	0.59	19.45	98.99	13.76	320.94	0.3575	811.0	711.3
111	3.62	16.02	1.92	8.51	19.91	99.00	13.77	321.77	0.3633	944.9	765.0
112	0.00	1.38	0.00	0.75	22.94	99.23	14.00	326.33	0.4036	872.0	664.6
113	0.00	1.81	0.00	0.96	20.32	98.91	13.68	322.68	0.3674	852.0	591.3
114	0.00	1.38	0.00	0.74	20.87	98.96	13.73	323.55	0.3749	923.0	648.8
115	0.00	1.38	0.00	0.73	20.60	98.77	13.54	323.44	0.3695	832.0	587.4
116	0.52	5.08	0.27	2.69	19.36	98.60	13.37	321.56	0.3524	972.0	772.7
117	0.00	1.46	0.00	0.77	17.43	98.38	13.15	318.13	0.3267	910.0	684.7
118	0.00	2.93	0.00	1.56	21.13	98.56	13.33	324.76	0.3743	938.0	787.8
119	0.00	1.21	0.00	0.64	20.94	98.51	13.28	324.55	0.3714	943.0	814.4
120	0.00	9.91	0.00	5.23	19.02	98.35	13.11	321.45	0.3456	752.0	832.2
121	1.72	106.13	0.91	55.88	19.74	98.27	13.04	322.92	0.3538	802.2	493.9
122	0.00	10.25	0.00	5.37	18.01	97.98	12.75	320.22	0.3294	583.0	725.0
123	21.79	-121.00	11.49	-121.00	19.31	97.92	12.68	322.88	0.3449	1193.9	999999
124	0.00	4.13	0.00	2.19	20.27	97.86	12.63	324.71	0.3567	666.0	657.1
125	0.00	1.38	0.00	0.74	21.76	97.99	12.76	326.90	0.3773	732.0	552.4
126	0.00	1.21	0.00	0.65	22.73	98.02	12.79	328.32	0.3904	819.0	587.2
127	0.00	1.03	0.00	0.55	20.02	97.75	12.52	324.52	0.3524	634.0	531.8
128	0.00	3.19	0.00	1.67	17.78	97.48	12.25	320.82	0.3212	957.0	805.3
129	10.25	-121.00	5.39	-121.00	19.04	97.32	12.08	323.67	0.3355	1201.9	999999
130	0.00	1.46	0.00	0.77	18.24	97.26	12.03	322.26	0.3247	1069.0	914.2
131	2.50	-121.00	1.31	-121.00	18.76	97.10	11.87	323.62	0.3299	1101.2	999999
132	0.00	2.50	0.00	1.31	18.77	96.78	11.55	324.36	0.3268	990.0	845.4
133	0.00	0.95	0.00	0.50	18.46	96.73	11.50	323.90	0.3223	899.0	728.9
134	0.00	2.41	0.00	1.26	18.65	96.55	11.32	324.67	0.3230	990.0	735.0
135	0.00	1.12	0.00	0.60	23.73	96.86	11.62	332.00	0.3945	833.0	713.2
136	0.00	0.52	0.00	0.28	24.11	96.76	11.53	332.68	0.3991	641.0	524.7
137	0.00	4.39	0.00	2.35	22.85	96.35	11.12	331.86	0.3785	1135.0	843.2
138	0.00	1.72	0.00	0.89	16.97	95.94	10.71	322.77	0.2950	946.0	722.0
139	0.00	6.46	0.00	3.36	18.20	95.60	10.37	326.12	0.3080	1236.0	876.0
140	0.00	3.27	0.00	1.76	23.80	95.87	10.64	334.10	0.3884	743.0	707.1
141	0.00	5.08	0.00	2.64	18.32	95.19	9.96	327.39	0.3061	1124.0	916.2
142	0.00	0.95	0.00	0.50	22.32	95.46	10.23	333.08	0.3644	699.0	525.7
143	0.00	0.34	0.00	0.18	20.92	95.33	10.09	331.39	0.3434	517.0	525.8
144	0.00	1.64	0.00	0.89	26.04	95.40	10.16	337.57	0.4174	812.0	689.9
145	0.00	0.95	0.00	0.49	19.02	92.44	7.21	336.12	0.2945	846.0	677.5
146	0.00	1.38	0.00	0.71	17.10	91.83	6.60	334.99	0.2610	1043.0	773.8
147	0.00	1.72	0.00	0.88	17.04	91.08	5.85	337.43	0.2550	863.0	720.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
