group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11342	96.13	500.89	52.02	272.33	16.64	64.48	-20.75	55.66	0.4119	-577.1	-391.0

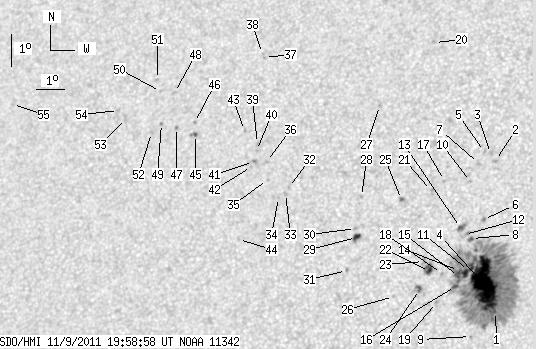

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-09 19:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.60	411.76	0.32	221.74	15.29	65.99	-19.25	56.87	0.3813	-1042.6	-480.6
2	0.00	1.72	0.00	0.94	19.90	65.47	-19.77	48.06	0.4293	-883.0	-695.8
3	0.00	1.72	0.00	0.95	20.12	65.27	-19.96	47.93	0.4337	-840.0	-704.1
4	72.10	-1.00	38.83	-1.00	16.10	65.55	-19.69	55.62	0.3939	-1324.3	999999
5	0.00	1.46	0.00	0.81	20.17	65.06	-20.17	48.10	0.4367	-766.0	-602.6
6	0.00	2.07	0.00	1.12	18.08	65.29	-19.94	51.80	0.4143	-873.0	-678.4
7	0.00	2.24	0.00	1.23	19.80	64.91	-20.32	48.99	0.4349	-716.0	-539.7
8	1.46	-1.00	0.80	-1.00	17.49	64.96	-20.27	53.41	0.4133	-729.7	999999
9	0.00	1.03	0.00	0.55	14.51	65.24	-19.99	59.55	0.3855	-698.0	-567.1
10	0.00	1.21	0.00	0.66	19.24	64.71	-20.52	50.29	0.4320	-882.0	-646.2
11	7.06	-1.00	3.82	-1.00	16.51	64.97	-20.26	55.43	0.4049	-865.5	999999
12	0.00	3.96	0.00	2.16	17.61	64.72	-20.52	53.48	0.4175	-667.0	-607.0
13	2.33	5.08	1.27	2.77	17.82	64.56	-20.67	53.25	0.4213	-762.2	-662.3
14	0.43	-1.00	0.23	-1.00	16.51	64.64	-20.59	55.84	0.4092	-698.0	999999
15	0.26	-1.00	0.14	-1.00	16.32	64.66	-20.57	56.21	0.4074	-727.7	999999
16	1.90	-1.00	1.03	-1.00	16.02	64.60	-20.63	56.94	0.4059	-744.8	999999
17	0.00	1.21	0.00	0.67	19.25	63.84	-21.40	51.36	0.4429	-727.0	-593.1
18	0.00	1.12	0.00	0.61	16.40	64.09	-21.14	56.71	0.4157	-630.0	-580.8
19	0.00	1.12	0.00	0.61	15.52	64.03	-21.21	58.67	0.4098	-898.0	-684.2
20	0.00	1.29	0.00	0.74	23.54	62.81	-22.42	45.23	0.4946	-560.0	-505.2
21	0.00	1.55	0.00	0.86	18.93	63.44	-21.79	52.42	0.4450	-720.0	-606.7
22	2.50	7.15	1.36	3.90	16.45	63.69	-21.54	57.05	0.4215	-916.3	-740.8
23	0.00	3.45	0.00	1.89	16.75	63.45	-21.78	56.70	0.4269	-593.0	-398.0
24	2.41	4.65	1.32	2.54	15.90	63.42	-21.81	58.51	0.4209	-789.8	-484.1
25	0.00	1.81	0.00	1.00	18.63	62.46	-22.77	54.09	0.4547	-957.0	-796.5
26	0.00	0.95	0.00	0.52	15.67	62.58	-22.65	59.86	0.4306	769.0	643.6
27	0.00	1.29	0.00	0.73	21.52	61.25	-23.98	50.27	0.4937	-861.0	-582.9
28	0.00	1.29	0.00	0.73	18.69	61.09	-24.14	55.42	0.4726	745.0	510.5
29	3.62	6.72	2.02	3.75	17.43	61.10	-24.13	57.77	0.4630	986.0	626.5
30	0.00	1.55	0.00	0.87	17.71	61.03	-24.20	57.32	0.4659	754.0	546.2
31	0.00	1.12	0.00	0.62	16.42	60.90	-24.33	59.94	0.4586	-788.0	-602.4
32	0.00	1.03	0.00	0.59	18.91	58.52	-26.72	57.42	0.5068	812.0	554.8
33	0.00	1.55	0.00	0.89	18.72	58.44	-26.79	57.81	0.5064	865.0	670.1
34	0.00	0.78	0.00	0.45	18.59	58.22	-27.01	58.23	0.5084	708.0	588.7
35	0.00	1.21	0.00	0.70	19.13	57.73	-27.50	57.68	0.5182	819.0	583.4
36	0.00	1.46	0.00	0.85	19.69	57.60	-27.64	56.85	0.5238	849.0	686.8
37	0.00	0.60	0.00	0.36	22.92	56.85	-28.38	52.23	0.5560	-656.0	-574.0
38	0.00	0.52	0.00	0.31	23.04	56.75	-28.48	52.13	0.5581	-687.0	-522.7
39	0.00	1.64	0.00	0.96	20.23	57.17	-28.06	56.28	0.5328	829.0	689.2
40	0.00	0.86	0.00	0.50	20.02	57.18	-28.06	56.64	0.5312	730.0	592.2
41	0.00	2.58	0.00	1.51	19.67	57.14	-28.10	57.25	0.5294	909.0	688.3
42	0.00	0.78	0.00	0.45	19.52	57.09	-28.14	57.54	0.5289	758.0	630.7
43	0.00	1.46	0.00	0.86	20.62	56.62	-28.61	56.08	0.5422	650.0	503.2
44	0.00	1.29	0.00	0.75	17.27	57.03	-28.20	61.51	0.5155	793.0	596.1
45	1.46	3.19	0.88	1.91	20.45	54.87	-30.36	57.71	0.5624	844.9	630.9
46	0.00	1.12	0.00	0.67	20.82	54.75	-30.48	57.20	0.5662	713.0	528.2
47	0.00	1.12	0.00	0.68	20.64	54.13	-31.10	57.93	0.5727	823.0	716.4
48	0.00	1.46	0.00	0.89	21.73	53.80	-31.44	56.47	0.5835	640.0	542.0
49	0.00	0.86	0.00	0.52	20.75	53.54	-31.69	58.16	0.5804	679.0	613.0
50	0.00	1.12	0.00	0.69	21.74	53.27	-31.97	56.81	0.5898	623.0	557.4
51	0.00	1.03	0.00	0.64	22.11	53.06	-32.17	56.39	0.5946	583.0	493.1
52	0.00	1.29	0.00	0.79	20.46	53.24	-31.99	58.82	0.5824	734.0	477.8
53	0.00	2.67	0.00	1.65	20.86	52.16	-33.07	58.90	0.5978	528.0	357.2
54	0.00	1.72	0.00	1.07	21.10	51.83	-33.40	58.74	0.6030	585.0	413.0
55	0.00	1.03	0.00	0.67	21.15	47.67	-37.56	61.02	0.6523	599.0	417.6

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
