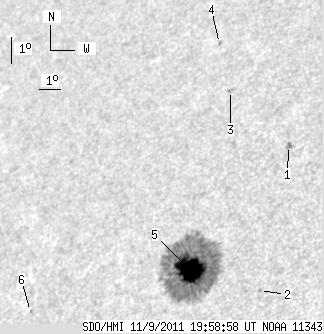

SDO HMI 2011-11-09 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.30 | 308.05 | 29.66 | 216.37 | 27.82 | 45.30 | -39.93 | 53.22 | 0.7111 | -1035.7 | -339.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.01 | 0.00 | 2.12 | 31.92 | 47.72 | -37.52 | 46.72 | 0.7123 | -648.0 | -649.0 | |
| 0.00 | 1.38 | 0.00 | 0.92 | 27.12 | 48.54 | -36.69 | 52.28 | 0.6747 | -724.0 | -561.9 | |
| 0.00 | 2.33 | 0.00 | 1.75 | 33.69 | 44.13 | -41.11 | 46.71 | 0.7539 | -466.0 | -387.1 | |
| 0.00 | 1.81 | 0.00 | 1.41 | 35.28 | 42.61 | -42.62 | 45.69 | 0.7749 | -562.0 | -416.8 | |
| 42.30 | 298.66 | 29.66 | 209.51 | 27.69 | 45.31 | -39.92 | 53.38 | 0.7103 | -1149.4 | -336.6 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 26.06 | 38.80 | -46.43 | 58.38 | 0.7666 | 591.0 | 458.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
