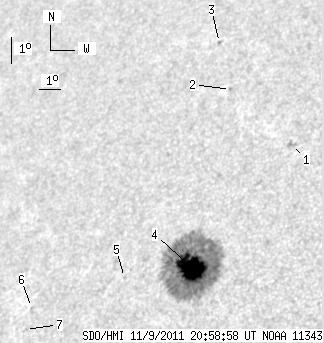

SDO HMI 2011-11-09 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.49 | 308.42 | 31.68 | 215.07 | 27.82 | 45.29 | -39.39 | 52.93 | 0.7058 | -988.3 | -331.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.74 | 0.00 | 3.31 | 31.91 | 47.79 | -36.89 | 46.35 | 0.7067 | -770.0 | -584.3 | |
| 0.00 | 1.21 | 0.00 | 0.90 | 33.67 | 44.10 | -40.58 | 46.44 | 0.7494 | -563.0 | -484.1 | |
| 0.00 | 1.21 | 0.00 | 0.93 | 35.26 | 42.61 | -42.07 | 45.42 | 0.7705 | -614.0 | -459.2 | |
| 45.49 | 298.50 | 31.68 | 207.87 | 27.71 | 45.32 | -39.36 | 53.05 | 0.7049 | -1131.4 | -331.4 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 27.28 | 42.54 | -42.14 | 55.02 | 0.7301 | -609.0 | -424.8 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 26.15 | 38.78 | -45.90 | 58.07 | 0.7619 | 571.0 | 485.3 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 25.44 | 38.85 | -45.83 | 58.93 | 0.7586 | 591.0 | 406.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
