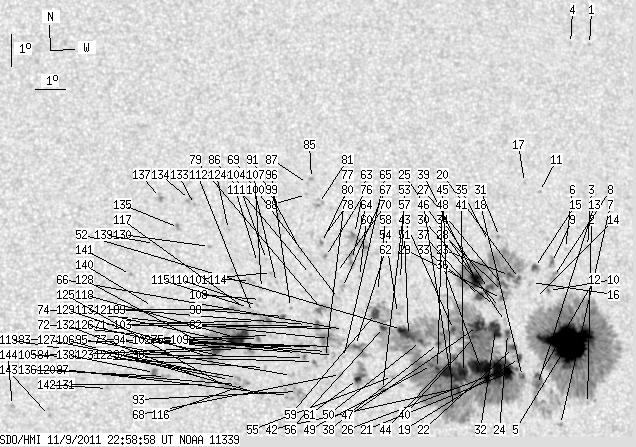

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	378.26	2240.08	210.29	1242.63	19.13	105.63	22.05	308.08	0.4512	-443.1	-286.1

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-09 22:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.78	0.00	0.48	28.36	111.84	28.27	315.69	0.5989	-747.0	-627.4
2	0.00	1.12	0.00	0.63	17.08	109.35	25.77	300.09	0.4823	1.0	-38.9
3	0.00	1.21	0.00	0.70	21.92	110.19	26.62	307.78	0.5280	820.0	686.0
4	0.00	1.38	0.00	0.85	28.41	111.13	27.56	316.41	0.5924	-658.0	-517.9
5	108.82	1594.17	61.80	889.00	18.96	108.98	25.41	303.87	0.4907	-1381.8	-449.6
6	0.00	0.86	0.00	0.50	21.88	109.40	25.82	308.46	0.5183	-478.0	-305.3
7	0.00	2.15	0.00	1.20	16.46	108.33	24.76	299.79	0.4647	681.0	461.3
8	0.00	5.77	0.00	3.31	21.02	108.81	25.24	307.61	0.5044	-683.0	-563.8
9	0.00	5.77	0.00	3.32	21.45	108.82	25.25	308.33	0.5081	-777.0	-600.4
10	0.78	3.96	0.44	2.26	20.59	108.56	24.99	307.13	0.4980	-425.0	-370.1
11	0.00	1.21	0.00	0.70	23.69	108.84	25.26	311.90	0.5271	-789.0	-633.6
12	3.53	-5.00	1.98	-5.00	17.95	107.79	24.21	303.14	0.4679	-869.9	999999
13	2.76	-5.00	1.54	-5.00	17.70	107.72	24.14	302.75	0.4652	-1014.4	999999
14	0.00	0.69	0.00	0.39	20.35	108.07	24.49	307.22	0.4901	-549.0	-476.2
15	3.53	5.69	2.02	3.25	21.31	108.20	24.62	308.72	0.4996	-621.1	-584.7
16	0.00	2.24	0.00	1.27	20.85	108.01	24.44	308.13	0.4935	-631.0	-522.2
17	0.00	1.03	0.00	0.60	23.99	108.36	24.78	312.85	0.5245	-721.0	-597.2
18	2.24	-5.00	1.25	-5.00	17.96	107.24	23.67	303.71	0.4610	-772.8	999999
19	3.27	-5.00	1.83	-5.00	18.51	107.22	23.65	304.77	0.4650	-901.6	999999
20	1.55	207.56	0.88	117.08	20.98	107.62	24.04	308.77	0.4899	-702.6	-306.3
21	1.29	-5.00	0.72	-5.00	18.18	107.07	23.50	304.30	0.4604	-736.5	999999
22	3.45	-5.00	1.93	-5.00	18.86	107.07	23.49	305.57	0.4657	-881.0	999999
23	3.10	-20.00	1.76	-20.00	21.09	107.29	23.71	309.30	0.4868	-890.4	999999
24	3.62	-5.00	2.03	-5.00	19.29	106.93	23.35	306.52	0.4675	-846.5	999999
25	0.00	2.41	0.00	1.35	19.66	106.92	23.34	307.20	0.4704	-531.0	-489.9
26	36.27	-5.00	20.14	-5.00	18.16	106.59	23.02	304.76	0.4541	-1144.8	999999
27	4.83	-20.00	2.72	-20.00	20.81	107.00	23.42	309.14	0.4811	-748.5	999999
28	0.86	-20.00	0.49	-20.00	20.59	106.96	23.39	308.81	0.4788	-785.8	999999
29	1.64	-20.00	0.92	-20.00	20.38	106.89	23.32	308.50	0.4761	-874.0	999999
30	0.00	2.76	0.00	1.55	20.10	106.81	23.24	308.10	0.4728	-830.0	-697.8
31	0.00	1.81	0.00	1.03	22.31	107.15	23.58	311.50	0.4960	797.0	610.0
32	13.70	-5.00	7.65	-5.00	19.42	106.54	22.96	307.18	0.4637	-1036.5	999999
33	0.00	2.33	0.00	1.30	20.17	106.62	23.04	308.43	0.4710	-935.0	-795.4
34	5.51	-20.00	3.10	-20.00	20.70	106.49	22.92	309.50	0.4741	-742.1	999999
35	0.00	1.12	0.00	0.64	22.16	106.74	23.16	311.71	0.4900	679.0	479.5
36	30.07	-5.00	16.62	-5.00	18.21	105.89	22.31	305.62	0.4455	-1343.5	999999
37	5.17	-20.00	2.89	-20.00	20.46	106.15	22.57	309.48	0.4678	-1021.8	999999
38	14.13	-5.00	7.86	-5.00	19.53	105.94	22.36	308.05	0.4573	-1036.7	999999
39	12.49	-20.00	7.01	-20.00	20.96	106.12	22.55	310.38	0.4720	-1146.4	999999
40	3.53	-5.00	1.96	-5.00	19.23	105.79	22.22	307.65	0.4528	367.5	999999
41	11.37	-5.00	6.26	-5.00	18.13	105.27	21.69	306.17	0.4370	-1221.7	999999
42	6.29	-5.00	3.45	-5.00	17.64	104.97	21.40	305.56	0.4292	-1237.0	999999
43	1.12	-5.00	0.62	-5.00	19.46	105.11	21.54	308.88	0.4465	205.8	999999
44	1.98	-5.00	1.09	-5.00	18.59	104.99	21.42	307.39	0.4375	-772.1	999999
45	0.86	-5.00	0.47	-5.00	17.10	104.77	21.20	304.69	0.4221	-915.8	999999
46	16.89	-5.00	9.26	-5.00	18.08	104.83	21.25	306.59	0.4309	-1333.9	999999
47	1.64	-5.00	0.90	-5.00	19.04	104.55	20.97	308.78	0.4359	-943.6	999999
48	0.95	-5.00	0.52	-5.00	18.27	104.42	20.84	307.46	0.4274	-1154.5	999999
49	1.98	-5.00	1.08	-5.00	18.36	104.23	20.65	307.88	0.4259	-1024.8	999999
50	2.33	-5.00	1.27	-5.00	19.11	103.95	20.38	309.67	0.4293	-1052.6	999999
51	8.44	-5.00	4.62	-5.00	19.30	103.58	20.00	310.53	0.4265	-715.2	999999
52	3.96	-5.00	2.17	-5.00	19.49	103.37	19.79	311.16	0.4258	455.9	999999
53	0.00	1.12	0.00	0.62	21.04	103.54	19.96	313.74	0.4430	-608.0	-325.1
54	0.00	1.55	0.00	0.85	19.99	103.30	19.72	312.18	0.4298	218.0	171.9
55	0.00	1.81	0.00	0.98	18.05	102.89	19.32	309.00	0.4065	-971.0	-711.4
56	3.02	-5.00	1.64	-5.00	19.57	102.77	19.20	312.11	0.4195	514.3	999999
57	0.00	2.93	0.00	1.58	17.66	102.52	18.94	308.72	0.3982	-923.0	-752.6
58	0.00	0.86	0.00	0.47	20.68	102.72	19.14	314.24	0.4300	548.0	447.1
59	7.07	-5.00	3.86	-5.00	20.00	102.56	18.99	313.23	0.4214	893.5	999999
60	0.00	1.03	0.00	0.57	21.16	102.17	18.60	315.86	0.4289	712.0	592.7
61	2.50	25.42	1.34	13.69	17.98	101.73	18.16	310.50	0.3915	697.0	51.2
62	1.55	17.23	0.84	9.31	19.03	101.78	18.20	312.52	0.4024	-465.7	-170.4
63	0.43	23.35	0.24	12.87	22.51	102.19	18.61	318.12	0.4435	-765.4	-546.7
64	0.00	8.87	0.00	4.87	21.70	101.97	18.40	317.08	0.4325	-847.0	-755.4
65	0.00	0.86	0.00	0.46	18.67	101.34	17.77	312.46	0.3936	455.0	368.7
66	0.00	0.78	0.00	0.42	19.53	101.44	17.86	313.99	0.4036	-509.0	-354.2
67	0.00	2.76	0.00	1.50	20.83	101.56	17.99	316.19	0.4187	844.0	706.4
68	0.00	1.64	0.00	0.88	18.15	101.19	17.61	311.65	0.3865	582.0	437.7
69	0.00	1.29	0.00	0.70	20.49	101.39	17.81	315.85	0.4131	679.0	555.1
70	0.00	0.69	0.00	0.38	21.30	101.42	17.84	317.23	0.4222	624.0	460.2
71	0.00	3.02	0.00	1.63	19.56	101.18	17.60	314.45	0.4009	-188.0	-166.4
72	0.00	2.15	0.00	1.16	18.73	101.02	17.45	313.09	0.3905	493.0	492.3
73	0.00	1.64	0.00	0.88	19.01	101.05	17.48	313.59	0.3937	300.0	80.2
74	0.00	19.04	0.00	10.26	19.26	100.95	17.37	314.23	0.3951	-204.0	-6.1
75	0.00	2.84	0.00	1.53	18.86	100.81	17.23	313.68	0.3893	568.0	542.0
76	0.00	1.81	0.00	0.99	21.81	101.12	17.54	318.56	0.4246	745.0	500.4
77	0.00	1.12	0.00	0.60	18.68	100.75	17.18	313.40	0.3867	648.0	587.2
78	0.00	1.12	0.00	0.61	22.43	101.13	17.55	319.57	0.4317	578.0	462.6
79	0.00	11.37	0.00	6.15	20.16	100.82	17.24	316.13	0.4032	525.0	477.0
80	0.00	2.07	0.00	1.13	22.25	101.04	17.46	319.41	0.4287	840.0	719.5
81	0.00	5.69	0.00	3.14	23.47	101.10	17.52	321.27	0.4433	583.0	572.6
82	2.07	5.95	1.11	3.20	19.64	100.56	16.98	315.56	0.3947	682.8	525.0
83	0.00	1.90	0.00	1.02	19.02	100.43	16.85	314.60	0.3866	779.0	667.1
84	0.34	2.58	0.18	1.38	18.56	100.35	16.77	313.81	0.3808	996.0	755.7
85	0.00	1.81	0.00	1.00	24.27	100.97	17.40	322.66	0.4513	688.0	585.2
86	0.00	1.03	0.00	0.56	21.25	100.55	16.97	318.51	0.4124	693.0	477.3
87	0.00	1.72	0.00	0.95	24.11	100.81	17.24	322.67	0.4480	625.0	470.8
88	0.00	0.95	0.00	0.52	23.77	100.73	17.16	322.28	0.4431	743.0	602.4
89	0.00	0.95	0.00	0.51	19.70	100.24	16.66	316.21	0.3918	842.0	678.5
90	0.00	1.81	0.00	0.97	18.69	100.07	16.49	314.53	0.3789	970.0	807.6
91	0.00	0.95	0.00	0.52	21.98	100.33	16.76	320.07	0.4184	878.0	607.0
92	0.00	2.93	0.00	1.57	19.06	99.97	16.40	315.42	0.3818	961.0	752.7
93	0.00	15.25	0.00	8.10	17.65	99.74	16.16	312.95	0.3640	752.0	641.5
94	0.00	2.93	0.00	1.57	18.85	99.82	16.25	315.26	0.3778	749.0	713.1
95	0.00	2.24	0.00	1.19	18.14	99.59	16.01	314.23	0.3675	832.0	630.9
96	0.00	1.03	0.00	0.56	20.24	99.77	16.19	317.98	0.3926	732.0	630.7
97	0.00	6.29	0.00	3.34	17.53	99.44	15.86	313.21	0.3592	681.0	739.0
98	1.90	2.33	1.02	1.25	19.96	99.51	15.93	317.92	0.3867	921.3	947.0
99	0.00	3.02	0.00	1.65	23.12	99.70	16.13	322.93	0.4256	747.0	598.0
100	0.00	1.12	0.00	0.60	21.02	99.39	15.82	320.02	0.3977	631.0	523.3
101	0.00	1.38	0.00	0.74	21.34	99.26	15.69	320.78	0.4000	781.0	624.7
102	0.00	0.78	0.00	0.41	19.38	99.02	15.45	317.68	0.3748	825.0	673.6
103	2.93	10.77	1.57	5.76	19.85	99.01	15.43	318.58	0.3800	892.7	863.8
104	0.00	0.52	0.00	0.28	21.74	99.14	15.56	321.68	0.4037	438.0	327.7
105	0.00	1.55	0.00	0.82	18.40	98.74	15.16	316.26	0.3605	716.0	561.3
106	0.00	1.03	0.00	0.55	17.58	98.60	15.02	314.79	0.3498	863.0	711.2
107	0.00	1.98	0.00	1.07	20.84	98.88	15.30	320.60	0.3903	791.0	644.4
108	0.00	1.38	0.00	0.74	20.50	98.81	15.23	320.12	0.3855	821.0	618.9
109	2.07	2.93	1.10	1.56	19.30	98.63	15.05	318.23	0.3695	856.9	753.2
110	0.00	0.78	0.00	0.42	20.32	98.69	15.12	320.00	0.3821	822.0	652.1
111	0.00	0.78	0.00	0.42	21.66	98.83	15.26	322.06	0.3995	770.0	589.7
112	0.00	1.90	0.00	1.01	20.10	98.51	14.93	319.95	0.3777	819.0	700.5
113	3.62	9.39	1.92	4.99	19.05	98.34	14.77	318.28	0.3636	962.6	732.2
114	0.00	3.96	0.00	2.13	21.10	98.54	14.97	321.64	0.3899	833.0	700.5
115	0.00	1.38	0.00	0.74	20.26	98.39	14.82	320.44	0.3784	886.0	670.5
116	0.00	5.08	0.00	2.68	17.89	98.08	14.50	316.43	0.3473	718.0	684.4
117	0.00	1.21	0.00	0.64	20.26	98.23	14.65	320.75	0.3767	714.0	645.1
118	18.96	98.83	10.07	52.39	19.31	97.98	14.40	319.46	0.3627	1163.1	515.5
119	0.00	3.10	0.00	1.64	18.11	97.84	14.26	317.34	0.3471	1001.0	864.2
120	0.00	1.98	0.00	1.04	17.89	97.79	14.21	317.00	0.3441	924.0	780.3
121	0.00	5.00	0.00	2.67	20.21	97.90	14.32	321.27	0.3726	832.0	810.9
122	0.00	1.21	0.00	0.64	18.05	97.58	14.00	317.74	0.3436	944.0	702.5
123	1.38	-118.00	0.73	-118.00	19.06	97.63	14.05	319.66	0.3561	1115.0	999999
124	0.00	1.21	0.00	0.65	22.70	97.98	14.41	325.25	0.4044	769.0	648.0
125	0.00	3.53	0.00	1.86	17.84	97.43	13.86	317.58	0.3395	953.0	842.1
126	0.00	1.12	0.00	0.59	18.76	97.41	13.83	319.49	0.3501	868.0	720.1
127	0.00	1.21	0.00	0.64	18.21	97.20	13.63	318.81	0.3413	899.0	833.6
128	5.69	-118.00	3.01	-118.00	18.95	97.20	13.62	320.28	0.3502	1217.4	999999
129	0.78	-118.00	0.41	-118.00	18.73	97.02	13.45	320.23	0.3457	1184.8	999999
130	0.00	1.38	0.00	0.74	22.18	97.30	13.72	325.70	0.3915	840.0	694.8
131	0.00	2.50	0.00	1.31	17.91	96.83	13.25	318.96	0.3337	883.0	791.5
132	0.00	0.95	0.00	0.50	18.09	96.71	13.14	319.58	0.3347	871.0	766.9
133	0.00	0.95	0.00	0.51	23.51	96.94	13.36	328.35	0.4056	826.0	607.5
134	0.00	3.27	0.00	1.77	23.67	96.79	13.21	328.85	0.4065	643.0	624.4
135	0.00	2.15	0.00	1.16	22.79	96.34	12.76	328.47	0.3911	1010.0	856.0
136	0.00	2.76	0.00	1.44	18.17	95.53	11.96	322.29	0.3233	949.0	853.9
137	0.00	3.45	0.00	1.86	23.74	95.83	12.26	330.78	0.3998	861.0	718.2
138	0.00	4.83	0.00	2.52	18.30	95.19	11.62	323.33	0.3215	1132.0	904.4
139	0.00	1.29	0.00	0.69	22.30	95.50	11.93	329.42	0.3775	783.0	591.8
140	0.00	0.52	0.00	0.27	20.33	95.28	11.70	326.83	0.3491	719.0	588.3
141	0.00	1.38	0.00	0.73	21.34	94.64	11.06	329.83	0.3573	896.0	644.1
142	0.00	2.07	0.00	1.07	17.82	93.67	10.09	326.12	0.3006	673.0	569.4
143	0.00	0.69	0.00	0.35	17.01	91.80	8.22	329.74	0.2727	964.0	736.8
144	0.00	1.03	0.00	0.53	17.33	90.65	7.08	333.86	0.2682	888.0	718.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
