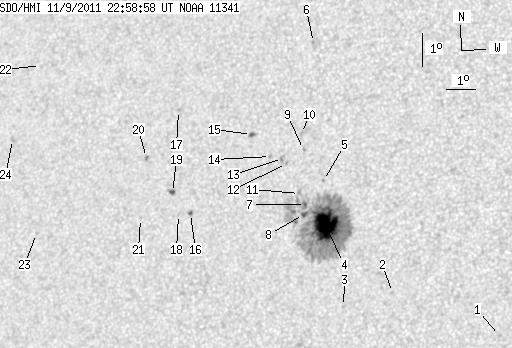

SDO HMI 2011-11-09 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.26 | 316.66 | 28.68 | 177.19 | 9.54 | 56.45 | -27.13 | 76.03 | 0.4652 | -849.6 | -416.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.64 | 6.22 | 62.76 | -20.81 | 81.68 | 0.3585 | -784.0 | -590.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 7.42 | 59.24 | -24.34 | 79.75 | 0.4171 | -804.0 | -608.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 6.96 | 57.64 | -25.93 | 81.27 | 0.4410 | -734.0 | -518.3 | |
| 43.08 | 283.39 | 23.98 | 157.98 | 9.36 | 56.87 | -26.71 | 76.23 | 0.4585 | -1352.3 | -442.8 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 10.70 | 56.68 | -26.89 | 73.46 | 0.4656 | -535.0 | -460.7 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 14.83 | 55.85 | -27.72 | 65.65 | 0.4956 | -785.0 | -699.6 | |
| 1.12 | -4.00 | 0.63 | -4.00 | 9.97 | 56.14 | -27.44 | 75.24 | 0.4712 | -630.8 | 999999 | |
| 1.81 | -4.00 | 1.01 | -4.00 | 9.67 | 56.10 | -27.48 | 75.89 | 0.4710 | -650.9 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 11.61 | 55.91 | -27.67 | 71.97 | 0.4803 | -813.0 | -641.0 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 12.08 | 55.79 | -27.79 | 71.07 | 0.4839 | -649.0 | -573.0 | |
| 0.00 | 2.24 | 0.00 | 1.26 | 10.29 | 55.90 | -27.67 | 74.67 | 0.4757 | -571.0 | -482.7 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 11.17 | 55.37 | -28.21 | 73.11 | 0.4866 | -724.0 | -505.0 | |
| 0.00 | 3.27 | 0.00 | 1.86 | 11.32 | 55.22 | -28.36 | 72.89 | 0.4893 | -702.0 | -603.8 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 11.37 | 54.80 | -28.78 | 72.99 | 0.4956 | -552.0 | -396.4 | |
| 1.72 | 2.67 | 0.99 | 1.53 | 12.01 | 54.06 | -29.51 | 72.08 | 0.5085 | 942.5 | 731.2 | |
| 1.46 | 1.72 | 0.85 | 1.00 | 9.58 | 52.19 | -31.38 | 77.39 | 0.5283 | -825.5 | -846.0 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 12.65 | 51.39 | -32.18 | 72.06 | 0.5484 | 840.0 | 680.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 9.54 | 51.77 | -31.80 | 77.59 | 0.5343 | -702.0 | -536.5 | |
| 2.07 | 3.02 | 1.22 | 1.77 | 10.19 | 51.49 | -32.09 | 76.47 | 0.5399 | -842.7 | -612.0 | |
| 0.00 | 1.64 | 0.00 | 0.97 | 11.20 | 50.43 | -33.14 | 74.98 | 0.5575 | 802.0 | 710.9 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 9.37 | 50.43 | -33.14 | 78.24 | 0.5532 | -564.0 | -439.1 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 13.82 | 46.06 | -37.52 | 72.05 | 0.6240 | 509.0 | 517.1 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 8.80 | 46.67 | -36.90 | 80.01 | 0.6048 | 649.0 | 425.9 | |
| 0.00 | 1.90 | 0.00 | 1.20 | 11.57 | 45.37 | -38.20 | 75.80 | 0.6273 | 740.0 | 645.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
