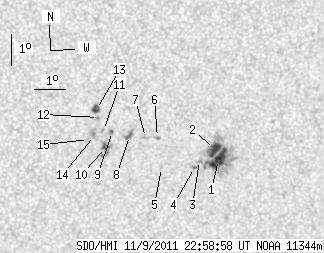

SDO HMI 2011-11-09 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.97 | 114.95 | 20.61 | 64.07 | -17.68 | 100.95 | 17.37 | 218.33 | 0.4598 | 267.4 | 99.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.32 | 75.91 | 9.73 | 42.61 | -18.00 | 102.03 | 18.46 | 219.65 | 0.4739 | 971.1 | 410.4 | |
| 10.43 | -1.00 | 5.84 | -1.00 | -17.68 | 101.87 | 18.29 | 219.86 | 0.4685 | 1140.3 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.50 | -18.02 | 101.41 | 17.83 | 218.67 | 0.4680 | 769.0 | 661.5 | |
| 0.00 | 2.76 | 0.00 | 1.54 | -18.24 | 101.27 | 17.69 | 218.15 | 0.4693 | 765.0 | 620.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -18.22 | 100.19 | 16.61 | 216.46 | 0.4588 | 765.0 | 574.5 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -17.26 | 99.96 | 16.39 | 217.44 | 0.4451 | -797.0 | -603.6 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -17.25 | 99.58 | 16.00 | 216.80 | 0.4414 | -515.0 | -351.8 | |
| 0.00 | 4.65 | 0.00 | 2.56 | -17.18 | 99.05 | 15.48 | 216.00 | 0.4356 | -910.0 | -748.1 | |
| 1.12 | 1.55 | 0.61 | 0.85 | -17.05 | 98.49 | 14.92 | 215.21 | 0.4287 | -784.8 | -850.4 | |
| 3.62 | 9.48 | 1.99 | 5.21 | -17.55 | 98.31 | 14.74 | 214.18 | 0.4335 | -978.5 | -746.0 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -17.01 | 98.20 | 14.63 | 214.73 | 0.4256 | -974.0 | -770.8 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -16.59 | 98.01 | 14.43 | 214.97 | 0.4186 | -776.0 | -631.4 | |
| 4.48 | 5.43 | 2.44 | 2.95 | -16.34 | 97.93 | 14.35 | 215.18 | 0.4146 | -968.4 | -789.6 | |
| 0.00 | 4.39 | 0.00 | 2.40 | -17.16 | 97.93 | 14.35 | 214.01 | 0.4251 | -814.0 | -737.6 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -17.29 | 97.74 | 14.17 | 213.51 | 0.4251 | -647.0 | -478.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
