SDO HMI 2011-11-09 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.79 | 307.63 | 31.90 | 210.05 | 27.82 | 45.18 | -37.84 | 52.03 | 0.6905 | -1019.0 | -355.6 | |
|
previous
or next observation for the same group /

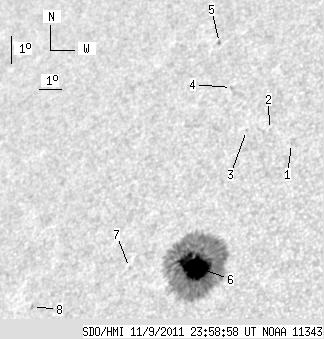

back to the solar disc SDO HMI 2011-11-09 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.65 | 31.92 | 47.60 | -35.43 | 45.37 | 0.6937 | -660.0 | -565.8 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 32.35 | 46.44 | -36.58 | 45.60 | 0.7070 | -534.0 | -513.7 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 32.29 | 45.46 | -37.57 | 46.31 | 0.7152 | -612.0 | -456.5 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 33.72 | 44.04 | -38.98 | 45.47 | 0.7364 | -573.0 | -495.3 | |
| 0.00 | 1.55 | 0.00 | 1.17 | 35.24 | 42.60 | -40.42 | 44.53 | 0.7574 | -670.0 | -574.2 | |
| 46.79 | 299.44 | 31.90 | 204.15 | 27.73 | 45.24 | -37.78 | 52.12 | 0.6894 | -1145.4 | -357.0 | |
| 0.00 | 1.38 | 0.00 | 0.97 | 27.59 | 42.48 | -40.54 | 53.81 | 0.7161 | -576.0 | -391.4 | |
| 0.00 | 1.55 | 0.00 | 1.15 | 26.17 | 38.75 | -44.27 | 57.36 | 0.7463 | 525.0 | 443.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
