SDO HMI 2011-11-10 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.07 | 332.59 | 27.65 | 183.55 | 9.50 | 56.45 | -25.48 | 75.35 | 0.4402 | -784.9 | -412.4 | |
|
previous
or next observation for the same group /

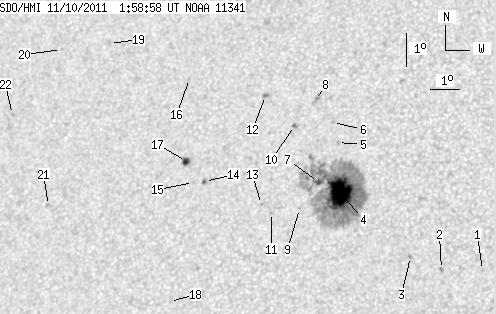

back to the solar disc SDO HMI 2011-11-10 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.41 | 7.17 | 61.64 | -20.28 | 78.78 | 0.3521 | -724.0 | -587.3 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 7.17 | 60.33 | -21.59 | 79.34 | 0.3732 | -893.0 | -710.3 | |
| 0.00 | 1.55 | 0.00 | 0.83 | 7.53 | 59.31 | -22.62 | 78.80 | 0.3903 | -858.0 | -708.3 | |
| 41.37 | 298.21 | 22.72 | 163.97 | 9.38 | 56.89 | -25.04 | 75.42 | 0.4333 | -1391.9 | -452.5 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 10.87 | 56.66 | -25.26 | 72.20 | 0.4420 | -719.0 | -574.1 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 11.47 | 56.44 | -25.49 | 71.04 | 0.4478 | -683.0 | -504.9 | |
| 3.10 | -4.00 | 1.71 | -4.00 | 9.66 | 56.13 | -25.79 | 75.14 | 0.4457 | -680.5 | 999999 | |
| 0.00 | 3.79 | 0.00 | 2.11 | 12.11 | 55.80 | -26.12 | 70.05 | 0.4599 | -678.0 | -646.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 8.87 | 55.56 | -26.37 | 77.12 | 0.4520 | -494.0 | -309.6 | |
| 0.43 | 2.41 | 0.24 | 1.35 | 11.34 | 55.17 | -26.76 | 72.01 | 0.4660 | -798.4 | -677.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 8.73 | 54.62 | -27.30 | 77.77 | 0.4658 | 710.0 | 565.4 | |
| 0.00 | 2.76 | 0.00 | 1.56 | 12.22 | 54.08 | -27.84 | 70.81 | 0.4853 | 1001.0 | 806.4 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 8.95 | 54.27 | -27.66 | 77.41 | 0.4718 | 691.0 | 559.9 | |
| 1.12 | 2.50 | 0.64 | 1.43 | 9.58 | 52.25 | -29.67 | 76.82 | 0.5033 | -873.9 | -616.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 9.54 | 51.88 | -30.05 | 77.02 | 0.5088 | -752.0 | -563.6 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 12.65 | 51.38 | -30.55 | 71.31 | 0.5256 | 581.0 | 514.0 | |
| 4.05 | 5.00 | 2.34 | 2.88 | 10.16 | 51.57 | -30.36 | 75.93 | 0.5149 | -856.4 | -597.6 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 5.98 | 51.33 | -30.60 | 84.12 | 0.5110 | 618.0 | 500.3 | |
| 0.00 | 1.55 | 0.00 | 0.93 | 13.61 | 48.35 | -33.57 | 70.92 | 0.5709 | 606.0 | 496.5 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 13.37 | 46.61 | -35.31 | 71.99 | 0.5936 | 690.0 | 522.9 | |
| 0.00 | 2.33 | 0.00 | 1.41 | 8.69 | 46.78 | -35.15 | 79.84 | 0.5803 | 743.0 | 543.9 | |
| 0.00 | 1.38 | 0.00 | 0.86 | 11.36 | 45.09 | -36.84 | 75.76 | 0.6087 | 671.0 | 583.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
