group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	383.29	2164.38	216.66	1219.90	19.07	105.69	24.32	305.52	0.4789	-502.6	-285.6

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-10 02:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

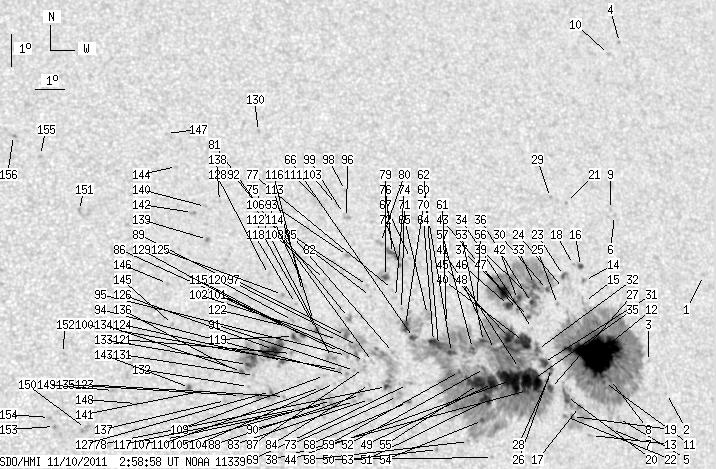

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.60	0.00	0.37	21.28	113.36	31.98	302.50	0.5875	-688.0	-594.9
2	0.00	0.52	0.00	0.30	17.68	111.23	29.86	298.10	0.5398	-569.0	-467.3
3	0.00	1.29	0.00	0.76	18.68	110.77	29.40	300.13	0.5398	130.0	117.2
4	0.00	1.38	0.00	0.88	28.79	112.28	30.90	314.04	0.6285	-603.0	-476.0
5	0.00	2.67	0.00	1.54	16.97	109.40	28.02	298.13	0.5117	-298.0	-184.1
6	0.00	1.38	0.00	0.83	23.25	110.51	29.14	307.68	0.5675	-469.0	-431.5
7	0.00	1.81	0.00	1.04	16.64	109.10	27.73	297.76	0.5058	534.0	359.3
8	0.69	561.38	0.40	325.17	18.17	109.32	27.94	300.33	0.5180	-693.8	-358.9
9	0.00	1.03	0.00	0.62	23.44	110.41	29.04	308.06	0.5678	-597.0	-388.4
10	0.00	1.81	0.00	1.14	28.41	111.72	30.35	314.00	0.6200	-686.0	-561.3
11	1.21	-8.00	0.70	-8.00	18.08	109.09	27.72	300.36	0.5145	-972.8	999999
12	108.60	-8.00	62.84	-8.00	18.98	109.00	27.63	302.00	0.5192	-1398.0	999999
13	0.00	1.64	0.00	0.93	16.47	108.38	27.00	298.00	0.4951	537.0	443.4
14	0.00	2.41	0.00	1.41	21.25	108.97	27.60	305.84	0.5348	-727.0	-559.5
15	0.00	3.45	0.00	2.01	20.59	108.84	27.47	304.87	0.5284	-180.0	-217.1
16	2.15	3.28	1.26	1.92	21.69	108.92	27.55	306.59	0.5374	-747.5	-564.7
17	1.64	44.30	0.93	25.20	17.37	108.10	26.72	299.87	0.4970	-770.9	-420.0
18	0.00	1.21	0.00	0.71	21.75	108.68	27.31	306.92	0.5351	-523.0	-494.4
19	0.86	-17.00	0.49	-17.00	17.07	107.81	26.43	299.56	0.4912	-831.2	999999
20	5.86	-17.00	3.33	-17.00	17.69	107.69	26.32	300.79	0.4937	-871.4	999999
21	0.00	1.03	0.00	0.61	23.71	108.85	27.48	309.82	0.5523	-624.0	-490.6
22	0.00	2.07	0.00	1.17	17.08	107.57	26.19	299.77	0.4881	-957.0	-829.8
23	2.33	5.69	1.35	3.31	21.42	108.26	26.88	306.76	0.5275	-672.1	-507.2
24	0.00	1.72	0.00	1.00	21.02	108.18	26.80	306.17	0.5235	-309.0	-148.4
25	0.00	1.21	0.00	0.70	20.53	107.87	26.49	305.62	0.5161	-620.0	-452.4
26	1.64	920.38	0.93	514.62	18.56	107.31	25.94	302.70	0.4948	-782.3	-497.2
27	4.31	-26.00	2.44	-26.00	17.94	107.18	25.81	301.71	0.4888	-723.1	999999
28	1.12	-26.00	0.64	-26.00	18.40	107.25	25.88	302.48	0.4929	-866.2	999999
29	0.00	1.38	0.00	0.82	23.88	108.31	26.94	310.59	0.5476	-753.0	-666.7
30	1.64	221.26	0.95	126.93	21.00	107.60	26.23	306.66	0.5165	-678.5	-325.2
31	5.77	-26.00	3.28	-26.00	18.75	107.07	25.69	303.27	0.4930	-897.0	999999
32	2.76	-26.00	1.57	-26.00	19.15	106.92	25.55	304.12	0.4941	-871.3	999999
33	5.43	-30.00	3.13	-30.00	21.17	107.17	25.80	307.35	0.5126	-779.1	999999
34	0.00	1.03	0.00	0.59	19.81	106.86	25.48	305.33	0.4982	-732.0	-567.1
35	35.43	-26.00	20.01	-26.00	18.21	106.56	25.19	302.74	0.4826	-1113.4	999999
36	1.64	-30.00	0.94	-30.00	20.61	106.97	25.59	306.61	0.5058	-832.0	999999
37	1.55	-30.00	0.89	-30.00	20.18	106.78	25.41	306.05	0.5002	-898.8	999999
38	1.55	-26.00	0.87	-26.00	17.90	106.38	25.00	302.35	0.4781	-1162.6	999999
39	1.21	-30.00	0.69	-30.00	20.89	106.84	25.47	307.21	0.5065	-510.1	999999
40	15.34	-26.00	8.71	-26.00	19.41	106.48	25.10	305.00	0.4905	-1024.8	999999
41	0.69	-26.00	0.39	-26.00	18.58	106.21	24.83	303.77	0.4808	-773.9	999999
42	4.83	-30.00	2.76	-30.00	20.72	106.49	25.12	307.25	0.5009	-765.7	999999
43	0.86	-30.00	0.49	-30.00	20.41	106.44	25.06	306.78	0.4977	-963.3	999999
44	33.96	-26.00	19.08	-26.00	18.22	105.84	24.47	303.46	0.4735	-1309.6	999999
45	6.46	-26.00	3.66	-26.00	19.55	106.01	24.64	305.69	0.4858	-1111.6	999999
46	5.26	-30.00	2.99	-30.00	20.54	106.15	24.77	307.29	0.4952	-1060.9	999999
47	9.22	-30.00	5.26	-30.00	20.94	106.08	24.70	308.06	0.4977	-1176.2	999999
48	1.81	-26.00	1.02	-26.00	19.19	105.44	24.06	305.63	0.4758	-602.8	999999
49	11.29	-26.00	6.31	-26.00	18.15	105.21	23.84	303.93	0.4648	-1211.1	999999
50	0.00	1.12	0.00	0.62	15.89	104.91	23.53	299.81	0.4445	565.0	414.9
51	7.24	-26.00	4.03	-26.00	17.63	104.93	23.56	303.23	0.4573	-1227.5	999999
52	2.33	-26.00	1.30	-26.00	18.61	105.01	23.63	305.02	0.4658	-742.1	999999
53	1.21	-26.00	0.68	-26.00	19.44	105.10	23.73	306.44	0.4736	-174.9	999999
54	2.07	-26.00	1.15	-26.00	17.02	104.72	23.34	302.27	0.4500	-941.0	999999
55	21.03	-26.00	11.71	-26.00	18.13	104.73	23.36	304.39	0.4585	-1297.1	999999
56	0.00	1.98	0.00	1.12	20.44	105.02	23.64	308.30	0.4808	-776.0	-666.1
57	1.29	-26.00	0.72	-26.00	19.24	104.69	23.32	306.50	0.4668	-909.8	999999
58	0.00	1.64	0.00	0.90	16.39	104.16	22.79	301.57	0.4380	507.0	352.7
59	1.38	-26.00	0.77	-26.00	18.54	104.14	22.77	305.80	0.4543	-983.1	999999
60	3.53	-26.00	1.97	-26.00	19.13	103.96	22.58	307.11	0.4568	-1126.1	999999
61	0.00	0.95	0.00	0.53	20.03	103.92	22.55	308.79	0.4641	29.0	6.9
62	5.17	-26.00	2.87	-26.00	19.36	103.55	22.17	307.99	0.4537	-628.9	999999
63	0.00	1.38	0.00	0.75	16.17	103.10	21.73	302.23	0.4221	-866.0	-728.0
64	3.36	-26.00	1.87	-26.00	19.48	103.40	22.02	308.40	0.4529	445.9	999999
65	0.00	8.62	0.00	4.80	20.32	103.31	21.94	310.02	0.4594	-118.0	21.6
66	3.02	-26.00	1.67	-26.00	19.62	102.74	21.36	309.44	0.4461	529.1	999999
67	0.00	0.86	0.00	0.48	22.08	103.00	21.63	313.42	0.4722	-665.0	-561.6
68	0.00	3.02	0.00	1.65	17.63	102.27	20.90	306.17	0.4229	-918.0	-818.3
69	0.00	4.83	0.00	2.64	18.18	102.34	20.97	307.18	0.4285	-247.0	-423.1
70	5.43	-26.00	3.00	-26.00	20.00	102.52	21.14	310.40	0.4470	886.3	999999
71	0.00	1.29	0.00	0.72	20.50	102.45	21.08	311.37	0.4508	580.0	582.1
72	1.12	1.21	0.63	0.67	21.90	102.60	21.22	313.62	0.4659	-891.5	-786.0
73	0.00	7.84	0.00	4.28	17.82	101.96	20.59	306.93	0.4206	-35.0	20.9
74	0.00	1.38	0.00	0.77	20.87	102.30	20.93	312.23	0.4527	723.0	584.2
75	0.00	1.03	0.00	0.57	19.17	102.00	20.63	309.52	0.4331	-727.0	-589.1
76	5.86	10.95	3.28	6.13	22.25	102.41	21.04	314.44	0.4672	-947.6	-658.5
77	0.00	0.86	0.00	0.48	21.12	102.24	20.86	312.75	0.4543	599.0	453.6
78	2.07	47.49	1.13	25.97	18.13	101.64	20.26	307.97	0.4192	671.0	-36.5
79	2.84	11.81	1.58	6.56	21.53	102.06	20.69	313.68	0.4563	-991.1	-558.3
80	0.00	3.36	0.00	1.88	22.60	102.05	20.68	315.48	0.4669	-808.0	-669.3
81	0.00	1.90	0.00	1.03	18.91	101.26	19.89	309.97	0.4218	504.0	399.6
82	0.00	0.86	0.00	0.48	20.92	101.46	20.09	313.41	0.4435	775.0	609.1
83	0.00	1.90	0.00	1.03	17.75	101.02	19.65	307.98	0.4081	722.0	576.2
84	0.00	1.12	0.00	0.61	18.20	101.08	19.70	308.84	0.4129	585.0	455.8
85	0.00	1.38	0.00	0.76	21.27	101.41	20.04	314.08	0.4463	563.0	505.2
86	0.00	1.29	0.00	0.70	18.95	101.00	19.63	310.39	0.4189	543.0	426.4
87	0.00	2.67	0.00	1.45	18.70	100.94	19.56	310.00	0.4158	475.0	578.1
88	0.00	2.67	0.00	1.45	17.90	100.74	19.37	308.68	0.4060	923.0	690.0
89	0.00	20.34	0.00	11.10	19.41	100.83	19.45	311.52	0.4213	-277.0	-0.6
90	0.00	1.12	0.00	0.61	17.69	100.52	19.15	308.55	0.4013	710.0	657.0
91	0.00	1.12	0.00	0.61	18.64	100.63	19.26	310.31	0.4116	784.0	626.0
92	0.00	3.36	0.00	1.84	20.28	100.64	19.26	313.40	0.4277	730.0	679.6
93	0.00	2.15	0.00	1.19	22.22	100.87	19.49	316.43	0.4501	829.0	658.1
94	0.00	2.15	0.00	1.17	18.53	100.35	18.98	310.46	0.4071	1053.0	776.2
95	0.00	3.45	0.00	1.87	19.11	100.42	19.05	311.51	0.4135	607.0	606.5
96	0.00	2.50	0.00	1.40	23.41	101.01	19.64	318.16	0.4643	661.0	552.8
97	1.03	7.50	0.56	4.09	19.73	100.46	19.09	312.62	0.4201	818.0	636.8
98	0.00	1.03	0.00	0.58	24.27	101.11	19.74	319.34	0.4745	670.0	548.6
99	0.00	0.86	0.00	0.48	23.54	100.93	19.55	318.47	0.4648	583.0	516.7
100	0.00	1.98	0.00	1.07	18.68	100.14	18.76	311.08	0.4060	907.0	771.9
101	0.00	0.69	0.00	0.37	19.24	100.20	18.83	312.06	0.4122	698.0	534.5
102	0.00	1.38	0.00	0.75	19.61	100.18	18.81	312.79	0.4157	854.0	685.8
103	0.00	1.55	0.00	0.87	23.83	100.73	19.36	319.19	0.4659	726.0	479.5
104	0.00	0.95	0.00	0.51	18.26	99.93	18.55	310.53	0.3993	738.0	610.8
105	0.00	6.29	0.00	3.39	17.74	99.77	18.40	309.70	0.3924	788.0	741.3
106	0.00	6.55	0.00	3.55	19.06	99.92	18.54	312.13	0.4070	808.0	737.9
107	0.00	4.65	0.00	2.50	17.62	99.53	18.15	309.81	0.3882	972.0	782.1
108	0.00	2.07	0.00	1.14	21.48	99.99	18.61	316.44	0.4328	620.0	502.4
109	0.00	1.12	0.00	0.60	18.51	99.62	18.25	311.48	0.3981	829.0	672.9
110	0.00	3.28	0.00	1.76	18.14	99.45	18.08	311.00	0.3924	640.0	683.1
111	0.00	1.03	0.00	0.58	23.93	100.16	18.79	320.15	0.4614	757.0	690.7
112	2.15	6.12	1.17	3.32	19.93	99.52	18.15	314.36	0.4113	941.9	658.7
113	0.00	1.38	0.00	0.75	20.21	99.46	18.08	314.98	0.4135	791.0	560.7
114	0.00	1.03	0.00	0.57	21.31	99.29	17.92	317.17	0.4234	723.0	624.7
115	2.15	9.31	1.17	5.03	19.75	99.04	17.66	314.77	0.4039	883.5	841.8
116	0.00	1.12	0.00	0.61	21.12	99.20	17.83	316.98	0.4204	727.0	569.2
117	0.00	1.12	0.00	0.60	17.51	98.67	17.29	310.88	0.3766	753.0	620.1
118	0.00	1.12	0.00	0.61	20.75	98.92	17.55	316.76	0.4133	851.0	600.0
119	1.81	-115.00	0.98	-115.00	19.73	98.74	17.36	315.19	0.4003	992.7	999999
120	0.00	2.15	0.00	1.17	20.22	98.76	17.39	316.07	0.4058	796.0	627.5
121	0.00	2.33	0.00	1.25	19.21	98.61	17.24	314.38	0.3933	912.0	719.0
122	0.00	3.28	0.00	1.77	20.04	98.54	17.17	316.08	0.4014	890.0	680.4
123	0.00	1.12	0.00	0.60	17.89	98.25	16.87	312.33	0.3753	754.0	636.4
124	2.76	4.40	1.48	2.36	18.99	98.29	16.92	314.48	0.3874	988.7	852.5
125	0.00	1.21	0.00	0.66	21.04	98.52	17.15	317.89	0.4122	945.0	824.0
126	21.55	78.35	11.57	41.96	19.34	98.04	16.66	315.57	0.3881	1089.7	642.5
127	1.03	14.83	0.55	7.90	18.05	97.81	16.43	313.38	0.3717	939.8	768.6
128	0.00	0.69	0.00	0.38	21.67	98.13	16.76	319.60	0.4152	753.0	585.1
129	0.00	2.33	0.00	1.26	20.33	97.85	16.47	317.74	0.3970	905.0	798.9
130	0.00	1.47	0.00	0.82	26.21	98.41	17.03	325.96	0.4714	857.0	662.9
131	0.00	1.12	0.00	0.60	18.55	97.33	15.96	315.20	0.3716	771.0	592.7
132	0.00	1.03	0.00	0.55	18.21	97.11	15.73	314.91	0.3653	969.0	788.7
133	1.47	-126.00	0.78	-126.00	18.89	97.14	15.76	316.22	0.3731	1120.4	999999
134	1.21	-126.00	0.64	-126.00	18.68	96.92	15.55	316.17	0.3683	1000.0	999999
135	0.00	2.59	0.00	1.37	17.94	96.82	15.45	314.85	0.3590	948.0	793.7
136	0.00	1.29	0.00	0.69	18.71	96.70	15.32	316.64	0.3662	686.0	584.7
137	0.00	1.81	0.00	0.96	17.80	96.32	14.95	315.45	0.3517	877.0	641.6
138	0.00	1.12	0.00	0.61	23.99	96.77	15.40	325.48	0.4299	726.0	532.8
139	0.00	1.81	0.00	0.98	22.80	96.23	14.85	324.63	0.4101	1012.0	878.5
140	0.00	1.29	0.00	0.71	23.84	96.28	14.91	326.09	0.4236	644.0	495.5
141	0.00	1.98	0.00	1.05	18.08	95.54	14.17	317.53	0.3461	1044.0	824.4
142	0.00	2.24	0.00	1.22	23.66	95.82	14.45	326.63	0.4173	817.0	786.0
143	2.07	2.15	1.09	1.14	18.21	95.20	13.82	318.47	0.3439	939.0	982.0
144	0.00	1.21	0.00	0.66	25.13	95.46	14.08	329.29	0.4332	737.0	557.1
145	0.00	1.72	0.00	0.92	20.16	94.81	13.44	322.94	0.3636	780.0	631.1
146	0.00	1.29	0.00	0.69	21.44	94.77	13.39	325.20	0.3794	835.0	620.9
147	0.00	1.12	0.00	0.62	26.19	95.24	13.87	330.99	0.4455	647.0	499.8
148	0.00	1.38	0.00	0.72	17.74	93.47	12.09	321.18	0.3197	896.0	638.6
149	0.00	2.67	0.00	1.40	18.15	92.76	11.39	323.63	0.3177	-896.0	-577.5
150	0.00	5.95	0.00	3.08	17.00	91.80	10.43	323.63	0.2932	789.0	703.0
151	0.00	1.81	0.00	0.97	23.77	92.08	10.71	333.96	0.3890	733.0	570.6
152	0.00	1.21	0.00	0.63	19.31	91.24	9.87	329.44	0.3195	572.0	383.8
153	0.00	1.03	0.00	0.53	17.07	90.83	9.45	326.37	0.2848	1029.0	910.5
154	0.00	1.21	0.00	0.62	17.34	90.69	9.31	327.31	0.2873	823.0	748.8
155	0.00	1.38	0.00	0.75	25.53	90.93	9.56	338.30	0.4070	688.0	580.9
156	0.00	2.15	0.00	1.17	26.18	90.08	8.71	340.66	0.4118	813.0	603.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
