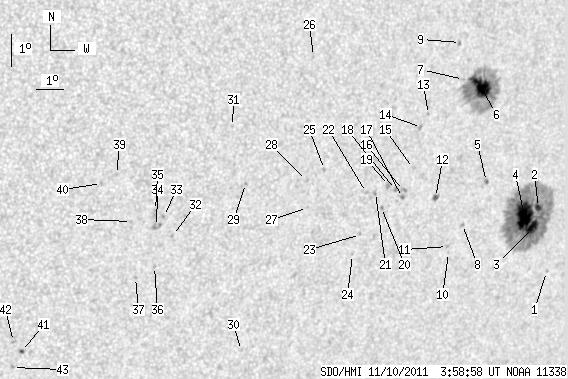

SDO HMI 2011-11-10 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.88 | 402.16 | 44.21 | 276.83 | -13.99 | 121.37 | 40.55 | 245.52 | 0.6945 | 346.6 | 243.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.89 | -16.98 | 124.54 | 43.72 | 243.25 | 0.7425 | -541.0 | -443.5 | |
| 3.36 | 230.06 | 2.41 | 163.96 | -14.94 | 123.65 | 42.82 | 245.45 | 0.7244 | 659.3 | 351.6 | |
| 7.50 | -2.00 | 5.38 | -2.00 | -15.56 | 123.55 | 42.73 | 244.60 | 0.7259 | 722.6 | 999999 | |
| 26.64 | -2.00 | 18.93 | -2.00 | -15.16 | 123.12 | 42.29 | 244.91 | 0.7195 | 1119.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.24 | -14.03 | 121.30 | 40.47 | 245.54 | 0.6941 | 799.0 | 726.5 | |
| 21.55 | 114.13 | 14.39 | 76.24 | -11.10 | 120.54 | 39.72 | 249.24 | 0.6729 | 1031.3 | 312.4 | |
| 0.00 | 1.90 | 0.00 | 1.25 | -10.83 | 119.79 | 38.97 | 249.29 | 0.6627 | 789.0 | 604.0 | |
| 0.00 | 1.55 | 0.00 | 1.06 | -15.34 | 120.62 | 39.79 | 243.42 | 0.6925 | 621.0 | 612.8 | |
| 0.00 | 1.64 | 0.00 | 1.07 | -9.69 | 119.51 | 38.68 | 250.82 | 0.6546 | 671.0 | 491.6 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -16.21 | 120.26 | 39.44 | 242.08 | 0.6927 | 507.0 | 435.1 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -16.02 | 120.18 | 39.35 | 242.29 | 0.6908 | 691.0 | 608.9 | |
| 2.07 | 3.10 | 1.38 | 2.07 | -14.45 | 119.35 | 38.53 | 243.96 | 0.6737 | -605.4 | -593.2 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -11.86 | 118.60 | 37.77 | 247.23 | 0.6525 | 646.0 | 479.8 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -12.25 | 118.40 | 37.57 | 246.55 | 0.6518 | -595.0 | -472.0 | |
| 0.00 | 1.38 | 0.00 | 0.90 | -13.51 | 118.31 | 37.49 | 244.70 | 0.6568 | -563.0 | -436.3 | |
| 0.00 | 2.76 | 0.00 | 1.81 | -14.18 | 118.05 | 37.23 | 243.61 | 0.6571 | -593.0 | -565.6 | |
| 1.38 | 1.47 | 0.91 | 0.96 | -14.40 | 118.06 | 37.23 | 243.30 | 0.6583 | -576.8 | -640.0 | |
| 0.00 | 1.90 | 0.00 | 1.24 | -14.14 | 117.74 | 36.91 | 243.48 | 0.6532 | -843.0 | -671.6 | |
| 0.00 | 2.59 | 0.00 | 1.68 | -14.01 | 117.48 | 36.66 | 243.53 | 0.6494 | -835.0 | -715.2 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -14.68 | 117.31 | 36.48 | 242.46 | 0.6509 | -693.0 | -635.1 | |
| 0.00 | 2.07 | 0.00 | 1.34 | -14.21 | 116.99 | 36.16 | 242.95 | 0.6446 | -726.0 | -489.0 | |
| 0.00 | 1.38 | 0.00 | 0.89 | -14.19 | 116.64 | 35.81 | 242.76 | 0.6404 | -610.0 | -518.1 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -15.50 | 116.67 | 35.84 | 240.91 | 0.6480 | -607.0 | -497.1 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -16.13 | 116.49 | 35.66 | 239.93 | 0.6495 | -514.0 | -398.2 | |
| 0.00 | 1.47 | 0.00 | 0.92 | -13.42 | 114.94 | 34.11 | 242.82 | 0.6155 | -635.0 | -529.4 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -9.92 | 114.05 | 33.22 | 247.68 | 0.5856 | 665.0 | 508.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -14.58 | 114.51 | 33.68 | 240.81 | 0.6170 | -558.0 | -511.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -13.74 | 114.33 | 33.50 | 241.94 | 0.6098 | -617.0 | -591.6 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -13.76 | 112.12 | 31.29 | 240.33 | 0.5828 | -711.0 | -613.1 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -19.05 | 112.94 | 32.11 | 233.34 | 0.6287 | -448.0 | -429.7 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -11.97 | 111.41 | 30.58 | 242.62 | 0.5627 | -584.0 | -419.8 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -15.30 | 109.76 | 28.93 | 236.03 | 0.5648 | -654.0 | -561.1 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -14.70 | 109.35 | 28.52 | 236.61 | 0.5554 | -780.0 | -703.5 | |
| 0.00 | 4.57 | 0.00 | 2.72 | -15.00 | 109.15 | 28.32 | 235.96 | 0.5553 | -618.0 | -678.3 | |
| 0.00 | 2.59 | 0.00 | 1.53 | -14.50 | 109.04 | 28.22 | 236.64 | 0.5502 | -913.0 | -630.2 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -16.26 | 109.27 | 28.45 | 234.15 | 0.5663 | -664.0 | -586.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -16.59 | 108.66 | 27.83 | 233.09 | 0.5618 | -749.0 | -653.3 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -14.82 | 108.25 | 27.43 | 235.41 | 0.5430 | -697.0 | -552.7 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -13.34 | 107.55 | 26.72 | 237.14 | 0.5230 | -759.0 | -639.8 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -13.61 | 107.07 | 26.24 | 236.23 | 0.5190 | -823.0 | -644.7 | |
| 1.38 | 1.64 | 0.81 | 0.96 | -18.85 | 105.05 | 24.22 | 226.04 | 0.5415 | -682.5 | -749.7 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -18.52 | 104.72 | 23.90 | 226.13 | 0.5349 | -637.0 | -620.0 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -19.35 | 104.82 | 23.99 | 225.07 | 0.5440 | 790.0 | 584.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
