SDO HMI 2011-11-10 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.48 | 323.56 | 29.81 | 176.92 | 9.52 | 56.45 | -24.38 | 74.76 | 0.4236 | -793.0 | -419.8 | |
|
previous
or next observation for the same group /

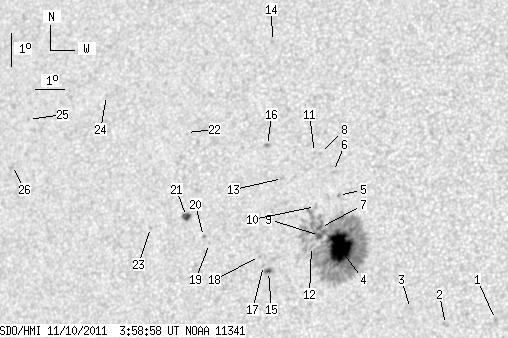

back to the solar disc SDO HMI 2011-11-10 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.68 | 7.33 | 62.00 | -18.83 | 77.53 | 0.3293 | -967.0 | -724.9 | |
| 0.00 | 2.15 | 0.00 | 1.14 | 7.15 | 60.42 | -20.41 | 78.85 | 0.3542 | -681.0 | -657.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 7.60 | 59.27 | -21.56 | 78.14 | 0.3737 | -845.0 | -669.8 | |
| 43.79 | 288.07 | 23.84 | 156.99 | 9.36 | 56.85 | -23.98 | 74.91 | 0.4171 | -1378.7 | -456.3 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 10.92 | 56.69 | -24.14 | 71.41 | 0.4254 | -977.0 | -715.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 11.63 | 56.46 | -24.37 | 69.95 | 0.4320 | -730.0 | -564.8 | |
| 1.90 | -4.00 | 1.04 | -4.00 | 9.95 | 56.17 | -24.65 | 73.91 | 0.4294 | -693.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 12.16 | 55.97 | -24.85 | 69.11 | 0.4416 | -713.0 | -600.3 | |
| 2.84 | -4.00 | 1.56 | -4.00 | 9.71 | 56.16 | -24.67 | 74.47 | 0.4288 | -712.6 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.18 | 10.57 | 55.96 | -24.87 | 72.63 | 0.4351 | -715.0 | -461.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 12.18 | 55.77 | -25.06 | 69.19 | 0.4447 | -772.0 | -610.6 | |
| 0.00 | 2.59 | 0.00 | 1.42 | 9.37 | 55.92 | -24.91 | 75.35 | 0.4313 | -645.0 | -463.2 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 11.38 | 54.77 | -26.05 | 71.52 | 0.4559 | -451.0 | -387.0 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 15.49 | 53.94 | -26.89 | 63.75 | 0.4879 | 728.0 | 558.3 | |
| 1.55 | 3.02 | 0.86 | 1.67 | 8.59 | 54.55 | -26.28 | 77.67 | 0.4500 | 983.7 | 709.2 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 12.35 | 54.16 | -26.66 | 69.83 | 0.4689 | 1010.0 | 785.0 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 8.76 | 54.36 | -26.46 | 77.36 | 0.4533 | 624.0 | 512.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 9.03 | 54.21 | -26.62 | 76.84 | 0.4563 | 706.0 | 591.9 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 9.37 | 52.48 | -28.34 | 76.76 | 0.4832 | -646.0 | -569.8 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 9.57 | 52.26 | -28.57 | 76.43 | 0.4871 | -947.0 | -779.6 | |
| 4.40 | 4.83 | 2.51 | 2.75 | 10.15 | 51.62 | -29.21 | 75.50 | 0.4982 | -867.3 | -587.2 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 12.67 | 51.33 | -29.50 | 70.75 | 0.5109 | 553.0 | 575.0 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 9.79 | 50.40 | -30.43 | 76.64 | 0.5150 | -720.0 | -535.3 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 13.69 | 48.33 | -32.49 | 70.29 | 0.5566 | 657.0 | 562.2 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 12.88 | 45.59 | -35.23 | 72.76 | 0.5911 | 564.0 | 464.0 | |
| 0.00 | 1.72 | 0.00 | 1.06 | 11.48 | 45.21 | -35.62 | 75.21 | 0.5925 | 708.0 | 570.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
