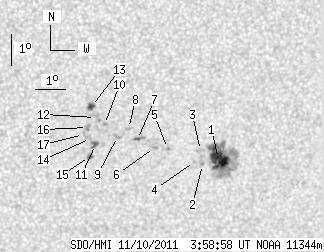

SDO HMI 2011-11-10 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.32 | 116.03 | 18.34 | 65.92 | -17.74 | 101.17 | 20.35 | 222.68 | 0.4897 | 209.7 | 143.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.64 | 74.65 | 12.40 | 42.84 | -18.01 | 102.35 | 21.52 | 223.95 | 0.5047 | 1096.7 | 389.5 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -18.19 | 101.83 | 21.01 | 223.01 | 0.5013 | 727.0 | 621.4 | |
| 0.00 | 2.76 | 0.00 | 1.57 | -17.74 | 101.71 | 20.88 | 223.50 | 0.4953 | 474.0 | 456.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -18.09 | 101.55 | 20.73 | 222.79 | 0.4973 | 822.0 | 720.3 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -17.65 | 100.60 | 19.78 | 222.11 | 0.4828 | 558.0 | 573.9 | |
| 0.00 | 2.41 | 0.00 | 1.36 | -17.61 | 100.17 | 19.34 | 221.55 | 0.4779 | 329.0 | 354.5 | |
| 1.98 | 3.88 | 1.11 | 2.17 | -17.35 | 99.58 | 18.75 | 221.08 | 0.4690 | -691.7 | -584.0 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -16.99 | 99.25 | 18.42 | 221.10 | 0.4616 | -503.0 | -513.5 | |
| 0.00 | 2.93 | 0.00 | 1.63 | -17.24 | 98.91 | 18.08 | 220.23 | 0.4610 | -802.0 | -694.7 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -16.85 | 98.45 | 17.62 | 220.08 | 0.4519 | -1005.0 | -781.6 | |
| 2.15 | 4.57 | 1.20 | 2.54 | -17.48 | 98.22 | 17.39 | 218.79 | 0.4569 | -983.1 | -912.3 | |
| 0.00 | 5.52 | 0.00 | 3.05 | -16.62 | 98.13 | 17.31 | 219.93 | 0.4461 | -110.0 | -289.2 | |
| 3.88 | 3.97 | 2.14 | 2.19 | -16.27 | 97.97 | 17.15 | 220.20 | 0.4403 | -945.4 | -731.0 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -17.28 | 98.03 | 17.21 | 218.79 | 0.4529 | -823.0 | -679.8 | |
| 2.67 | 3.36 | 1.49 | 1.87 | -17.86 | 98.06 | 17.23 | 218.00 | 0.4599 | -806.2 | -808.5 | |
| 0.00 | 2.24 | 0.00 | 1.24 | -16.93 | 97.90 | 17.08 | 219.09 | 0.4474 | -993.0 | -851.4 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -17.15 | 97.79 | 16.97 | 218.59 | 0.4490 | -739.0 | -635.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
