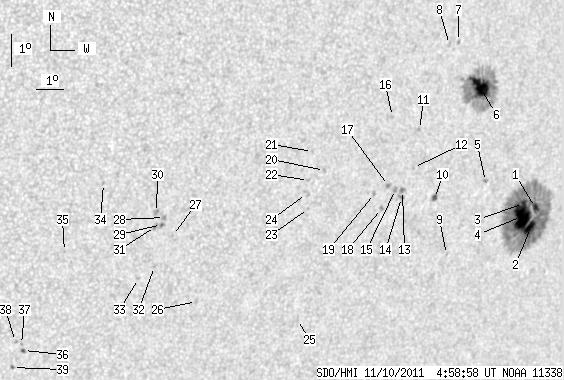

SDO HMI 2011-11-10 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.07 | 398.66 | 43.36 | 276.93 | -14.06 | 121.35 | 41.07 | 245.69 | 0.7008 | 363.5 | 230.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.79 | 234.46 | 2.74 | 168.60 | -14.93 | 123.61 | 43.33 | 245.69 | 0.7298 | 634.6 | 326.7 | |
| 6.21 | -1.00 | 4.49 | -1.00 | -15.56 | 123.56 | 43.28 | 244.87 | 0.7318 | 765.4 | 999999 | |
| 1.90 | -1.00 | 1.36 | -1.00 | -14.79 | 123.06 | 42.78 | 245.64 | 0.7233 | 973.5 | 999999 | |
| 26.81 | -1.00 | 19.22 | -1.00 | -15.19 | 123.08 | 42.80 | 245.12 | 0.7252 | 1150.9 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.37 | -14.03 | 121.32 | 41.04 | 245.82 | 0.7005 | 831.0 | 713.6 | |
| 18.79 | 107.49 | 12.65 | 72.39 | -11.10 | 120.55 | 40.27 | 249.50 | 0.6795 | 1058.4 | 338.4 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -9.65 | 119.46 | 39.18 | 251.10 | 0.6607 | 478.0 | 471.7 | |
| 0.00 | 1.81 | 0.00 | 1.19 | -9.73 | 119.12 | 38.84 | 250.84 | 0.6568 | 595.0 | 498.8 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -16.27 | 120.25 | 39.97 | 242.30 | 0.6989 | 471.0 | 446.0 | |
| 2.33 | 3.19 | 1.57 | 2.15 | -14.48 | 119.36 | 39.09 | 244.23 | 0.6802 | -541.5 | -546.4 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -12.30 | 118.36 | 38.08 | 246.75 | 0.6582 | -688.0 | -499.5 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -13.48 | 118.34 | 38.06 | 245.07 | 0.6634 | -472.0 | -418.1 | |
| 0.00 | 2.33 | 0.00 | 1.54 | -14.18 | 118.05 | 37.77 | 243.93 | 0.6634 | -712.0 | -591.5 | |
| 0.00 | 2.50 | 0.00 | 1.65 | -14.40 | 118.05 | 37.77 | 243.63 | 0.6646 | -694.0 | -552.3 | |
| 0.00 | 2.41 | 0.00 | 1.59 | -14.14 | 117.77 | 37.49 | 243.83 | 0.6599 | -816.0 | -614.3 | |
| 0.00 | 1.47 | 0.00 | 0.95 | -11.86 | 117.25 | 36.97 | 246.81 | 0.6426 | 610.0 | 496.1 | |
| 0.00 | 2.50 | 0.00 | 1.64 | -14.00 | 117.47 | 37.19 | 243.85 | 0.6557 | -861.0 | -710.2 | |
| 0.00 | 2.24 | 0.00 | 1.47 | -14.71 | 117.34 | 37.06 | 242.78 | 0.6579 | -738.0 | -532.4 | |
| 0.00 | 1.90 | 0.00 | 1.23 | -14.23 | 116.98 | 36.70 | 243.24 | 0.6511 | -732.0 | -542.1 | |
| 0.00 | 1.98 | 0.00 | 1.25 | -13.44 | 114.95 | 34.67 | 243.15 | 0.6225 | -637.0 | -495.0 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -12.84 | 114.41 | 34.13 | 243.71 | 0.6124 | -597.0 | -432.6 | |
| 0.00 | 1.38 | 0.00 | 0.87 | -13.74 | 114.41 | 34.13 | 242.37 | 0.6174 | -761.0 | -614.1 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -14.61 | 114.56 | 34.28 | 241.18 | 0.6243 | -648.0 | -475.7 | |
| 0.00 | 3.19 | 0.00 | 2.01 | -14.14 | 114.40 | 34.12 | 241.77 | 0.6197 | -479.0 | -459.2 | |
| 0.00 | 2.07 | 0.00 | 1.34 | -18.12 | 114.85 | 34.57 | 236.47 | 0.6493 | -444.0 | -463.2 | |
| 0.00 | 1.55 | 0.00 | 0.96 | -17.41 | 110.96 | 30.68 | 234.44 | 0.6007 | -559.0 | -412.9 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -15.30 | 109.74 | 29.46 | 236.52 | 0.5710 | -588.0 | -461.0 | |
| 0.00 | 2.41 | 0.00 | 1.44 | -14.72 | 109.37 | 29.09 | 237.08 | 0.5624 | -729.0 | -664.2 | |
| 1.03 | 1.55 | 0.62 | 0.93 | -14.94 | 109.30 | 29.02 | 236.68 | 0.5630 | -684.6 | -659.0 | |
| 0.00 | 2.59 | 0.00 | 1.54 | -14.56 | 109.06 | 28.79 | 237.07 | 0.5575 | -888.0 | -744.2 | |
| 0.00 | 2.41 | 0.00 | 1.44 | -14.99 | 109.09 | 28.81 | 236.42 | 0.5610 | -707.0 | -660.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -16.25 | 109.25 | 28.97 | 234.65 | 0.5724 | -721.0 | -571.5 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -16.62 | 108.75 | 28.47 | 233.65 | 0.5693 | -686.0 | -553.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -13.60 | 107.10 | 26.82 | 236.82 | 0.5261 | -802.0 | -624.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -15.69 | 106.04 | 25.76 | 232.41 | 0.5301 | -634.0 | -576.1 | |
| 1.21 | 1.29 | 0.71 | 0.76 | -18.80 | 105.08 | 24.80 | 226.77 | 0.5472 | -772.6 | -707.0 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -18.61 | 104.98 | 24.70 | 226.93 | 0.5443 | -772.0 | -609.3 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -18.51 | 104.76 | 24.48 | 226.82 | 0.5410 | -433.0 | -597.2 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -19.34 | 104.79 | 24.51 | 225.68 | 0.5492 | 656.0 | 510.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
