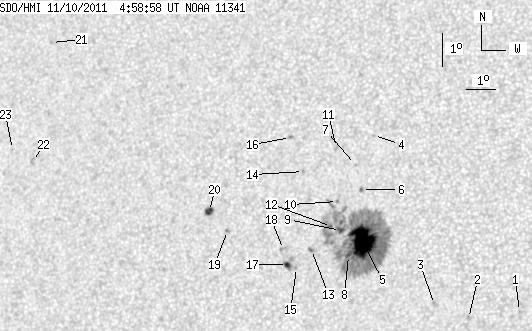

SDO HMI 2011-11-10 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.50 | 354.51 | 31.32 | 193.16 | 9.47 | 56.40 | -23.88 | 74.60 | 0.4158 | -837.5 | -378.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 7.39 | 62.02 | -18.26 | 76.98 | 0.3204 | -870.0 | -684.6 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 7.15 | 60.41 | -19.87 | 78.56 | 0.3456 | -813.0 | -716.5 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 7.55 | 59.31 | -20.97 | 77.99 | 0.3644 | -581.0 | -459.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 12.55 | 56.95 | -23.33 | 67.13 | 0.4213 | 690.0 | 563.8 | |
| 44.57 | 313.34 | 24.16 | 170.14 | 9.37 | 56.86 | -23.42 | 74.59 | 0.4086 | -1373.1 | -425.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 10.92 | 56.70 | -23.58 | 71.02 | 0.4171 | -1046.0 | -881.1 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 11.67 | 56.44 | -23.84 | 69.50 | 0.4244 | -776.0 | -567.4 | |
| 2.07 | -5.00 | 1.12 | -5.00 | 8.94 | 56.43 | -23.85 | 75.83 | 0.4137 | -510.4 | 999999 | |
| 3.10 | -5.00 | 1.69 | -5.00 | 9.68 | 56.11 | -24.17 | 74.25 | 0.4211 | -683.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 10.55 | 55.94 | -24.34 | 72.36 | 0.4270 | -697.0 | -545.8 | |
| 0.00 | 2.15 | 0.00 | 1.19 | 12.16 | 55.76 | -24.52 | 68.86 | 0.4368 | -748.0 | -628.8 | |
| 0.95 | -5.00 | 0.52 | -5.00 | 9.79 | 55.80 | -24.47 | 74.15 | 0.4262 | -617.4 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.23 | 9.09 | 55.19 | -25.08 | 76.05 | 0.4332 | -753.0 | -632.1 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 11.41 | 54.73 | -25.55 | 71.14 | 0.4487 | -682.0 | -506.7 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 8.54 | 54.74 | -25.54 | 77.48 | 0.4386 | 520.0 | 419.7 | |
| 0.00 | 2.41 | 0.00 | 1.35 | 12.42 | 54.19 | -26.09 | 69.33 | 0.4610 | 847.0 | 621.9 | |
| 2.07 | 6.38 | 1.14 | 3.52 | 8.62 | 54.43 | -25.85 | 77.42 | 0.4435 | 957.7 | 502.9 | |
| 0.00 | 3.19 | 0.00 | 1.76 | 9.07 | 54.26 | -26.02 | 76.50 | 0.4473 | 326.0 | 394.4 | |
| 0.00 | 1.55 | 0.00 | 0.87 | 9.58 | 52.33 | -27.95 | 76.16 | 0.4780 | -1005.0 | -723.3 | |
| 4.74 | 5.43 | 2.69 | 3.08 | 10.13 | 51.66 | -28.62 | 75.30 | 0.4895 | -903.2 | -582.9 | |
| 0.00 | 1.55 | 0.00 | 0.95 | 15.03 | 45.30 | -34.98 | 69.10 | 0.5948 | 549.0 | 324.9 | |
| 0.00 | 3.19 | 0.00 | 1.94 | 11.43 | 45.19 | -35.09 | 75.13 | 0.5852 | 688.0 | 584.4 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 11.77 | 44.40 | -35.88 | 74.80 | 0.5969 | 442.0 | 396.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
