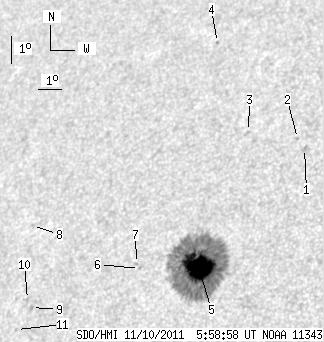

SDO HMI 2011-11-10 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.29 | 298.42 | 33.66 | 196.35 | 27.81 | 44.98 | -34.75 | 50.05 | 0.6600 | -915.9 | -338.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.76 | 0.00 | 1.81 | 31.76 | 47.95 | -31.79 | 42.90 | 0.6604 | -691.0 | -620.8 | |
| 0.00 | 1.38 | 0.00 | 0.91 | 32.09 | 47.53 | -32.20 | 42.82 | 0.6666 | -612.0 | -472.2 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 32.26 | 45.40 | -34.34 | 44.17 | 0.6868 | -699.0 | -584.6 | |
| 0.00 | 1.21 | 0.00 | 0.87 | 35.26 | 42.58 | -37.15 | 42.55 | 0.7316 | -639.0 | -528.8 | |
| 51.29 | 284.97 | 33.66 | 187.07 | 27.73 | 45.11 | -34.62 | 50.07 | 0.6581 | -1153.6 | -352.8 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 27.59 | 42.72 | -37.01 | 51.80 | 0.6813 | -468.0 | -393.8 | |
| 0.00 | 1.21 | 0.00 | 0.82 | 27.75 | 42.53 | -37.20 | 51.71 | 0.6841 | -485.0 | -328.3 | |
| 0.00 | 1.21 | 0.00 | 0.88 | 28.82 | 37.48 | -42.26 | 53.10 | 0.7390 | 567.0 | 450.4 | |
| 0.00 | 1.98 | 0.00 | 1.40 | 26.17 | 38.66 | -41.07 | 55.87 | 0.7147 | 704.0 | 459.3 | |
| 0.00 | 1.12 | 0.00 | 0.80 | 26.42 | 38.38 | -41.35 | 55.68 | 0.7187 | 713.0 | 524.9 | |
| 0.00 | 1.29 | 0.00 | 0.91 | 25.45 | 38.31 | -41.42 | 56.98 | 0.7148 | 451.0 | 373.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
