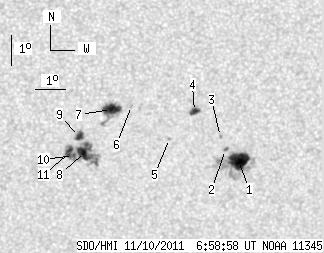

SDO HMI 2011-11-10 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.84 | 154.99 | 41.33 | 88.14 | -25.20 | 85.33 | 6.14 | 191.31 | 0.4918 | -90.6 | -144.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.05 | 63.01 | 13.81 | 36.21 | -25.71 | 87.99 | 8.81 | 195.84 | 0.5076 | 1170.1 | 255.1 | |
| 1.64 | 1.90 | 0.94 | 1.08 | -25.33 | 87.53 | 8.35 | 195.27 | 0.5002 | 878.6 | 747.7 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -24.89 | 87.34 | 8.15 | 195.18 | 0.4930 | 716.0 | 560.1 | |
| 4.83 | 5.95 | 2.72 | 3.35 | -24.04 | 86.43 | 7.24 | 194.03 | 0.4770 | 945.8 | 774.8 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -24.95 | 85.66 | 6.47 | 192.14 | 0.4878 | 562.0 | 511.4 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -23.83 | 84.36 | 5.17 | 190.21 | 0.4671 | -563.0 | -491.8 | |
| 13.10 | 25.00 | 7.33 | 14.00 | -23.96 | 83.71 | 4.53 | 188.91 | 0.4674 | -1092.7 | -610.8 | |
| 16.89 | 49.39 | 9.57 | 28.00 | -25.37 | 82.91 | 3.72 | 186.94 | 0.4872 | -992.8 | -622.1 | |
| 5.26 | 6.21 | 2.96 | 3.50 | -24.86 | 82.70 | 3.51 | 186.68 | 0.4791 | -1079.6 | -909.2 | |
| 1.47 | -8.00 | 0.83 | -8.00 | -25.50 | 82.52 | 3.33 | 186.19 | 0.4885 | -874.4 | 999999 | |
| 5.60 | -8.00 | 3.17 | -8.00 | -25.40 | 82.38 | 3.20 | 185.96 | 0.4868 | -900.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
