SDO HMI 2011-11-10 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.70 | 242.03 | 24.78 | 123.23 | -8.56 | 72.84 | -5.80 | 154.23 | 0.2317 | 1107.9 | 387.6 | |
|
previous
or next observation for the same group /

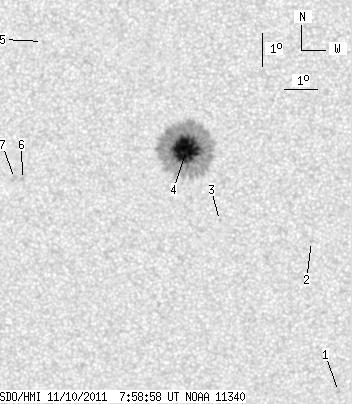

back to the solar disc SDO HMI 2011-11-10 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.00 | -15.92 | 77.41 | -1.23 | 176.43 | 0.3333 | 854.0 | 545.0 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.26 | 76.62 | -2.02 | 172.22 | 0.2570 | 889.0 | 624.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.63 | 73.84 | -4.80 | 161.26 | 0.2573 | -807.0 | -604.9 | |
| 48.70 | 233.57 | 24.78 | 118.85 | -8.47 | 72.87 | -5.77 | 154.22 | 0.2296 | 1427.7 | 414.6 | |
| 0.00 | 0.52 | 0.00 | 0.26 | -5.25 | 68.58 | -10.06 | 130.74 | 0.2307 | -631.0 | -504.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -9.43 | 67.87 | -10.77 | 140.21 | 0.2894 | -839.0 | -663.5 | |
| 0.00 | 2.76 | 0.00 | 1.43 | -9.40 | 67.63 | -11.02 | 139.52 | 0.2917 | -743.0 | -675.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
