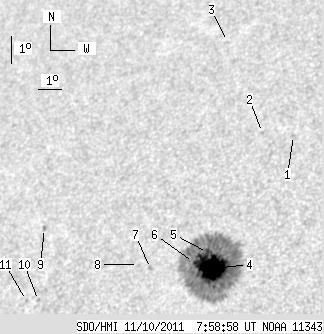

SDO HMI 2011-11-10 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.40 | 308.12 | 24.25 | 200.24 | 27.78 | 44.96 | -33.68 | 49.34 | 0.6491 | -887.2 | -368.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.91 | 32.19 | 46.77 | -31.88 | 42.44 | 0.6647 | -656.0 | -485.1 | |
| 0.00 | 1.29 | 0.00 | 0.87 | 32.25 | 45.45 | -33.19 | 43.35 | 0.6768 | -709.0 | -597.3 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 35.32 | 42.50 | -36.14 | 41.83 | 0.7240 | -687.0 | -596.0 | |
| 34.73 | 298.30 | 22.50 | 193.49 | 27.69 | 45.13 | -33.51 | 49.35 | 0.6467 | -1227.7 | -380.0 | |
| 2.15 | -4.00 | 1.41 | -4.00 | 28.21 | 44.74 | -33.90 | 48.94 | 0.6541 | -502.5 | 999999 | |
| 0.52 | -4.00 | 0.34 | -4.00 | 27.86 | 44.30 | -34.34 | 49.70 | 0.6563 | -519.8 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.26 | 27.61 | 42.62 | -36.02 | 51.14 | 0.6715 | -702.0 | -486.8 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 27.73 | 42.08 | -36.56 | 51.33 | 0.6777 | 534.0 | 341.6 | |
| 0.00 | 1.55 | 0.00 | 1.12 | 28.75 | 37.55 | -41.09 | 52.59 | 0.7278 | 579.0 | 480.0 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 26.42 | 38.34 | -40.30 | 55.15 | 0.7082 | 694.0 | 653.8 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 26.40 | 37.82 | -40.82 | 55.44 | 0.7133 | 475.0 | 351.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
