SDO HMI 2011-11-10 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.69 | 138.59 | 19.52 | 80.07 | -17.82 | 101.29 | 22.65 | 225.58 | 0.5146 | 182.6 | 26.6 | |
|
previous
or next observation for the same group /

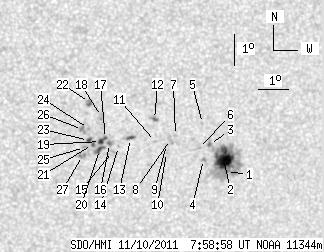

back to the solar disc SDO HMI 2011-11-10 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 83.09 | 0.51 | 48.62 | -18.55 | 102.89 | 24.24 | 226.52 | 0.5387 | 456.5 | 305.1 | |
| 22.32 | -1.00 | 13.05 | -1.00 | -18.13 | 102.72 | 24.08 | 226.93 | 0.5329 | 1119.1 | 999999 | |
| 0.60 | -1.00 | 0.35 | -1.00 | -17.67 | 102.18 | 23.54 | 226.97 | 0.5226 | 842.4 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.20 | -18.15 | 102.04 | 23.40 | 226.12 | 0.5257 | 819.0 | 682.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -17.00 | 101.85 | 23.21 | 227.58 | 0.5125 | 809.0 | 626.4 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -17.79 | 101.82 | 23.18 | 226.37 | 0.5198 | 736.0 | 569.0 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -17.36 | 100.98 | 22.34 | 225.99 | 0.5065 | -679.0 | -529.7 | |
| 0.00 | 3.53 | 0.00 | 2.03 | -17.48 | 100.83 | 22.19 | 225.62 | 0.5061 | 538.0 | 424.6 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -17.64 | 100.72 | 22.08 | 225.24 | 0.5065 | 451.0 | 469.4 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -17.89 | 100.75 | 22.11 | 224.91 | 0.5094 | 578.0 | 552.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -17.53 | 100.33 | 21.69 | 224.91 | 0.5013 | 653.0 | 483.2 | |
| 0.78 | 3.62 | 0.44 | 2.06 | -16.83 | 100.21 | 21.57 | 225.80 | 0.4929 | -837.9 | -595.1 | |
| 1.98 | 3.88 | 1.13 | 2.20 | -17.42 | 99.48 | 20.84 | 223.96 | 0.4911 | -566.5 | -250.0 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -17.66 | 99.11 | 20.47 | 223.10 | 0.4898 | -618.0 | -462.1 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -17.82 | 98.93 | 20.29 | 222.62 | 0.4896 | 197.0 | 201.4 | |
| 0.00 | 2.50 | 0.00 | 1.41 | -17.56 | 98.80 | 20.16 | 222.82 | 0.4855 | -902.0 | -575.6 | |
| 0.26 | 9.05 | 0.15 | 5.11 | -17.40 | 98.65 | 20.01 | 222.85 | 0.4821 | -828.0 | -589.1 | |
| 0.00 | 3.36 | 0.00 | 1.89 | -16.70 | 98.44 | 19.80 | 223.61 | 0.4724 | -690.0 | -606.2 | |
| 1.98 | -17.00 | 1.12 | -17.00 | -17.49 | 98.50 | 19.86 | 222.50 | 0.4815 | -845.0 | 999999 | |
| 2.15 | -17.00 | 1.22 | -17.00 | -17.75 | 98.49 | 19.85 | 222.12 | 0.4842 | -663.7 | 999999 | |
| 1.21 | 4.40 | 0.68 | 2.48 | -17.58 | 98.24 | 19.60 | 222.00 | 0.4799 | -816.4 | -863.4 | |
| 0.00 | 3.71 | 0.00 | 2.07 | -16.25 | 98.00 | 19.36 | 223.67 | 0.4628 | -1172.0 | -929.6 | |
| 1.55 | -21.00 | 0.87 | -21.00 | -17.45 | 98.09 | 19.45 | 221.98 | 0.4769 | -976.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -17.07 | 98.05 | 19.41 | 222.49 | 0.4723 | -852.0 | -722.2 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -17.67 | 97.99 | 19.35 | 221.51 | 0.4783 | -865.0 | -648.8 | |
| 0.00 | 3.96 | 0.00 | 2.22 | -17.10 | 97.86 | 19.22 | 222.17 | 0.4706 | -1006.0 | -782.1 | |
| 0.00 | 3.96 | 0.00 | 2.24 | -17.92 | 97.95 | 19.31 | 221.09 | 0.4807 | -794.0 | -738.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
