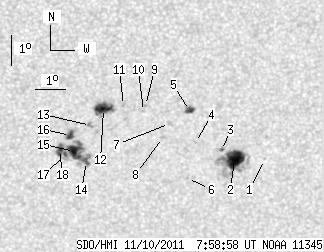

SDO HMI 2011-11-10 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.06 | 146.85 | 36.97 | 83.58 | -25.19 | 85.24 | 6.60 | 192.14 | 0.4930 | -42.8 | -143.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.35 | -25.73 | 89.12 | 10.48 | 198.62 | 0.5152 | -486.0 | -374.7 | |
| 22.06 | 53.09 | 12.69 | 30.57 | -25.69 | 88.11 | 9.47 | 196.97 | 0.5099 | 1165.5 | 303.4 | |
| 1.03 | 3.02 | 0.59 | 1.73 | -25.41 | 87.66 | 9.02 | 196.38 | 0.5040 | 824.9 | 591.2 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -25.13 | 86.77 | 8.13 | 195.01 | 0.4964 | 550.0 | 359.3 | |
| 4.57 | 5.34 | 2.58 | 3.01 | -24.05 | 86.51 | 7.86 | 195.17 | 0.4795 | 967.7 | 787.8 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -26.36 | 86.59 | 7.95 | 194.02 | 0.5134 | 689.0 | 514.1 | |
| 0.00 | 2.67 | 0.00 | 1.51 | -24.48 | 85.87 | 7.23 | 193.77 | 0.4834 | 264.0 | 300.4 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -24.95 | 85.67 | 7.03 | 193.15 | 0.4896 | 594.0 | 403.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -23.87 | 85.05 | 6.41 | 192.57 | 0.4714 | 635.0 | 508.5 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -24.07 | 85.00 | 6.36 | 192.36 | 0.4743 | 630.0 | 432.4 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -23.87 | 84.34 | 5.69 | 191.20 | 0.4691 | -501.0 | -396.0 | |
| 12.41 | 18.53 | 6.95 | 10.38 | -23.96 | 83.69 | 5.05 | 189.92 | 0.4687 | -1095.6 | -684.0 | |
| 0.00 | 3.10 | 0.00 | 1.75 | -24.53 | 83.28 | 4.64 | 188.93 | 0.4763 | -817.0 | -683.7 | |
| 1.47 | 46.71 | 0.83 | 26.50 | -25.75 | 83.20 | 4.56 | 188.36 | 0.4945 | -762.1 | -666.1 | |
| 11.55 | -14.00 | 6.55 | -14.00 | -25.41 | 82.79 | 4.15 | 187.72 | 0.4885 | -1026.6 | 999999 | |
| 4.48 | 7.41 | 2.53 | 4.18 | -24.87 | 82.64 | 4.00 | 187.61 | 0.4800 | -1071.1 | -705.2 | |
| 1.72 | -14.00 | 0.98 | -14.00 | -25.51 | 82.50 | 3.86 | 187.15 | 0.4895 | -803.7 | 999999 | |
| 5.77 | -14.00 | 3.27 | -14.00 | -25.34 | 82.29 | 3.65 | 186.83 | 0.4865 | -865.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
