group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	313.70	2080.55	183.06	1205.59	19.02	105.76	27.66	302.39	0.5207	-465.1	-279.4

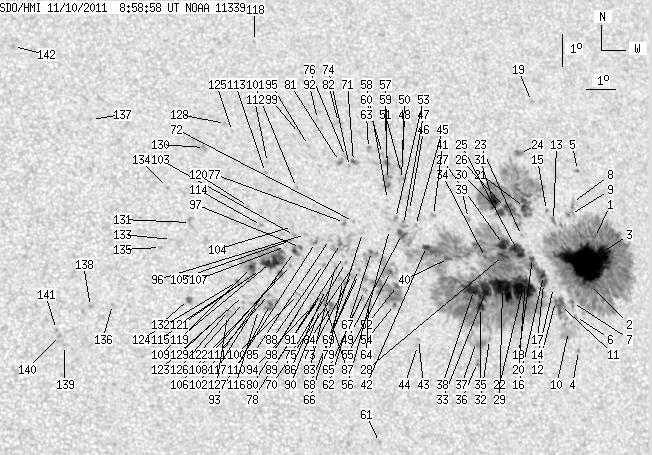

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-10 08:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	1.64	575.35	0.99	343.93	19.70	109.37	31.28	300.55	0.5698	-230.7	-297.2
2	0.95	-1.00	0.56	-1.00	18.23	108.88	30.79	298.47	0.5552	-1115.5	999999
3	111.09	-1.00	66.33	-1.00	18.97	108.96	30.87	299.64	0.5604	-1326.0	999999
4	0.00	1.29	0.00	0.76	16.26	108.13	30.03	295.57	0.5348	695.0	578.5
5	1.03	1.90	0.63	1.15	21.80	109.22	31.13	303.96	0.5809	-631.5	-489.8
6	0.00	1.55	0.00	0.91	17.30	108.20	30.11	297.33	0.5412	-629.0	-485.2
7	1.29	-1.00	0.76	-1.00	17.73	108.17	30.08	298.09	0.5433	-755.3	999999
8	0.00	2.84	0.00	1.71	20.81	108.81	30.71	302.71	0.5696	-356.0	-266.4
9	0.00	4.22	0.00	2.53	20.44	108.65	30.55	302.24	0.5654	-634.0	-382.6
10	0.00	19.48	0.00	11.40	16.85	107.87	29.77	296.77	0.5345	-673.0	-431.4
11	8.01	24.56	4.70	14.39	17.65	107.73	29.63	298.26	0.5370	-910.2	-636.8
12	1.12	-11.00	0.66	-11.00	17.77	107.57	29.47	298.59	0.5357	-1011.2	999999
13	1.98	3.19	1.18	1.90	20.27	107.99	29.89	302.45	0.5562	-527.7	-523.6
14	0.00	1.12	0.00	0.66	18.21	107.58	29.48	299.32	0.5383	-759.0	-639.5
15	0.00	1.38	0.00	0.82	20.58	107.80	29.71	303.11	0.5560	-638.0	-582.1
16	1.98	802.52	1.16	461.46	18.58	107.29	29.19	300.17	0.5369	-951.7	-554.9
17	4.05	-16.00	2.37	-16.00	18.34	107.24	29.15	299.79	0.5348	-884.2	999999
18	1.90	-16.00	1.11	-16.00	19.12	106.99	28.90	301.30	0.5365	-712.6	999999
19	0.00	1.29	0.00	0.79	24.01	108.05	29.96	308.20	0.5827	-684.0	-592.9
20	3.79	-16.00	2.21	-16.00	18.42	106.61	28.52	300.39	0.5273	-967.3	999999
21	9.31	214.59	5.50	126.62	20.70	107.02	28.93	303.90	0.5473	-844.9	-317.2
22	25.94	-16.00	15.06	-16.00	18.17	106.46	28.37	300.09	0.5238	-1140.7	999999
23	0.00	1.03	0.00	0.61	19.84	106.74	28.64	302.70	0.5380	-739.0	-598.8
24	0.00	5.43	0.00	3.24	22.39	107.21	29.12	306.43	0.5614	463.0	567.7
25	11.72	-16.00	6.85	-16.00	19.38	106.51	28.41	302.12	0.5321	-1032.4	999999
26	1.98	-21.00	1.16	-21.00	20.72	106.34	28.24	304.48	0.5391	-914.5	999999
27	8.19	-16.00	4.77	-16.00	19.58	106.04	27.95	302.83	0.5276	-1017.6	999999
28	1.90	-16.00	1.10	-16.00	19.24	105.98	27.88	302.30	0.5245	228.4	999999
29	29.73	-16.00	17.16	-16.00	18.22	105.76	27.67	300.72	0.5151	-1282.8	999999
30	4.83	-21.00	2.83	-21.00	20.57	106.13	28.03	304.41	0.5355	-1044.7	999999
31	9.05	-21.00	5.30	-21.00	20.89	105.94	27.85	305.09	0.5355	-1154.6	999999
32	0.00	0.95	0.00	0.54	16.68	105.05	26.96	298.48	0.4961	-200.0	-137.1
33	11.29	-16.00	6.48	-16.00	18.21	105.20	27.10	301.15	0.5077	-1174.8	999999
34	0.60	-16.00	0.35	-16.00	19.19	105.33	27.24	302.76	0.5161	-687.9	999999
35	4.57	-16.00	2.61	-16.00	17.66	104.90	26.80	300.41	0.5002	-1242.0	999999
36	0.00	2.41	0.00	1.37	15.99	104.54	26.44	297.59	0.4850	818.0	692.1
37	0.00	20.68	0.00	11.74	16.63	104.60	26.50	298.75	0.4897	-390.0	-369.2
38	16.12	-16.00	9.21	-16.00	18.19	104.74	26.64	301.49	0.5016	-1235.3	999999
39	0.00	2.24	0.00	1.30	20.41	104.95	26.86	305.17	0.5201	-726.0	-661.6
40	2.50	-16.00	1.43	-16.00	19.19	104.03	25.94	303.90	0.4997	-1000.1	999999
41	0.00	1.98	0.00	1.14	20.54	103.74	25.64	306.50	0.5062	-56.0	61.7
42	2.07	-16.00	1.18	-16.00	19.58	103.33	25.23	305.24	0.4938	389.6	999999
43	0.00	1.38	0.00	0.77	16.74	102.62	24.52	300.66	0.4640	-821.0	-663.2
44	0.00	1.29	0.00	0.72	16.56	102.56	24.46	300.36	0.4619	-791.0	-537.3
45	0.00	1.55	0.00	0.88	20.24	103.06	24.96	306.66	0.4956	436.0	336.8
46	0.00	0.86	0.00	0.49	20.71	102.93	24.83	307.59	0.4978	427.0	317.5
47	0.00	4.48	0.00	2.54	20.28	102.64	24.55	307.14	0.4909	587.0	522.8
48	0.00	1.64	0.00	0.94	22.25	102.96	24.87	310.11	0.5110	-644.0	-516.7
49	6.03	16.98	3.42	9.62	19.98	102.52	24.43	306.73	0.4869	748.4	289.6
50	0.00	3.10	0.00	1.78	21.68	102.82	24.73	309.33	0.5046	-685.0	-665.6
51	0.00	1.38	0.00	0.79	21.87	102.86	24.76	309.61	0.5066	-962.0	-704.4
52	1.81	45.16	1.01	25.22	18.41	102.14	24.04	304.29	0.4698	-700.9	-27.1
53	0.00	2.33	0.00	1.32	20.48	102.40	24.30	307.73	0.4895	727.0	649.8
54	1.03	-52.00	0.58	-52.00	17.83	101.95	23.86	303.38	0.4630	-771.9	999999
55	1.72	23.01	0.97	12.90	18.84	101.96	23.87	305.27	0.4710	-437.8	-104.2
56	0.00	1.12	0.00	0.63	20.14	102.13	24.04	307.42	0.4835	734.0	614.8
57	0.00	11.89	0.00	6.79	21.70	102.33	24.24	309.86	0.4990	-894.0	-791.7
58	0.00	0.78	0.00	0.44	21.07	102.22	24.13	308.93	0.4924	498.0	323.0
59	0.78	9.39	0.44	5.38	22.23	102.39	24.30	310.67	0.5043	-925.3	-635.2
60	0.00	1.21	0.00	0.69	22.51	102.31	24.21	311.23	0.5058	-897.0	-738.3
61	0.00	1.72	0.00	0.94	13.65	100.94	22.84	295.78	0.4207	814.0	616.9
62	1.03	13.88	0.58	7.76	19.47	101.41	23.31	307.00	0.4691	-507.8	104.1
63	0.00	2.24	0.00	1.28	22.68	101.84	23.75	312.00	0.5021	-801.0	-704.9
64	0.00	3.36	0.00	1.86	17.85	101.07	22.97	304.33	0.4518	530.0	524.5
65	0.00	2.50	0.00	1.39	18.28	100.99	22.90	305.23	0.4542	592.0	537.3
66	0.00	1.64	0.00	0.92	20.07	101.19	23.10	308.30	0.4715	-680.0	-555.9
67	0.00	3.19	0.00	1.77	18.01	100.85	22.76	304.86	0.4503	659.0	545.1
68	0.00	1.64	0.00	0.91	18.93	100.88	22.79	306.58	0.4581	536.0	493.2
69	0.00	0.95	0.00	0.53	18.78	100.86	22.77	306.31	0.4566	631.0	553.9
70	0.00	1.21	0.00	0.67	19.09	100.77	22.67	306.99	0.4580	601.0	506.6
71	0.78	3.36	0.44	1.91	22.29	101.25	23.15	312.02	0.4917	730.7	501.4
72	0.00	1.47	0.00	0.82	20.42	100.94	22.84	309.20	0.4714	601.0	483.7
73	0.00	3.10	0.00	1.72	18.78	100.62	22.53	306.59	0.4536	748.0	587.2
74	0.00	0.95	0.00	0.54	22.13	101.08	22.99	311.96	0.4885	645.0	523.8
75	0.00	1.03	0.00	0.57	19.15	100.47	22.38	307.45	0.4549	734.0	602.5
76	0.00	2.15	0.00	1.22	22.45	101.00	22.90	312.57	0.4904	575.0	406.2
77	0.00	2.59	0.00	1.45	20.39	100.62	22.53	309.52	0.4675	681.0	574.9
78	0.00	0.95	0.00	0.53	19.34	100.43	22.34	307.84	0.4560	588.0	496.1
79	0.00	4.22	0.00	2.34	18.57	100.29	22.19	306.57	0.4477	550.0	686.6
80	0.60	21.63	0.34	12.05	19.74	100.39	22.29	308.63	0.4590	707.9	288.3
81	0.00	3.27	0.00	1.85	22.30	100.76	22.67	312.60	0.4864	796.0	642.7
82	0.00	3.71	0.00	2.12	23.52	100.94	22.85	314.35	0.4999	484.0	492.3
83	0.00	2.41	0.00	1.34	19.07	100.12	22.03	307.70	0.4498	639.0	595.2
84	0.00	6.64	0.00	3.65	17.84	99.85	21.76	305.66	0.4361	811.0	704.7
85	0.00	2.15	0.00	1.20	19.88	100.03	21.94	309.28	0.4558	763.0	594.2
86	0.00	0.86	0.00	0.47	18.34	99.68	21.59	306.82	0.4381	726.0	547.4
87	0.00	3.10	0.00	1.70	17.91	99.59	21.50	306.09	0.4334	1033.0	783.8
88	0.00	1.21	0.00	0.67	19.11	99.72	21.62	308.24	0.4452	881.0	771.1
89	0.00	1.55	0.00	0.85	18.22	99.53	21.44	306.77	0.4352	802.0	721.7
90	0.00	0.86	0.00	0.47	17.76	99.44	21.35	305.97	0.4302	695.0	604.7
91	0.00	1.72	0.00	0.95	18.04	99.41	21.31	306.56	0.4321	927.0	718.8
92	0.00	1.03	0.00	0.59	23.63	100.23	22.13	315.37	0.4933	707.0	542.8
93	0.34	4.05	0.19	2.24	19.79	99.54	21.45	309.72	0.4492	957.0	773.5
94	0.00	1.55	0.00	0.85	17.83	99.15	21.05	306.46	0.4270	948.0	806.9
95	0.00	0.86	0.00	0.49	22.82	99.77	21.68	314.63	0.4804	684.0	529.8
96	0.00	1.55	0.00	0.86	20.05	99.24	21.15	310.55	0.4479	866.0	627.7
97	1.55	8.10	0.86	4.46	19.65	99.02	20.92	310.10	0.4415	767.9	779.5
98	0.00	1.12	0.00	0.61	17.77	98.77	20.68	306.80	0.4218	887.0	757.9
99	0.00	1.12	0.00	0.63	23.21	99.53	21.43	315.55	0.4815	614.0	559.2
100	0.00	1.81	0.00	0.99	18.20	98.76	20.67	307.67	0.4254	647.0	645.9
101	0.00	1.81	0.00	1.01	21.51	99.15	21.06	313.24	0.4608	698.0	594.8
102	1.90	-97.00	1.04	-97.00	19.53	98.80	20.70	310.16	0.4378	970.6	999999
103	0.00	1.98	0.00	1.09	20.02	98.87	20.77	310.98	0.4432	887.0	668.2
104	0.00	1.12	0.00	0.62	20.30	98.84	20.74	311.52	0.4455	802.0	612.8
105	0.00	1.21	0.00	0.66	19.87	98.71	20.61	310.90	0.4400	919.0	707.1
106	0.00	1.47	0.00	0.80	19.10	98.61	20.51	309.60	0.4315	831.0	663.2
107	0.00	1.12	0.00	0.62	19.69	98.52	20.42	310.82	0.4359	712.0	586.5
108	1.47	47.57	0.80	26.03	18.86	98.24	20.15	309.61	0.4249	1021.0	585.6
109	11.29	-108.00	6.17	-108.00	19.21	97.95	19.86	310.66	0.4246	1138.8	999999
110	1.55	10.86	0.84	5.90	17.95	97.80	19.70	308.40	0.4110	976.3	747.2
111	0.00	1.55	0.00	0.84	18.22	97.76	19.67	309.00	0.4131	978.0	811.8
112	0.00	1.03	0.00	0.58	22.32	98.28	20.19	315.72	0.4591	686.0	583.9
113	0.00	1.21	0.00	0.67	22.00	98.17	20.07	315.35	0.4547	638.0	500.1
114	0.00	1.29	0.00	0.71	20.36	97.80	19.70	312.99	0.4339	844.0	697.7
115	0.00	1.38	0.00	0.75	19.00	97.59	19.50	310.74	0.4183	759.0	640.9
116	0.00	0.95	0.00	0.51	17.77	97.38	19.29	308.60	0.4042	356.0	364.2
117	0.00	5.69	0.00	3.08	17.96	97.37	19.27	308.99	0.4057	901.0	818.8
118	0.00	0.86	0.00	0.49	26.17	98.47	20.38	321.30	0.5018	757.0	591.4
119	1.98	23.87	1.08	12.99	19.06	97.30	19.20	311.27	0.4154	1191.4	621.6
120	0.00	0.60	0.00	0.33	20.95	97.44	19.35	314.54	0.4359	736.0	626.7
121	0.00	1.38	0.00	0.75	18.73	97.13	19.03	310.86	0.4101	1045.0	912.4
122	0.00	1.12	0.00	0.61	17.99	96.91	18.81	309.71	0.4004	1043.0	853.2
123	0.00	1.03	0.00	0.56	18.21	96.93	18.84	310.10	0.4028	955.0	701.8
124	0.00	1.55	0.00	0.84	18.64	96.78	18.69	311.18	0.4051	956.0	887.6
125	0.00	0.95	0.00	0.53	23.31	97.23	19.14	318.75	0.4586	652.0	547.6
126	0.00	1.47	0.00	0.79	17.76	96.39	18.30	309.97	0.3918	978.0	735.6
127	0.00	1.38	0.00	0.74	17.61	96.34	18.25	309.72	0.3897	869.0	689.9
128	0.00	1.38	0.00	0.77	23.57	97.03	18.94	319.44	0.4593	718.0	622.1
129	0.00	1.03	0.00	0.55	17.55	96.04	17.95	310.05	0.3854	741.0	602.0
130	0.00	2.50	0.00	1.38	22.83	96.21	18.11	319.46	0.4427	937.0	832.0
131	0.00	4.48	0.00	2.43	20.49	95.44	17.35	316.68	0.4088	694.0	579.3
132	1.21	3.96	0.65	2.12	18.12	95.12	17.02	312.65	0.3799	1057.4	793.1
133	0.00	1.03	0.00	0.56	19.98	94.75	16.66	316.84	0.3956	667.0	552.4
134	0.00	1.03	0.00	0.56	21.59	94.81	16.71	319.61	0.4144	865.0	695.1
135	0.00	1.21	0.00	0.65	19.73	94.37	16.27	317.04	0.3887	850.0	638.9
136	0.00	1.12	0.00	0.59	18.00	92.64	14.55	316.72	0.3499	-762.0	-542.0
137	0.00	0.78	0.00	0.42	23.77	92.52	14.43	326.88	0.4191	752.0	605.4
138	0.00	1.98	0.00	1.04	17.95	91.93	13.83	318.00	0.3414	921.0	739.6
139	0.00	0.78	0.00	0.40	16.77	91.01	12.91	317.36	0.3173	776.0	711.9
140	0.00	1.64	0.00	0.86	17.08	90.87	12.78	318.34	0.3194	918.0	720.8
141	0.00	1.03	0.00	0.54	17.26	90.79	12.69	318.92	0.3207	854.0	659.3
142	0.00	2.15	0.00	1.18	26.13	90.16	12.06	334.16	0.4322	884.0	741.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
