SDO HMI 2011-11-10 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.43 | 141.76 | 19.40 | 82.29 | -17.97 | 101.29 | 23.19 | 226.03 | 0.5219 | 187.7 | 37.8 | |
|
previous
or next observation for the same group /

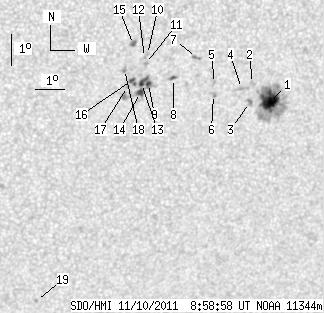

back to the solar disc SDO HMI 2011-11-10 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.37 | 79.29 | 12.56 | 46.66 | -18.22 | 102.84 | 24.74 | 227.56 | 0.5408 | 1109.3 | 301.6 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -17.63 | 102.17 | 24.07 | 227.66 | 0.5280 | 943.0 | 729.2 | |
| 0.00 | 3.88 | 0.00 | 2.27 | -18.23 | 102.15 | 24.06 | 226.77 | 0.5335 | 795.0 | 653.3 | |
| 0.00 | 5.43 | 0.00 | 3.16 | -17.78 | 101.81 | 23.72 | 227.03 | 0.5255 | 460.0 | 440.1 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -17.60 | 100.87 | 22.78 | 226.18 | 0.5135 | 728.0 | 607.5 | |
| 0.00 | 2.76 | 0.00 | 1.59 | -17.95 | 100.88 | 22.79 | 225.68 | 0.5171 | 758.0 | 635.0 | |
| 0.00 | 3.02 | 0.00 | 1.72 | -16.75 | 100.16 | 22.06 | 226.56 | 0.4974 | -883.0 | -655.0 | |
| 1.29 | 3.45 | 0.74 | 1.96 | -17.40 | 99.47 | 21.37 | 224.69 | 0.4965 | -577.9 | -317.3 | |
| 2.24 | 24.56 | 1.27 | 13.92 | -17.54 | 98.65 | 20.56 | 223.39 | 0.4893 | -736.5 | -581.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -16.62 | 98.51 | 20.42 | 224.59 | 0.4781 | -899.0 | -760.8 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -16.91 | 98.48 | 20.38 | 224.11 | 0.4807 | -891.0 | -681.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -16.72 | 98.42 | 20.33 | 224.33 | 0.4781 | -779.0 | -707.4 | |
| 2.15 | -9.00 | 1.22 | -9.00 | -17.54 | 98.42 | 20.32 | 223.08 | 0.4868 | -904.3 | 999999 | |
| 3.36 | -9.00 | 1.91 | -9.00 | -17.83 | 98.42 | 20.32 | 222.66 | 0.4899 | -777.3 | 999999 | |
| 0.95 | 3.62 | 0.53 | 2.03 | -16.30 | 98.01 | 19.92 | 224.40 | 0.4693 | -1065.8 | -893.5 | |
| 2.07 | 3.96 | 1.17 | 2.24 | -17.44 | 98.07 | 19.98 | 222.76 | 0.4821 | -969.8 | -933.4 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -17.62 | 97.96 | 19.87 | 222.32 | 0.4830 | -875.0 | -730.2 | |
| 0.00 | 2.15 | 0.00 | 1.21 | -17.08 | 97.80 | 19.71 | 222.90 | 0.4755 | -950.0 | -813.1 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -24.57 | 95.81 | 17.72 | 210.67 | 0.5447 | -795.0 | -601.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
