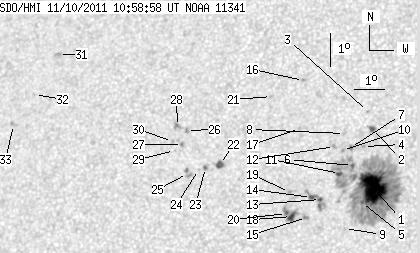

SDO HMI 2011-11-10 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.63 | 379.53 | 37.67 | 202.69 | 9.57 | 55.94 | -21.06 | 72.51 | 0.3729 | -591.2 | -322.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.51 | 299.49 | 25.72 | 158.92 | 9.43 | 56.86 | -20.14 | 72.28 | 0.3582 | -1289.1 | -420.0 | |
| 2.84 | 3.96 | 1.51 | 2.11 | 11.20 | 56.71 | -20.29 | 67.76 | 0.3692 | -853.9 | -635.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 11.70 | 56.51 | -20.49 | 66.66 | 0.3750 | 779.0 | 554.8 | |
| 0.00 | 1.55 | 0.00 | 0.83 | 10.65 | 56.46 | -20.55 | 69.38 | 0.3701 | -863.0 | -642.4 | |
| 0.60 | -1.00 | 0.32 | -1.00 | 8.98 | 56.50 | -20.50 | 73.76 | 0.3619 | -786.1 | 999999 | |
| 1.03 | -1.00 | 0.55 | -1.00 | 10.08 | 56.14 | -20.86 | 71.11 | 0.3722 | -693.7 | 999999 | |
| 0.43 | 1.98 | 0.23 | 1.06 | 10.61 | 56.04 | -20.96 | 69.82 | 0.3763 | -845.2 | -673.6 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 11.03 | 55.81 | -21.19 | 68.95 | 0.3818 | -670.0 | -462.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 8.19 | 56.00 | -21.00 | 76.17 | 0.3669 | -602.0 | -458.4 | |
| 0.00 | 1.55 | 0.00 | 0.83 | 10.52 | 55.79 | -21.22 | 70.25 | 0.3797 | -688.0 | -562.4 | |
| 2.07 | -1.00 | 1.11 | -1.00 | 9.83 | 55.74 | -21.26 | 72.04 | 0.3773 | -649.9 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 10.63 | 55.52 | -21.48 | 70.17 | 0.3843 | -770.0 | -593.2 | |
| 1.29 | 14.04 | 0.69 | 7.53 | 9.04 | 55.17 | -21.83 | 74.43 | 0.3828 | -755.1 | -536.5 | |
| 2.24 | -13.00 | 1.20 | -13.00 | 9.09 | 54.88 | -22.12 | 74.46 | 0.3876 | -712.8 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 8.49 | 54.76 | -22.25 | 76.05 | 0.3875 | 1013.0 | 812.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 12.59 | 54.34 | -22.66 | 66.44 | 0.4120 | 836.0 | 669.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 11.14 | 54.34 | -22.67 | 69.80 | 0.4046 | 727.0 | 641.5 | |
| 4.39 | 14.73 | 2.37 | 7.94 | 8.51 | 54.27 | -22.74 | 76.25 | 0.3952 | 897.1 | 589.9 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 9.23 | 54.15 | -22.85 | 74.54 | 0.3994 | 530.0 | 451.2 | |
| 1.38 | -18.00 | 0.74 | -18.00 | 8.60 | 54.10 | -22.90 | 76.12 | 0.3981 | 820.6 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 12.08 | 53.33 | -23.67 | 68.37 | 0.4242 | 774.0 | 657.7 | |
| 4.39 | 4.57 | 2.42 | 2.51 | 10.01 | 51.79 | -25.22 | 73.98 | 0.4384 | -912.7 | -796.0 | |
| 1.46 | 2.24 | 0.81 | 1.24 | 9.90 | 51.33 | -25.68 | 74.43 | 0.4450 | -732.9 | -588.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.84 | 51.10 | -25.90 | 74.68 | 0.4482 | -661.0 | -504.1 | |
| 0.00 | 5.00 | 0.00 | 2.77 | 9.71 | 50.74 | -26.26 | 75.13 | 0.4532 | -629.0 | -672.7 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 10.99 | 50.59 | -26.41 | 72.45 | 0.4599 | 888.0 | 722.2 | |
| 0.00 | 1.46 | 0.00 | 0.82 | 10.57 | 50.49 | -26.51 | 73.39 | 0.4598 | 786.0 | 721.8 | |
| 0.00 | 3.88 | 0.00 | 2.17 | 11.11 | 50.27 | -26.73 | 72.38 | 0.4650 | 836.0 | 671.1 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 10.39 | 50.24 | -26.76 | 73.91 | 0.4629 | -538.0 | -345.8 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 10.65 | 50.15 | -26.85 | 73.39 | 0.4652 | -618.0 | -390.6 | |
| 0.00 | 3.19 | 0.00 | 1.87 | 13.15 | 45.89 | -31.11 | 70.56 | 0.5356 | 867.0 | 614.8 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 11.92 | 45.21 | -31.80 | 73.08 | 0.5410 | 404.0 | 425.7 | |
| 0.00 | 2.93 | 0.00 | 1.73 | 11.00 | 44.57 | -32.43 | 74.98 | 0.5472 | 800.0 | 460.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
