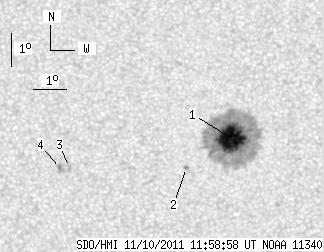

SDO HMI 2011-11-10 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.28 | 254.75 | 22.46 | 129.24 | -8.48 | 72.71 | -3.75 | 162.65 | 0.2170 | 1181.1 | 379.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.28 | 246.13 | 22.46 | 124.82 | -8.45 | 72.86 | -3.60 | 163.17 | 0.2154 | 1385.4 | 417.8 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -9.33 | 71.49 | -4.96 | 158.81 | 0.2373 | 824.0 | 661.4 | |
| 0.00 | 2.76 | 0.00 | 1.42 | -9.36 | 67.95 | -8.51 | 146.47 | 0.2655 | -888.0 | -648.2 | |
| 0.00 | 4.48 | 0.00 | 2.30 | -9.39 | 67.67 | -8.78 | 145.69 | 0.2685 | -981.0 | -785.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
