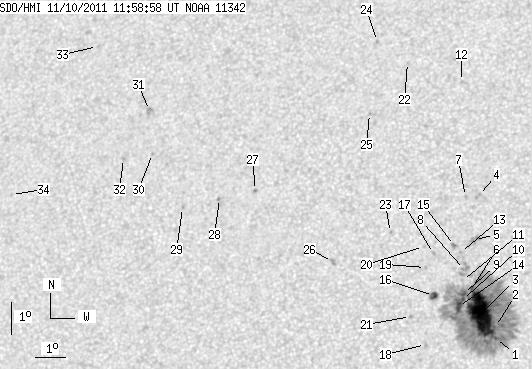

SDO HMI 2011-11-10 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.05 | 460.88 | 40.39 | 239.12 | 16.40 | 64.89 | -11.57 | 40.25 | 0.2982 | -856.2 | -431.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.12 | 406.36 | 0.58 | 210.12 | 15.29 | 65.88 | -10.58 | 40.55 | 0.2736 | -1066.4 | -457.3 | |
| 0.60 | -1.00 | 0.31 | -1.00 | 15.66 | 65.86 | -10.60 | 39.71 | 0.2784 | -1168.1 | 999999 | |
| 63.06 | -1.00 | 32.61 | -1.00 | 16.05 | 65.37 | -11.09 | 40.05 | 0.2886 | -1328.0 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.22 | 19.66 | 65.07 | -11.38 | 33.48 | 0.3385 | -760.0 | -722.0 | |
| 0.00 | 5.69 | 0.00 | 2.97 | 18.30 | 65.04 | -11.42 | 36.05 | 0.3208 | -768.0 | -761.8 | |
| 0.95 | -1.00 | 0.49 | -1.00 | 16.80 | 65.04 | -11.42 | 39.14 | 0.3016 | -643.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 19.63 | 64.65 | -11.80 | 34.48 | 0.3418 | -817.0 | -633.1 | |
| 0.00 | 8.01 | 0.00 | 4.17 | 17.38 | 64.78 | -11.68 | 38.51 | 0.3116 | -967.0 | -693.4 | |
| 2.07 | -1.00 | 1.07 | -1.00 | 16.65 | 64.79 | -11.66 | 40.06 | 0.3022 | -622.6 | 999999 | |
| 1.64 | -1.00 | 0.85 | -1.00 | 16.47 | 64.77 | -11.68 | 40.52 | 0.3002 | -854.4 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.05 | 64.74 | -11.72 | 39.33 | 0.3078 | -743.0 | -500.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 23.21 | 64.22 | -12.23 | 29.79 | 0.3936 | -765.0 | -561.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.90 | 64.62 | -11.84 | 37.82 | 0.3198 | -818.0 | -608.1 | |
| 4.22 | -1.00 | 2.19 | -1.00 | 16.25 | 64.66 | -11.79 | 41.28 | 0.2988 | -950.5 | 999999 | |
| 0.00 | 3.10 | 0.00 | 1.62 | 18.11 | 64.41 | -12.04 | 37.86 | 0.3246 | -805.0 | -640.2 | |
| 4.39 | 5.86 | 2.29 | 3.05 | 16.58 | 63.85 | -12.61 | 42.38 | 0.3117 | -783.6 | -539.6 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 17.86 | 63.76 | -12.70 | 39.81 | 0.3282 | -703.0 | -538.1 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 15.08 | 63.69 | -12.76 | 46.30 | 0.2964 | -610.0 | -531.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.43 | 63.53 | -12.92 | 41.19 | 0.3254 | -752.0 | -562.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 18.07 | 63.42 | -13.03 | 40.09 | 0.3343 | -622.0 | -524.8 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 15.93 | 63.16 | -13.29 | 45.36 | 0.3122 | -944.0 | -675.5 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 23.79 | 62.37 | -14.09 | 32.47 | 0.4166 | -699.0 | -534.0 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.49 | 62.33 | -14.13 | 41.47 | 0.3511 | -767.0 | -573.0 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 24.44 | 61.28 | -15.17 | 33.43 | 0.4343 | -641.0 | -547.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 22.17 | 61.28 | -15.17 | 36.84 | 0.4060 | -724.0 | -555.5 | |
| 0.00 | 3.19 | 0.00 | 1.69 | 17.57 | 60.53 | -15.92 | 46.65 | 0.3612 | 970.0 | 750.1 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 19.71 | 57.78 | -18.67 | 46.74 | 0.4157 | 919.0 | 774.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 19.44 | 56.61 | -19.84 | 48.87 | 0.4268 | 855.0 | 753.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 19.14 | 55.41 | -21.05 | 50.98 | 0.4385 | 713.0 | 568.8 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 20.79 | 54.15 | -22.30 | 49.52 | 0.4685 | 842.0 | 681.8 | |
| 0.00 | 3.27 | 0.00 | 1.85 | 22.12 | 53.83 | -22.63 | 47.62 | 0.4844 | 786.0 | 739.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 20.61 | 53.18 | -23.28 | 50.93 | 0.4784 | 768.0 | 671.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 24.10 | 51.62 | -24.83 | 46.93 | 0.5269 | -460.0 | -428.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 19.40 | 49.47 | -26.98 | 56.65 | 0.5144 | 641.0 | 497.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
