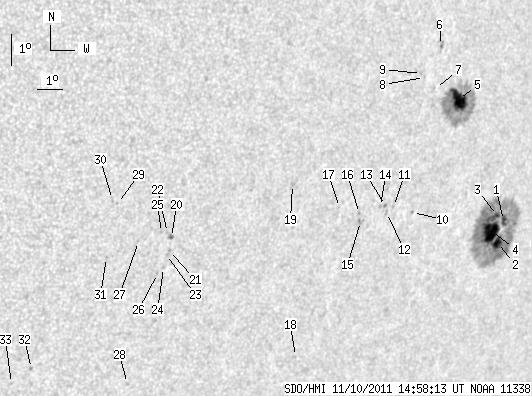

SDO HMI 2011-11-10 14:58:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.47 | 345.83 | 37.45 | 264.76 | -13.97 | 121.63 | 46.82 | 248.33 | 0.7628 | 338.3 | 222.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 14:58:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.70 | 210.12 | 2.96 | 166.95 | -14.89 | 123.57 | 48.75 | 247.95 | 0.7862 | 564.0 | 294.5 | |
| 6.20 | -1.00 | 4.96 | -1.00 | -15.57 | 123.50 | 48.69 | 247.10 | 0.7877 | 641.8 | 999999 | |
| 1.46 | -1.00 | 1.16 | -1.00 | -14.72 | 123.24 | 48.42 | 248.04 | 0.7824 | 811.2 | 999999 | |
| 19.20 | -1.00 | 15.21 | -1.00 | -15.21 | 123.11 | 48.29 | 247.39 | 0.7826 | 1028.5 | 999999 | |
| 17.48 | 97.31 | 12.88 | 71.80 | -11.02 | 120.57 | 45.75 | 251.78 | 0.7426 | 983.9 | 268.9 | |
| 0.00 | 4.56 | 0.00 | 3.28 | -9.33 | 119.53 | 44.71 | 253.67 | 0.7258 | 566.0 | 461.7 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -10.64 | 119.50 | 44.69 | 251.91 | 0.7294 | 575.0 | 541.6 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -10.28 | 118.97 | 44.16 | 252.20 | 0.7222 | 664.0 | 595.7 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -10.15 | 118.82 | 44.01 | 252.32 | 0.7201 | 662.0 | 623.0 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -14.45 | 119.36 | 44.54 | 246.88 | 0.7409 | -557.0 | -425.9 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -14.23 | 118.49 | 43.67 | 246.80 | 0.7306 | -450.0 | -306.0 | |
| 0.00 | 1.89 | 0.00 | 1.36 | -14.40 | 118.24 | 43.42 | 246.46 | 0.7285 | -475.0 | -393.9 | |
| 0.00 | 1.46 | 0.00 | 1.05 | -14.18 | 118.14 | 43.32 | 246.71 | 0.7266 | -631.0 | -564.9 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -14.21 | 117.93 | 43.12 | 246.59 | 0.7244 | -804.0 | -604.0 | |
| 0.00 | 2.76 | 0.00 | 1.95 | -14.64 | 117.20 | 42.39 | 245.69 | 0.7181 | -632.0 | -524.6 | |
| 0.00 | 1.29 | 0.00 | 0.91 | -14.39 | 117.10 | 42.28 | 245.97 | 0.7159 | -691.0 | -551.6 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -14.17 | 116.22 | 41.41 | 245.86 | 0.7051 | -593.0 | -432.2 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -18.83 | 115.62 | 40.81 | 239.48 | 0.7204 | -353.0 | -272.1 | |
| 0.00 | 1.55 | 0.00 | 1.04 | -13.37 | 114.16 | 39.35 | 245.94 | 0.6779 | -667.0 | -517.0 | |
| 0.43 | 2.58 | 0.28 | 1.65 | -14.85 | 109.79 | 34.97 | 241.34 | 0.6337 | -759.8 | -650.5 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -15.26 | 109.79 | 34.98 | 240.76 | 0.6361 | -757.0 | -620.1 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -14.69 | 109.61 | 34.79 | 241.45 | 0.6307 | -669.0 | -513.8 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -15.38 | 109.70 | 34.89 | 240.52 | 0.6358 | -568.0 | -534.4 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -15.79 | 109.67 | 34.85 | 239.93 | 0.6378 | -648.0 | -513.7 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -14.68 | 109.38 | 34.57 | 241.32 | 0.6279 | -821.0 | -568.9 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -15.97 | 109.48 | 34.66 | 239.54 | 0.6366 | -669.0 | -511.2 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -14.94 | 108.57 | 33.76 | 240.41 | 0.6197 | -674.0 | -572.7 | |
| 0.00 | 1.55 | 0.00 | 1.01 | -19.45 | 109.11 | 34.29 | 234.53 | 0.6547 | -538.0 | -441.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -13.72 | 107.60 | 32.78 | 241.53 | 0.6006 | -596.0 | -462.6 | |
| 0.00 | 1.81 | 0.00 | 1.11 | -13.59 | 107.39 | 32.58 | 241.59 | 0.5973 | -715.0 | -559.7 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -15.40 | 107.48 | 32.66 | 238.95 | 0.6096 | -807.0 | -636.7 | |
| 0.00 | 1.38 | 0.00 | 0.86 | -18.84 | 105.39 | 30.58 | 232.40 | 0.6099 | -635.0 | -529.8 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -19.30 | 104.76 | 29.94 | 231.22 | 0.6066 | 484.0 | 405.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
