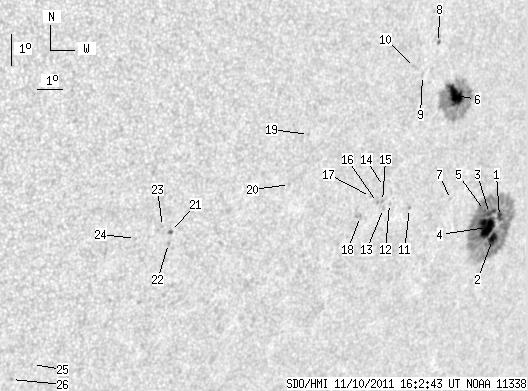

SDO HMI 2011-11-10 16:02:43 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.09 | 324.54 | 44.67 | 252.99 | -13.88 | 122.02 | 47.80 | 248.86 | 0.7729 | 504.4 | 235.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 16:02:43 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.56 | 205.36 | 3.69 | 165.10 | -14.89 | 123.59 | 49.37 | 248.17 | 0.7924 | 530.3 | 280.5 | |
| 7.75 | -1.00 | 6.28 | -1.00 | -15.60 | 123.49 | 49.27 | 247.27 | 0.7936 | 606.5 | 999999 | |
| 5.51 | -1.00 | 4.40 | -1.00 | -14.77 | 123.09 | 48.86 | 248.14 | 0.7870 | 878.6 | 999999 | |
| 19.29 | -1.00 | 15.46 | -1.00 | -15.21 | 123.08 | 48.86 | 247.60 | 0.7883 | 1006.7 | 999999 | |
| 0.86 | -1.00 | 0.68 | -1.00 | -14.66 | 122.82 | 48.60 | 248.17 | 0.7840 | 1096.8 | 999999 | |
| 17.22 | 96.70 | 12.83 | 72.17 | -11.02 | 120.59 | 46.37 | 251.99 | 0.7494 | 975.2 | 246.1 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -14.25 | 121.14 | 46.92 | 248.08 | 0.7654 | 627.0 | 606.0 | |
| 1.38 | 1.55 | 1.00 | 1.12 | -9.36 | 119.54 | 45.32 | 253.83 | 0.7329 | 558.9 | 443.5 | |
| 0.00 | 1.81 | 0.00 | 1.31 | -10.34 | 119.03 | 44.81 | 252.35 | 0.7299 | 611.0 | 433.2 | |
| 0.00 | 2.41 | 0.00 | 1.73 | -10.08 | 118.64 | 44.42 | 252.57 | 0.7247 | 711.0 | 599.9 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -14.45 | 119.38 | 45.16 | 247.13 | 0.7475 | -587.0 | -466.9 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -14.25 | 118.46 | 44.24 | 247.01 | 0.7369 | -313.0 | -339.2 | |
| 0.00 | 1.55 | 0.00 | 1.13 | -14.40 | 118.24 | 44.02 | 246.73 | 0.7351 | -495.0 | -469.6 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -13.71 | 118.08 | 43.85 | 247.55 | 0.7306 | -523.0 | -381.8 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -14.18 | 118.15 | 43.92 | 246.97 | 0.7332 | -726.0 | -629.5 | |
| 0.00 | 1.12 | 0.00 | 0.81 | -14.20 | 117.94 | 43.72 | 246.85 | 0.7310 | -682.0 | -577.4 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -14.00 | 117.59 | 43.37 | 246.97 | 0.7264 | -451.0 | -464.8 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -14.61 | 117.32 | 43.10 | 246.05 | 0.7258 | -610.0 | -536.8 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -11.96 | 114.62 | 40.40 | 248.40 | 0.6843 | -551.0 | -426.2 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -13.49 | 114.16 | 39.93 | 246.07 | 0.6853 | -769.0 | -544.4 | |
| 0.52 | 1.38 | 0.33 | 0.89 | -14.78 | 109.79 | 35.57 | 241.82 | 0.6404 | -749.8 | -625.2 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -15.16 | 109.79 | 35.57 | 241.29 | 0.6424 | -734.0 | -606.5 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -14.62 | 109.46 | 35.24 | 241.85 | 0.6355 | -753.0 | -654.0 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -14.96 | 108.51 | 34.29 | 240.74 | 0.6262 | -613.0 | -451.0 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -18.83 | 105.46 | 31.24 | 232.98 | 0.6171 | -625.0 | -436.1 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -19.29 | 104.79 | 30.57 | 231.78 | 0.6132 | 584.0 | 461.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
