SDO HMI 2011-11-10 16:02:43 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.16 | 174.19 | 35.21 | 104.49 | -17.93 | 101.37 | 27.15 | 230.40 | 0.5645 | -31.2 | 73.0 | |
|
previous
or next observation for the same group /

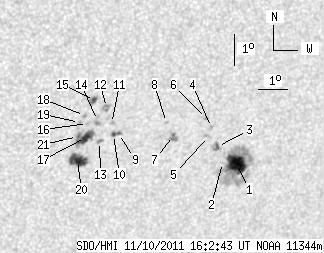

back to the solar disc SDO HMI 2011-11-10 16:02:43 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.42 | 90.67 | 14.36 | 55.62 | -18.39 | 103.45 | 29.23 | 231.85 | 0.5915 | 1075.4 | 284.2 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -18.34 | 102.94 | 28.72 | 231.45 | 0.5854 | 495.0 | 482.2 | |
| 2.50 | 5.17 | 1.51 | 3.13 | -17.82 | 102.67 | 28.45 | 231.94 | 0.5782 | 859.0 | 757.8 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -17.21 | 102.35 | 28.13 | 232.52 | 0.5697 | 890.0 | 666.5 | |
| 0.00 | 2.58 | 0.00 | 1.56 | -17.49 | 102.30 | 28.07 | 232.06 | 0.5713 | 912.0 | 723.2 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -16.92 | 102.13 | 27.91 | 232.74 | 0.5648 | 933.0 | 808.5 | |
| 1.21 | 6.11 | 0.72 | 3.64 | -17.43 | 101.06 | 26.83 | 230.95 | 0.5568 | 952.7 | 822.1 | |
| 0.00 | 1.38 | 0.00 | 0.82 | -17.01 | 100.75 | 26.52 | 231.25 | 0.5497 | 751.0 | 570.8 | |
| 1.21 | 3.44 | 0.71 | 2.01 | -17.31 | 99.13 | 24.91 | 229.10 | 0.5342 | -494.6 | -472.3 | |
| 1.46 | -9.00 | 0.86 | -9.00 | -17.34 | 98.97 | 24.74 | 228.87 | 0.5326 | -631.9 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -16.99 | 98.85 | 24.63 | 229.27 | 0.5280 | -533.0 | -409.9 | |
| 0.00 | 4.31 | 0.00 | 2.49 | -16.48 | 98.61 | 24.39 | 229.77 | 0.5206 | -785.0 | -746.9 | |
| 0.00 | 2.58 | 0.00 | 1.51 | -17.55 | 98.52 | 24.30 | 228.06 | 0.5295 | -808.0 | -587.8 | |
| 0.00 | 4.65 | 0.00 | 2.70 | -16.88 | 98.36 | 24.13 | 228.88 | 0.5215 | -905.0 | -712.5 | |
| 2.32 | 5.17 | 1.34 | 2.98 | -16.24 | 98.17 | 23.95 | 229.64 | 0.5135 | -896.1 | -870.1 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -16.97 | 98.03 | 23.81 | 228.37 | 0.5186 | -688.0 | -528.2 | |
| 10.94 | 19.12 | 6.34 | 11.09 | -17.41 | 98.02 | 23.80 | 227.70 | 0.5227 | -983.8 | -841.8 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -16.71 | 97.89 | 23.67 | 228.60 | 0.5147 | -741.0 | -717.0 | |
| 0.00 | 1.55 | 0.00 | 0.89 | -16.93 | 97.75 | 23.53 | 228.10 | 0.5152 | -807.0 | -720.2 | |
| 15.24 | 18.86 | 8.87 | 10.98 | -18.14 | 97.85 | 23.63 | 226.43 | 0.5278 | -889.1 | -569.4 | |
| 0.86 | -17.00 | 0.50 | -17.00 | -17.37 | 97.74 | 23.52 | 227.43 | 0.5193 | -949.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
