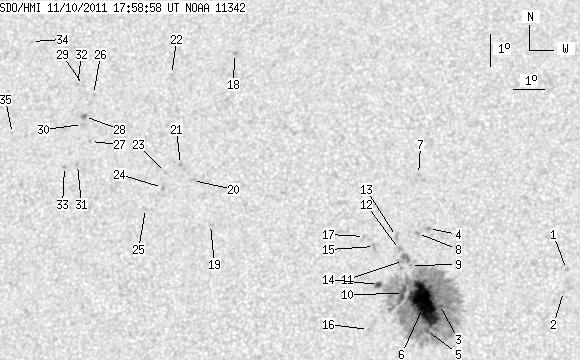

SDO HMI 2011-11-10 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.86 | 442.20 | 40.48 | 227.45 | 16.41 | 64.59 | -8.56 | 31.79 | 0.2688 | -763.9 | -429.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.66 | 17.06 | 69.68 | -3.47 | 13.77 | 0.2445 | -759.0 | -582.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 16.39 | 69.60 | -3.55 | 14.81 | 0.2338 | -870.0 | -672.3 | |
| 0.60 | 388.05 | 0.31 | 198.77 | 15.97 | 65.76 | -7.39 | 29.54 | 0.2520 | -929.6 | -478.8 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 18.29 | 65.32 | -7.83 | 26.67 | 0.2896 | -941.0 | -769.1 | |
| 2.07 | -3.00 | 1.05 | -3.00 | 15.18 | 65.39 | -7.77 | 32.49 | 0.2439 | -814.8 | 999999 | |
| 66.38 | -3.00 | 34.01 | -3.00 | 16.00 | 65.29 | -7.86 | 31.00 | 0.2564 | -1391.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 19.95 | 64.92 | -8.23 | 25.23 | 0.3171 | -739.0 | -594.6 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 18.14 | 64.98 | -8.17 | 27.91 | 0.2899 | -891.0 | -714.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.15 | 64.81 | -8.35 | 30.19 | 0.2771 | -954.0 | -742.3 | |
| 5.68 | -3.00 | 2.92 | -3.00 | 16.30 | 64.63 | -8.53 | 32.44 | 0.2665 | -891.5 | 999999 | |
| 0.00 | 10.76 | 0.00 | 5.55 | 17.31 | 64.58 | -8.57 | 30.56 | 0.2812 | -755.0 | -709.2 | |
| 0.00 | 2.93 | 0.00 | 1.51 | 17.64 | 64.44 | -8.71 | 30.34 | 0.2872 | -904.0 | -687.6 | |
| 0.00 | 2.84 | 0.00 | 1.47 | 18.04 | 64.32 | -8.83 | 29.93 | 0.2938 | -687.0 | -545.4 | |
| 2.67 | -3.00 | 1.38 | -3.00 | 16.57 | 63.83 | -9.32 | 34.18 | 0.2776 | -888.8 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.29 | 17.73 | 63.65 | -9.51 | 32.36 | 0.2953 | -735.0 | -694.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 15.20 | 63.58 | -9.57 | 38.01 | 0.2617 | -716.0 | -640.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 18.03 | 63.31 | -9.84 | 32.67 | 0.3024 | -629.0 | -507.5 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 23.67 | 58.62 | -14.54 | 33.43 | 0.4191 | -898.0 | -753.2 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 18.34 | 58.37 | -14.79 | 43.01 | 0.3567 | 717.0 | 608.6 | |
| 0.00 | 2.41 | 0.00 | 1.29 | 19.68 | 57.65 | -15.50 | 41.69 | 0.3799 | 577.0 | 681.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 20.17 | 57.21 | -15.94 | 41.56 | 0.3903 | 939.0 | 781.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 22.98 | 56.59 | -16.57 | 37.88 | 0.4293 | -656.0 | -494.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 19.92 | 56.74 | -16.41 | 42.82 | 0.3925 | 835.0 | 569.0 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 19.45 | 56.70 | -16.46 | 43.77 | 0.3879 | 905.0 | 651.7 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 18.80 | 56.21 | -16.95 | 45.84 | 0.3863 | 811.0 | 659.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 22.30 | 54.04 | -19.11 | 42.80 | 0.4477 | 819.0 | 650.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 20.83 | 54.14 | -19.01 | 45.16 | 0.4312 | 867.0 | 731.9 | |
| 1.46 | 2.07 | 0.81 | 1.14 | 21.61 | 53.83 | -19.32 | 44.25 | 0.4426 | 910.9 | 828.9 | |
| 0.00 | 1.46 | 0.00 | 0.81 | 22.58 | 53.66 | -19.49 | 42.88 | 0.4546 | 709.0 | 516.9 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 21.36 | 53.80 | -19.35 | 44.73 | 0.4404 | 851.0 | 695.0 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 20.11 | 53.80 | -19.35 | 46.94 | 0.4277 | 646.0 | 542.2 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 22.61 | 53.45 | -19.70 | 43.13 | 0.4571 | 564.0 | 418.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 20.04 | 53.37 | -19.78 | 47.65 | 0.4320 | 749.0 | 572.3 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 23.93 | 51.65 | -21.50 | 43.38 | 0.4898 | -677.0 | -480.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 21.03 | 51.47 | -21.68 | 48.34 | 0.4636 | 477.0 | 417.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
