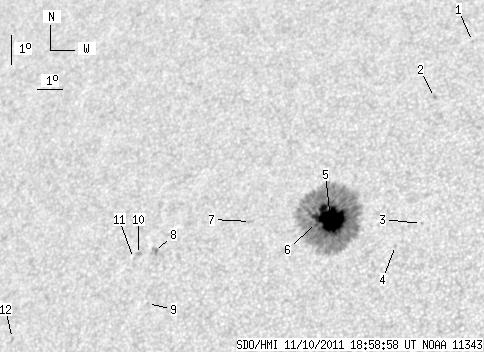

SDO HMI 2011-11-10 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.62 | 325.63 | 31.00 | 199.87 | 27.74 | 44.59 | -28.01 | 44.78 | 0.5921 | -923.1 | -342.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.32 | 33.82 | 48.54 | -24.06 | 33.56 | 0.6151 | -664.0 | -560.0 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 31.88 | 47.63 | -24.97 | 36.66 | 0.6026 | -819.0 | -612.5 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 27.70 | 48.25 | -24.35 | 41.26 | 0.5559 | -640.0 | -522.1 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 26.96 | 47.46 | -25.14 | 43.08 | 0.5565 | 650.0 | 482.2 | |
| 49.85 | 310.39 | 30.52 | 190.15 | 27.78 | 44.82 | -27.78 | 44.55 | 0.5900 | -1256.6 | -375.3 | |
| 0.77 | -5.00 | 0.48 | -5.00 | 27.63 | 44.33 | -28.27 | 45.19 | 0.5937 | -855.9 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.30 | 27.60 | 41.80 | -30.80 | 47.40 | 0.6189 | -770.0 | -638.6 | |
| 0.00 | 4.74 | 0.00 | 3.07 | 26.52 | 38.35 | -34.25 | 51.41 | 0.6466 | 724.0 | 589.5 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 24.85 | 38.62 | -33.98 | 53.53 | 0.6330 | 627.0 | 563.4 | |
| 0.00 | 1.89 | 0.00 | 1.23 | 26.40 | 37.74 | -34.86 | 51.97 | 0.6522 | 592.0 | 451.9 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 26.26 | 37.59 | -35.01 | 52.26 | 0.6530 | 507.0 | 426.1 | |
| 0.00 | 1.46 | 0.00 | 0.99 | 23.56 | 33.57 | -39.03 | 58.28 | 0.6810 | 642.0 | 509.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
