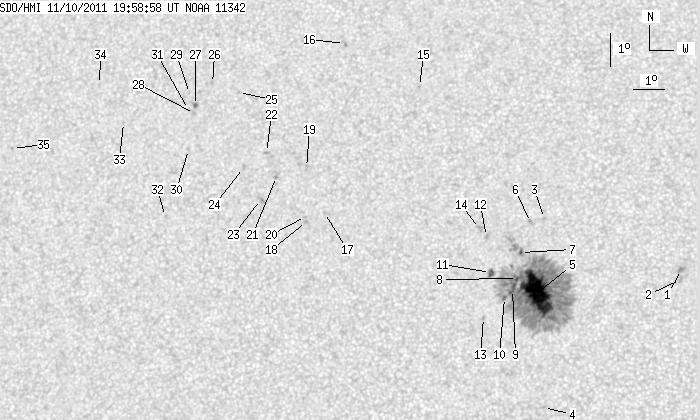

SDO HMI 2011-11-10 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.76 | 462.65 | 37.28 | 237.38 | 16.37 | 64.56 | -7.49 | 28.41 | 0.2596 | -645.7 | -421.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.96 | 0.00 | 2.02 | 16.72 | 69.73 | -2.32 | 9.54 | 0.2350 | -940.0 | -724.9 | |
| 0.00 | 2.76 | 0.00 | 1.40 | 16.42 | 69.70 | -2.35 | 9.88 | 0.2299 | -925.0 | -760.5 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 18.27 | 65.41 | -6.63 | 23.11 | 0.2808 | -642.0 | -503.1 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 12.53 | 65.57 | -6.48 | 34.69 | 0.1945 | -847.0 | -626.8 | |
| 59.24 | 412.00 | 30.28 | 210.59 | 16.00 | 65.28 | -6.77 | 27.38 | 0.2475 | -1428.7 | -486.2 | |
| 0.00 | 2.15 | 0.00 | 1.11 | 18.14 | 64.98 | -7.07 | 24.64 | 0.2818 | -734.0 | -623.5 | |
| 1.21 | -5.00 | 0.62 | -5.00 | 17.22 | 64.70 | -7.35 | 27.02 | 0.2700 | -889.9 | 999999 | |
| 1.38 | -5.00 | 0.71 | -5.00 | 16.43 | 64.64 | -7.41 | 28.69 | 0.2588 | -896.1 | 999999 | |
| 4.39 | -5.00 | 2.25 | -5.00 | 16.09 | 64.50 | -7.55 | 29.82 | 0.2551 | -842.0 | 999999 | |
| 1.46 | -5.00 | 0.75 | -5.00 | 15.84 | 64.26 | -7.79 | 31.10 | 0.2536 | -698.4 | 999999 | |
| 3.36 | 3.87 | 1.73 | 1.99 | 16.60 | 63.79 | -8.26 | 31.00 | 0.2685 | -809.1 | -703.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.70 | 63.61 | -8.43 | 29.42 | 0.2857 | -855.0 | -752.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 15.23 | 63.63 | -8.42 | 34.47 | 0.2508 | -944.0 | -813.7 | |
| 0.00 | 3.19 | 0.00 | 1.65 | 17.94 | 63.38 | -8.67 | 29.64 | 0.2912 | -570.0 | -582.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 22.33 | 61.18 | -10.87 | 28.19 | 0.3709 | -817.0 | -655.3 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 23.65 | 58.58 | -13.46 | 31.52 | 0.4097 | -696.0 | -710.0 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 18.38 | 58.42 | -13.63 | 40.67 | 0.3446 | 820.0 | 656.7 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 18.10 | 57.86 | -14.19 | 42.35 | 0.3473 | 967.0 | 757.2 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 19.76 | 57.72 | -14.33 | 39.41 | 0.3686 | 903.0 | 683.3 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 18.25 | 57.82 | -14.23 | 42.13 | 0.3496 | 768.0 | 557.3 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 19.47 | 56.77 | -15.28 | 41.70 | 0.3752 | 892.0 | 662.6 | |
| 0.00 | 1.89 | 0.00 | 1.02 | 20.20 | 56.37 | -15.68 | 41.05 | 0.3880 | 838.0 | 652.8 | |
| 0.00 | 2.67 | 0.00 | 1.42 | 18.75 | 56.31 | -15.73 | 43.89 | 0.3720 | 830.0 | 733.2 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 19.73 | 55.66 | -16.39 | 43.13 | 0.3902 | 838.0 | 608.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 22.06 | 55.23 | -16.82 | 39.76 | 0.4212 | 760.0 | 512.8 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 22.32 | 54.32 | -17.73 | 40.73 | 0.4335 | 182.0 | 326.7 | |
| 1.72 | 2.07 | 0.94 | 1.13 | 21.63 | 53.84 | -18.21 | 42.62 | 0.4308 | 961.5 | 836.2 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 21.38 | 53.84 | -18.21 | 43.05 | 0.4281 | 962.0 | 738.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 22.00 | 53.59 | -18.46 | 42.37 | 0.4375 | 468.0 | 312.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 20.25 | 53.78 | -18.27 | 45.12 | 0.4168 | 739.0 | 596.3 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 21.50 | 53.62 | -18.43 | 43.16 | 0.4318 | 632.0 | 545.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 18.18 | 53.26 | -18.79 | 49.84 | 0.4021 | 846.0 | 598.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 21.05 | 51.49 | -20.56 | 46.88 | 0.4509 | 510.0 | 414.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 22.22 | 50.49 | -21.56 | 46.17 | 0.4736 | 696.0 | 548.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 20.16 | 47.82 | -24.23 | 52.71 | 0.4863 | 534.0 | 547.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
