SDO HMI 2011-11-10 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.96 | 204.66 | 35.47 | 125.94 | -18.07 | 101.15 | 29.65 | 232.57 | 0.5936 | 19.3 | -30.1 | |
|
previous
or next observation for the same group /

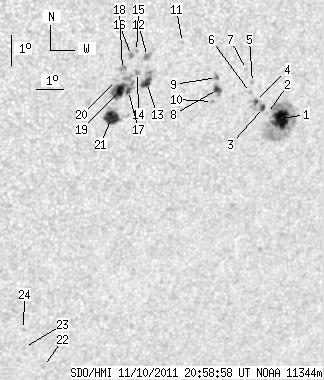

back to the solar disc SDO HMI 2011-11-10 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.98 | 86.02 | 12.67 | 54.61 | -18.49 | 103.84 | 32.34 | 234.34 | 0.6267 | 1059.8 | 300.2 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -18.32 | 103.32 | 31.82 | 234.18 | 0.6197 | 708.0 | 494.8 | |
| 2.58 | 13.00 | 1.62 | 8.13 | -18.12 | 103.13 | 31.64 | 234.30 | 0.6162 | 778.9 | 706.5 | |
| 1.38 | -3.00 | 0.86 | -3.00 | -17.92 | 102.80 | 31.30 | 234.31 | 0.6110 | 941.9 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.91 | -17.31 | 102.57 | 31.08 | 234.98 | 0.6040 | 733.0 | 597.8 | |
| 0.00 | 1.38 | 0.00 | 0.86 | -17.62 | 102.56 | 31.06 | 234.52 | 0.6062 | 922.0 | 720.4 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -16.89 | 102.28 | 30.78 | 235.34 | 0.5976 | 818.0 | 527.4 | |
| 4.05 | 6.89 | 2.48 | 4.22 | -17.49 | 101.34 | 29.85 | 233.68 | 0.5913 | 840.6 | 625.9 | |
| 0.69 | 3.01 | 0.42 | 1.84 | -17.11 | 101.24 | 29.74 | 234.14 | 0.5872 | 899.2 | 773.3 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -17.87 | 101.23 | 29.73 | 233.05 | 0.5930 | 608.0 | 543.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -15.96 | 99.84 | 28.34 | 234.59 | 0.5623 | -555.0 | -399.4 | |
| 0.00 | 4.82 | 0.00 | 2.86 | -16.37 | 98.68 | 27.18 | 232.88 | 0.5519 | -802.0 | -649.9 | |
| 6.63 | 13.69 | 3.96 | 8.17 | -17.19 | 98.77 | 27.28 | 231.74 | 0.5597 | -601.6 | -309.3 | |
| 0.00 | 2.07 | 0.00 | 1.23 | -16.87 | 98.41 | 26.91 | 231.87 | 0.5528 | -796.0 | -761.5 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -16.20 | 98.27 | 26.78 | 232.73 | 0.5458 | -763.0 | -678.2 | |
| 0.00 | 2.58 | 0.00 | 1.52 | -16.32 | 98.12 | 26.62 | 232.39 | 0.5450 | -1072.0 | -907.3 | |
| 2.41 | 31.26 | 1.43 | 18.53 | -17.43 | 98.18 | 26.69 | 230.81 | 0.5550 | -665.8 | -796.6 | |
| 0.00 | 5.94 | 0.00 | 3.51 | -16.76 | 97.87 | 26.37 | 231.49 | 0.5458 | -443.0 | -553.6 | |
| 6.03 | -17.00 | 3.57 | -17.00 | -17.42 | 97.87 | 26.37 | 230.50 | 0.5514 | -1062.3 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.27 | -17.10 | 97.71 | 26.22 | 230.82 | 0.5469 | -714.0 | -653.0 | |
| 14.21 | 22.30 | 8.46 | 13.29 | -18.28 | 97.73 | 26.23 | 229.11 | 0.5573 | -881.1 | -540.9 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -26.46 | 96.93 | 25.44 | 217.98 | 0.6271 | -597.0 | -474.1 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -25.79 | 96.08 | 24.59 | 217.82 | 0.6133 | -634.0 | -567.7 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -25.17 | 95.91 | 24.42 | 218.33 | 0.6056 | -702.0 | -619.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
