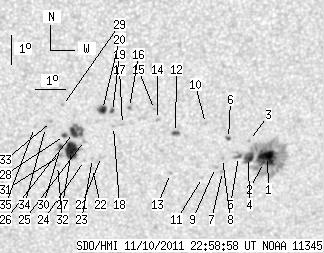

SDO HMI 2011-11-10 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.99 | 190.35 | 34.47 | 112.08 | -25.27 | 86.26 | 15.87 | 207.16 | 0.5409 | -82.1 | 146.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.66 | 107.91 | 7.57 | 64.49 | -25.55 | 88.84 | 18.45 | 210.70 | 0.5616 | 1101.7 | 401.9 | |
| 1.21 | -1.00 | 0.72 | -1.00 | -25.76 | 88.74 | 18.35 | 210.35 | 0.5632 | 885.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -25.00 | 88.14 | 17.75 | 210.30 | 0.5497 | 855.0 | 651.7 | |
| 7.92 | -1.00 | 4.72 | -1.00 | -25.57 | 88.19 | 17.80 | 209.79 | 0.5571 | 947.3 | 999999 | |
| 1.98 | -1.00 | 1.18 | -1.00 | -25.53 | 87.84 | 17.45 | 209.35 | 0.5540 | 804.8 | 999999 | |
| 1.46 | 2.24 | 0.86 | 1.32 | -24.92 | 87.40 | 17.01 | 209.36 | 0.5433 | 683.6 | 568.6 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -26.04 | 87.36 | 16.97 | 208.21 | 0.5569 | 798.0 | 674.7 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -25.59 | 87.29 | 16.90 | 208.55 | 0.5509 | 784.0 | 586.7 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -25.89 | 87.10 | 16.71 | 207.98 | 0.5533 | 586.0 | 434.2 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -24.40 | 86.55 | 16.16 | 208.65 | 0.5307 | -480.0 | -345.4 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -26.23 | 86.70 | 16.31 | 207.12 | 0.5548 | 657.0 | 543.3 | |
| 2.33 | 3.19 | 1.35 | 1.86 | -24.68 | 85.57 | 15.18 | 206.92 | 0.5276 | -796.1 | -621.6 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -26.07 | 85.58 | 15.19 | 205.66 | 0.5455 | -722.0 | -519.1 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -24.24 | 84.91 | 14.51 | 206.33 | 0.5173 | 588.0 | 506.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -23.90 | 84.77 | 14.38 | 206.43 | 0.5120 | 676.0 | 437.7 | |
| 1.03 | 1.55 | 0.59 | 0.89 | -23.82 | 83.92 | 13.53 | 205.16 | 0.5054 | -799.8 | -776.8 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -24.39 | 83.75 | 13.36 | 204.37 | 0.5119 | 512.0 | 405.6 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -24.45 | 83.45 | 13.06 | 203.85 | 0.5109 | 529.0 | 385.9 | |
| 1.46 | 2.07 | 0.84 | 1.18 | -23.95 | 83.37 | 12.98 | 204.15 | 0.5036 | -764.4 | -751.1 | |
| 4.74 | 6.55 | 2.71 | 3.74 | -23.87 | 83.03 | 12.64 | 203.66 | 0.5005 | -980.5 | -668.7 | |
| 0.00 | 2.07 | 0.00 | 1.20 | -25.46 | 83.16 | 12.77 | 202.53 | 0.5228 | -592.0 | -574.8 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -25.86 | 82.90 | 12.51 | 201.80 | 0.5268 | -676.0 | -503.4 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -25.52 | 82.86 | 12.47 | 202.01 | 0.5220 | -777.0 | -571.5 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -25.59 | 82.60 | 12.21 | 201.55 | 0.5214 | -602.0 | -495.7 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -24.91 | 82.53 | 12.14 | 201.97 | 0.5118 | -500.0 | -452.2 | |
| 4.74 | 12.92 | 2.72 | 7.41 | -24.63 | 82.13 | 11.74 | 201.55 | 0.5058 | -1098.1 | -850.5 | |
| 15.33 | 20.24 | 8.84 | 11.67 | -25.24 | 82.13 | 11.74 | 201.06 | 0.5141 | -940.9 | -509.4 | |
| 2.15 | 2.84 | 1.23 | 1.63 | -24.73 | 81.84 | 11.45 | 200.99 | 0.5055 | -951.3 | -776.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -23.72 | 81.69 | 11.30 | 201.53 | 0.4906 | 540.0 | 341.4 | |
| 1.98 | 3.36 | 1.14 | 1.93 | -25.10 | 81.75 | 11.35 | 200.54 | 0.5101 | -894.7 | -618.9 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -25.41 | 81.77 | 11.38 | 200.36 | 0.5145 | -583.0 | -551.9 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -25.74 | 81.71 | 11.32 | 200.00 | 0.5189 | -600.0 | -446.3 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -24.25 | 81.37 | 10.98 | 200.56 | 0.4963 | -822.0 | -703.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -24.45 | 81.19 | 10.80 | 200.10 | 0.4982 | -738.0 | -630.2 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -24.45 | 80.82 | 10.43 | 199.48 | 0.4962 | -717.0 | -576.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
