group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	267.00	1670.23	171.00	1058.57	19.06	106.02	36.18	296.87	0.6269	-393.7	-282.0

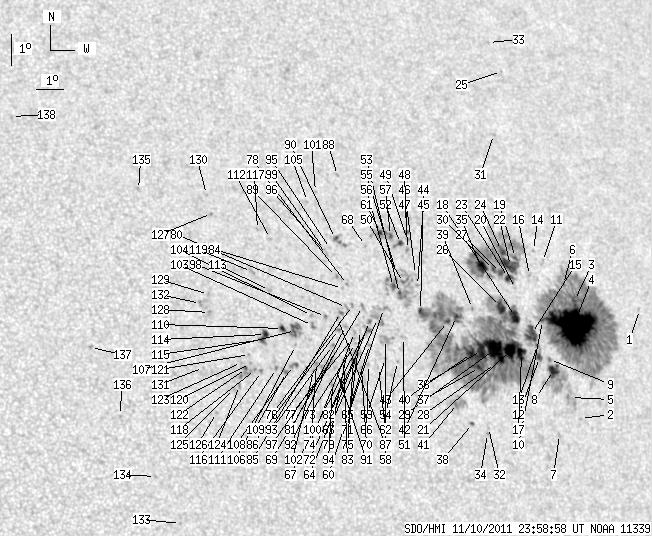

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-10 23:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.78	0.00	0.53	19.33	111.67	41.84	294.67	0.6950	-487.0	-375.4
2	0.00	1.29	0.00	0.83	16.09	108.38	38.54	291.23	0.6446	356.0	294.1
3	1.81	504.29	1.20	332.79	19.70	109.09	39.25	296.25	0.6664	-505.6	-252.1
4	91.21	-3.00	60.01	-3.00	18.94	108.83	38.99	295.26	0.6603	-1126.0	999999
5	0.00	13.87	0.00	8.96	16.74	108.14	38.30	292.30	0.6438	-454.0	-195.4
6	1.03	-3.00	0.68	-3.00	20.21	108.79	38.95	297.11	0.6651	-367.0	999999
7	0.00	1.55	0.00	0.99	15.64	107.45	37.62	290.88	0.6314	-683.0	-560.8
8	9.56	40.57	6.16	26.11	17.59	107.67	37.83	293.76	0.6411	-846.7	-405.2
9	0.00	1.64	0.00	1.05	17.93	107.60	37.76	294.30	0.6416	-872.0	-789.7
10	1.03	-3.00	0.67	-3.00	19.13	107.64	37.80	296.07	0.6469	-874.3	999999
11	0.00	1.98	0.00	1.30	20.95	108.16	38.32	298.46	0.6610	-349.0	-378.1
12	3.27	29.20	2.10	18.73	18.01	107.22	37.38	294.58	0.6373	-800.0	-678.7
13	1.21	-12.00	0.77	-12.00	18.37	107.24	37.40	295.13	0.6390	-834.1	999999
14	0.00	1.21	0.00	0.79	21.31	107.90	38.06	299.09	0.6596	-299.0	-139.1
15	12.49	-12.00	8.02	-12.00	18.75	107.10	37.26	295.75	0.6388	-704.1	999999
16	0.00	1.29	0.00	0.84	20.54	107.51	37.67	298.18	0.6516	-585.0	-350.1
17	7.32	624.53	4.66	390.20	18.15	106.55	36.71	295.11	0.6297	-911.3	-555.1
18	9.22	-17.00	5.89	-17.00	19.29	106.61	36.77	296.80	0.6353	-877.4	999999
19	1.12	167.09	0.73	107.58	21.12	107.12	37.28	299.22	0.6497	-600.8	-300.7
20	0.00	0.95	0.00	0.61	20.16	106.84	37.00	297.96	0.6420	-619.0	-486.8
21	11.46	-17.00	7.25	-17.00	18.26	106.15	36.31	295.46	0.6251	-1070.3	999999
22	14.64	-19.00	9.47	-19.00	20.87	106.85	37.01	299.01	0.6454	-632.5	999999
23	4.05	-19.00	2.61	-19.00	20.51	106.66	36.82	298.56	0.6415	-841.7	999999
24	4.82	-19.00	3.12	-19.00	21.35	106.63	36.79	299.81	0.6451	-598.7	999999
25	0.00	0.86	0.00	0.59	27.01	108.61	38.77	306.48	0.6961	-458.0	-339.1
26	7.92	-17.00	5.05	-17.00	19.62	106.11	36.27	297.54	0.6307	-896.4	999999
27	3.45	-19.00	2.21	-19.00	20.67	106.39	36.55	298.95	0.6391	-818.5	999999
28	1.03	-17.00	0.65	-17.00	17.88	105.48	35.64	295.20	0.6152	-1039.8	999999
29	26.61	-17.00	16.73	-17.00	18.31	105.54	35.70	295.83	0.6179	-1116.1	999999
30	2.84	-19.00	1.82	-19.00	20.77	106.14	36.30	299.23	0.6366	-711.7	999999
31	0.00	1.38	0.00	0.92	25.00	107.50	37.66	304.45	0.6737	-578.0	-496.5
32	0.00	1.03	0.00	0.64	15.94	104.79	34.96	292.47	0.5984	731.0	528.5
33	0.00	1.21	0.00	0.83	27.96	108.45	38.61	307.80	0.6999	-629.0	-514.4
34	0.00	0.95	0.00	0.58	15.76	104.72	34.88	292.21	0.5967	516.0	453.7
35	8.53	-19.00	5.44	-19.00	20.85	105.69	35.85	299.59	0.6317	-1116.6	999999
36	8.10	-17.00	5.06	-17.00	18.29	105.04	35.20	296.07	0.6116	-1133.2	999999
37	1.21	-17.00	0.75	-17.00	17.78	104.84	35.01	295.36	0.6068	-1224.4	999999
38	0.95	1.21	0.58	0.74	16.08	104.22	34.38	292.96	0.5915	673.2	649.0
39	0.00	1.12	0.00	0.70	19.60	105.01	35.17	298.08	0.6173	-737.0	-639.9
40	2.67	-17.00	1.66	-17.00	18.21	104.64	34.80	296.15	0.6062	-1161.1	999999
41	0.00	13.87	0.00	8.48	16.71	103.78	33.94	294.19	0.5885	-412.0	-378.7
42	1.38	-17.00	0.86	-17.00	19.37	104.34	34.50	298.10	0.6080	-881.9	999999
43	2.15	-17.00	1.33	-17.00	19.23	103.96	34.12	298.09	0.6027	-1011.4	999999
44	0.78	-17.00	0.48	-17.00	19.60	103.03	33.19	299.22	0.5931	250.3	999999
45	0.00	1.21	0.00	0.74	20.37	103.10	33.26	300.38	0.5982	536.0	373.2
46	0.00	0.86	0.00	0.53	20.71	103.11	33.27	300.90	0.6002	402.0	343.7
47	1.29	1.72	0.80	1.07	22.06	103.15	33.31	302.91	0.6085	-633.8	-637.6
48	0.00	1.89	0.00	1.17	21.50	103.00	33.16	302.16	0.6035	-884.0	-723.5
49	0.00	1.55	0.00	0.96	21.81	103.08	33.24	302.58	0.6063	-729.0	-660.3
50	1.12	32.56	0.69	19.97	20.48	102.59	32.76	300.87	0.5927	628.5	248.5
51	0.00	1.89	0.00	1.15	18.78	102.21	32.37	298.43	0.5786	-670.0	-689.1
52	2.07	3.96	1.28	2.45	21.69	102.78	32.95	302.60	0.6021	-858.9	-796.1
53	1.21	-50.00	0.74	-50.00	20.14	102.36	32.52	300.49	0.5880	775.0	999999
54	0.00	0.86	0.00	0.52	18.06	101.83	31.99	297.48	0.5700	-405.0	-323.8
55	0.00	0.34	0.00	0.21	20.80	102.41	32.57	301.48	0.5923	110.0	218.0
56	2.41	12.06	1.47	7.36	20.37	102.19	32.35	300.95	0.5872	826.3	643.8
57	1.72	14.90	1.06	9.18	21.96	102.47	32.63	303.20	0.6000	-989.8	-656.1
58	0.00	9.13	0.00	5.49	18.74	101.53	31.69	298.79	0.5699	-216.0	-159.6
59	0.00	0.95	0.00	0.57	18.16	101.41	31.57	297.91	0.5652	390.0	269.0
60	0.00	5.17	0.00	3.13	19.70	101.66	31.82	300.24	0.5769	-174.0	-260.1
61	1.81	-57.00	1.11	-57.00	22.06	102.12	32.28	303.60	0.5965	-896.6	999999
62	0.00	0.69	0.00	0.41	17.89	101.10	31.26	297.66	0.5598	555.0	444.0
63	0.00	8.18	0.00	4.93	19.40	101.37	31.54	299.95	0.5716	-41.0	-126.7
64	0.43	2.15	0.26	1.29	19.31	101.06	31.22	300.02	0.5672	496.0	381.5
65	0.00	1.72	0.00	1.03	18.61	100.91	31.08	298.97	0.5613	467.0	319.1
66	0.00	1.81	0.00	1.08	18.00	100.76	30.92	298.06	0.5559	567.0	337.8
67	0.00	5.34	0.00	3.20	19.07	100.90	31.06	299.74	0.5638	641.0	487.7
68	0.00	1.03	0.00	0.63	21.67	101.45	31.61	303.47	0.5862	-269.0	-248.8
69	0.00	2.84	0.00	1.71	19.78	100.90	31.07	300.89	0.5680	518.0	386.9
70	0.00	1.29	0.00	0.77	17.91	100.48	30.65	298.09	0.5519	647.0	530.6
71	0.00	1.03	0.00	0.62	19.05	100.67	30.84	299.85	0.5608	621.0	489.8
72	0.60	3.36	0.36	1.99	18.35	100.39	30.55	298.88	0.5531	716.6	569.8
73	0.00	0.95	0.00	0.56	18.65	100.41	30.57	299.38	0.5552	764.0	610.5
74	0.00	1.55	0.00	0.92	18.99	100.44	30.60	299.92	0.5576	709.0	536.4
75	1.98	2.33	1.17	1.38	18.13	100.24	30.40	298.63	0.5500	763.4	705.8
76	0.00	1.72	0.00	1.03	19.83	100.55	30.71	301.21	0.5638	607.0	493.5
77	0.00	1.38	0.00	0.82	18.81	100.33	30.49	299.69	0.5551	699.0	540.8
78	0.00	1.21	0.00	0.72	20.48	100.50	30.67	302.29	0.5674	670.0	495.6
79	0.00	0.34	0.00	0.20	18.45	100.08	30.24	299.26	0.5498	681.0	587.0
80	0.00	2.15	0.00	1.29	19.77	100.31	30.47	301.28	0.5606	575.0	517.1
81	0.00	1.12	0.00	0.67	19.19	100.16	30.32	300.44	0.5551	728.0	596.0
82	0.00	1.81	0.00	1.07	17.71	99.87	30.03	298.16	0.5429	667.0	486.0
83	0.00	0.52	0.00	0.30	18.14	99.88	30.04	298.89	0.5455	622.0	598.8
84	0.00	1.03	0.00	0.62	20.36	100.29	30.46	302.25	0.5641	608.0	525.0
85	0.00	2.76	0.00	1.64	19.62	100.06	30.22	301.22	0.5566	780.0	652.4
86	0.00	1.46	0.00	0.87	19.10	99.88	30.04	300.49	0.5512	844.0	784.3
87	0.00	1.21	0.00	0.72	19.47	99.92	30.08	301.07	0.5539	852.0	710.7
88	0.00	1.38	0.00	0.85	23.90	100.97	31.13	307.17	0.5954	429.0	366.1
89	0.00	1.46	0.00	0.88	20.74	100.16	30.32	302.95	0.5648	739.0	644.6
90	1.21	7.49	0.73	4.53	21.92	100.39	30.55	304.63	0.5754	691.7	537.8
91	0.00	1.72	0.00	1.01	17.94	99.55	29.71	298.77	0.5400	726.0	574.0
92	0.00	1.03	0.00	0.61	18.43	99.61	29.77	299.56	0.5437	672.0	625.2
93	0.00	1.98	0.00	1.17	18.61	99.57	29.73	299.90	0.5443	890.0	695.2
94	0.00	3.19	0.00	1.86	17.45	99.35	29.51	298.06	0.5347	680.0	627.6
95	0.00	1.03	0.00	0.62	21.62	100.13	30.30	304.35	0.5703	471.0	402.8
96	0.00	1.29	0.00	0.78	21.43	99.98	30.14	304.18	0.5672	757.0	633.1
97	0.00	8.44	0.00	4.95	18.01	99.24	29.40	299.10	0.5365	714.0	675.6
98	0.00	1.03	0.00	0.61	19.51	99.49	29.66	301.46	0.5489	916.0	815.3
99	0.00	1.12	0.00	0.67	21.59	99.91	30.07	304.49	0.5674	829.0	643.6
100	0.00	1.81	0.00	1.06	18.08	98.89	29.06	299.47	0.5324	961.0	811.4
101	0.00	1.03	0.00	0.63	23.42	100.01	30.17	307.20	0.5813	661.0	532.3
102	0.00	1.29	0.00	0.75	17.87	98.75	28.91	299.21	0.5293	841.0	583.0
103	0.00	3.19	0.00	1.87	19.25	98.97	29.13	301.41	0.5406	1003.0	736.4
104	0.00	1.03	0.00	0.61	19.56	99.00	29.16	301.90	0.5429	824.0	636.7
105	0.00	0.86	0.00	0.52	23.11	99.64	29.80	307.04	0.5748	532.0	421.9
106	0.00	0.78	0.00	0.45	18.65	98.25	28.41	300.94	0.5277	715.0	628.9
107	0.00	13.87	0.00	8.10	19.11	98.33	28.50	301.66	0.5318	1029.0	851.4
108	0.00	3.88	0.00	2.25	18.04	98.07	28.23	300.02	0.5215	996.0	799.7
109	1.03	3.19	0.60	1.84	17.83	97.78	27.95	299.87	0.5166	751.8	681.5
110	2.50	4.56	1.45	2.66	19.19	97.88	28.05	302.15	0.5266	921.7	767.8
111	0.00	1.38	0.00	0.79	17.96	97.45	27.61	300.36	0.5131	951.0	756.4
112	0.00	1.21	0.00	0.71	21.99	98.02	28.18	306.64	0.5479	737.0	591.3
113	0.00	1.21	0.00	0.70	20.37	97.65	27.81	304.34	0.5317	893.0	660.8
114	2.84	8.18	1.64	4.72	19.02	97.25	27.41	302.37	0.5174	899.5	829.8
115	1.89	-114.00	1.09	-114.00	18.87	97.12	27.28	302.22	0.5147	990.9	999999
116	0.00	1.64	0.00	0.94	17.89	96.91	27.07	300.66	0.5056	805.0	656.9
117	0.00	1.12	0.00	0.66	22.28	97.61	27.77	307.46	0.5453	728.0	499.8
118	0.00	1.12	0.00	0.64	17.95	96.71	26.88	300.94	0.5034	877.0	732.2
119	0.00	2.07	0.00	1.21	20.98	97.12	27.28	305.79	0.5298	710.0	591.7
120	0.00	0.86	0.00	0.49	18.14	96.57	26.73	301.40	0.5028	825.0	675.0
121	0.00	0.69	0.00	0.39	18.42	96.58	26.74	301.88	0.5048	711.0	625.5
122	1.03	9.56	0.59	5.45	17.99	96.41	26.57	301.27	0.4997	960.0	780.1
123	0.00	0.86	0.00	0.49	18.18	96.26	26.42	301.73	0.4991	852.0	704.5
124	0.00	2.07	0.00	1.17	17.48	96.08	26.24	300.61	0.4920	814.0	657.8
125	0.00	1.98	0.00	1.12	17.39	95.86	26.02	300.64	0.4885	836.0	690.8
126	0.00	1.12	0.00	0.63	16.67	95.17	25.33	299.88	0.4746	722.0	576.6
127	0.00	1.03	0.00	0.60	22.83	96.06	26.22	309.74	0.5318	798.0	702.5
128	0.00	2.15	0.00	1.23	19.75	95.41	25.57	305.27	0.4996	771.0	724.6
129	0.00	1.72	0.00	0.99	20.30	95.47	25.63	306.18	0.5046	683.0	463.2
130	0.00	1.21	0.00	0.71	23.43	96.01	26.17	310.73	0.5362	676.0	546.0
131	0.00	0.52	0.00	0.29	18.06	94.92	25.08	302.70	0.4810	687.0	558.7
132	0.00	2.33	0.00	1.33	20.03	95.14	25.30	306.02	0.4985	849.0	617.7
133	0.00	0.86	0.00	0.47	13.34	93.54	23.70	294.47	0.4315	786.0	638.9
134	0.00	1.12	0.00	0.61	14.78	92.86	23.02	298.15	0.4307	711.0	478.8
135	0.00	1.89	0.00	1.09	23.64	93.62	23.78	313.54	0.5117	617.0	451.1
136	0.00	0.86	0.00	0.47	16.66	91.91	22.07	303.01	0.4312	557.0	433.7
137	0.00	1.89	0.00	1.04	18.76	91.17	21.34	308.00	0.4390	844.0	652.2
138	0.00	1.03	0.00	0.59	26.06	89.59	19.75	322.02	0.4954	723.0	599.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
