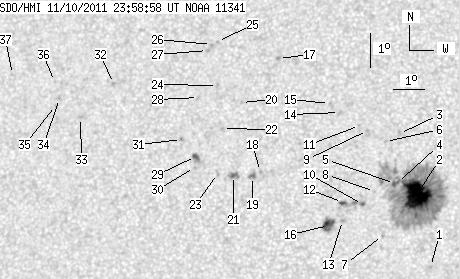

SDO HMI 2011-11-10 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.40 | 362.36 | 35.14 | 186.22 | 9.64 | 55.81 | -14.03 | 64.90 | 0.2646 | -435.4 | -380.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-10 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.66 | 7.29 | 57.39 | -12.45 | 71.94 | 0.2259 | -805.0 | -653.8 | |
| 45.56 | 285.87 | 23.28 | 146.13 | 9.43 | 56.89 | -12.95 | 64.18 | 0.2467 | -1438.7 | -471.2 | |
| 0.00 | 2.15 | 0.00 | 1.11 | 11.24 | 56.28 | -13.55 | 58.92 | 0.2696 | -811.0 | -653.3 | |
| 0.26 | -2.00 | 0.13 | -2.00 | 9.78 | 56.29 | -13.55 | 63.88 | 0.2583 | -910.0 | 999999 | |
| 1.98 | -2.00 | 1.02 | -2.00 | 9.75 | 56.20 | -13.64 | 64.14 | 0.2595 | -808.7 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 11.00 | 55.86 | -13.98 | 60.45 | 0.2738 | -854.0 | -621.7 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 8.19 | 55.89 | -13.95 | 70.24 | 0.2548 | -785.0 | -573.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 9.50 | 55.59 | -14.25 | 65.91 | 0.2672 | -651.0 | -487.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 11.32 | 55.28 | -14.56 | 60.38 | 0.2848 | -787.0 | -626.7 | |
| 1.38 | 1.98 | 0.71 | 1.02 | 9.11 | 55.23 | -14.61 | 67.76 | 0.2703 | -754.1 | -762.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 11.47 | 55.02 | -14.81 | 60.34 | 0.2897 | -685.0 | -553.4 | |
| 2.33 | 9.90 | 1.20 | 5.10 | 9.16 | 54.61 | -15.23 | 68.37 | 0.2803 | -632.8 | -393.1 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 8.62 | 54.63 | -15.21 | 70.17 | 0.2770 | 873.0 | 709.7 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 11.85 | 54.38 | -15.46 | 60.20 | 0.3021 | 846.0 | 772.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 12.11 | 54.04 | -15.79 | 59.92 | 0.3089 | 784.0 | 632.0 | |
| 9.65 | 11.63 | 4.98 | 6.00 | 8.46 | 54.20 | -15.64 | 71.17 | 0.2830 | 960.3 | 611.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 13.44 | 52.33 | -17.51 | 58.76 | 0.3437 | 922.0 | 799.4 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 10.04 | 51.99 | -17.85 | 68.50 | 0.3259 | -1003.0 | -805.3 | |
| 2.33 | 4.22 | 1.22 | 2.21 | 9.89 | 51.74 | -18.10 | 69.19 | 0.3288 | -871.7 | -725.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 12.09 | 51.25 | -18.59 | 63.61 | 0.3495 | 896.0 | 627.9 | |
| 2.07 | 5.51 | 1.09 | 2.90 | 9.90 | 51.14 | -18.70 | 69.70 | 0.3383 | -1003.2 | -878.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 11.30 | 50.70 | -19.14 | 66.30 | 0.3527 | 861.0 | 615.9 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 9.95 | 50.62 | -19.21 | 70.02 | 0.3464 | -777.0 | -641.8 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 12.59 | 50.44 | -19.40 | 63.24 | 0.3646 | 927.0 | 641.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 13.91 | 50.33 | -19.51 | 60.12 | 0.3755 | 842.0 | 631.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 13.82 | 50.14 | -19.70 | 60.56 | 0.3774 | 792.0 | 782.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 13.64 | 50.03 | -19.81 | 61.13 | 0.3777 | 867.0 | 720.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 12.22 | 49.86 | -19.98 | 64.79 | 0.3708 | 763.0 | 609.7 | |
| 2.84 | 5.51 | 1.51 | 2.92 | 10.45 | 49.89 | -19.95 | 69.32 | 0.3603 | -779.5 | -905.4 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 10.12 | 49.88 | -19.96 | 70.20 | 0.3588 | -865.0 | -622.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 10.95 | 49.40 | -20.44 | 68.43 | 0.3702 | 1024.0 | 852.9 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 12.58 | 47.05 | -22.79 | 66.48 | 0.4141 | 906.0 | 806.9 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 11.54 | 46.05 | -23.79 | 69.61 | 0.4234 | 913.0 | 726.4 | |
| 0.00 | 2.15 | 0.00 | 1.18 | 12.09 | 45.30 | -24.54 | 68.89 | 0.4371 | 924.0 | 754.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 11.88 | 45.19 | -24.65 | 69.43 | 0.4378 | 948.0 | 764.6 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 12.59 | 45.09 | -24.75 | 67.95 | 0.4428 | 624.0 | 462.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 12.77 | 43.65 | -26.19 | 68.54 | 0.4644 | 577.0 | 534.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
