SDO HMI 2011-11-11 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.87 | 188.14 | 36.50 | 111.90 | -25.29 | 86.47 | 17.73 | 209.77 | 0.5539 | -37.5 | 85.9 | |
|
previous
or next observation for the same group /

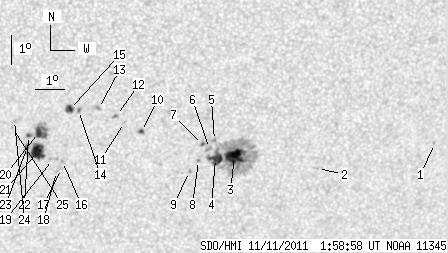

back to the solar disc SDO HMI 2011-11-11 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.71 | -25.28 | 96.00 | 27.26 | 221.18 | 0.6314 | -800.0 | -663.7 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -26.02 | 91.91 | 23.17 | 216.01 | 0.6035 | -583.0 | -502.4 | |
| 16.37 | 108.89 | 9.88 | 65.74 | -25.54 | 88.87 | 20.13 | 212.89 | 0.5739 | 1057.2 | 331.6 | |
| 12.06 | -3.00 | 7.25 | -3.00 | -25.60 | 88.21 | 19.47 | 212.00 | 0.5695 | 875.5 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.34 | -24.99 | 88.07 | 19.33 | 212.46 | 0.5613 | 841.0 | 730.2 | |
| 0.00 | 2.76 | 0.00 | 1.65 | -25.25 | 87.94 | 19.20 | 212.01 | 0.5634 | 833.0 | 678.3 | |
| 1.29 | 2.24 | 0.77 | 1.34 | -25.11 | 87.68 | 18.94 | 211.81 | 0.5598 | 800.1 | 668.9 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -25.65 | 87.63 | 18.89 | 211.18 | 0.5658 | 805.0 | 714.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -26.02 | 87.37 | 18.64 | 210.48 | 0.5683 | 799.0 | 714.9 | |
| 1.81 | 2.41 | 1.06 | 1.41 | -24.63 | 85.51 | 16.77 | 209.31 | 0.5378 | -797.0 | -673.4 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -24.32 | 84.89 | 16.15 | 208.73 | 0.5294 | 488.0 | 390.5 | |
| 1.21 | 2.07 | 0.70 | 1.20 | -24.08 | 84.58 | 15.85 | 208.52 | 0.5242 | 730.6 | 660.5 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -23.84 | 83.95 | 15.21 | 207.80 | 0.5166 | -918.0 | -769.8 | |
| 0.52 | 1.81 | 0.30 | 1.04 | -23.89 | 83.28 | 14.54 | 206.72 | 0.5127 | -862.2 | -633.8 | |
| 5.17 | 5.69 | 2.97 | 3.27 | -23.86 | 82.98 | 14.24 | 206.27 | 0.5102 | -963.2 | -751.2 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -25.60 | 82.94 | 14.21 | 204.63 | 0.5331 | -644.0 | -539.6 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -25.84 | 82.94 | 14.20 | 204.42 | 0.5362 | -511.0 | -431.0 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -25.94 | 82.78 | 14.04 | 204.10 | 0.5365 | -528.0 | -411.6 | |
| 0.00 | 4.22 | 0.00 | 2.46 | -25.53 | 82.60 | 13.86 | 204.17 | 0.5300 | -380.0 | -407.8 | |
| 4.65 | 16.02 | 2.68 | 9.24 | -24.61 | 82.02 | 13.28 | 204.07 | 0.5142 | -1096.9 | -813.0 | |
| 15.25 | 24.64 | 8.85 | 14.29 | -25.25 | 82.06 | 13.32 | 203.58 | 0.5230 | -928.9 | -625.3 | |
| 1.64 | 2.41 | 0.94 | 1.39 | -24.71 | 81.69 | 12.96 | 203.47 | 0.5135 | -844.9 | -896.7 | |
| 1.90 | -21.00 | 1.10 | -21.00 | -25.08 | 81.70 | 12.96 | 203.16 | 0.5185 | -894.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -24.20 | 81.17 | 12.44 | 203.06 | 0.5034 | -786.0 | -761.5 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -24.43 | 81.13 | 12.39 | 202.79 | 0.5064 | -703.0 | -590.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
