group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	273.64	1607.92	178.87	1040.37	19.04	106.06	37.87	296.04	0.6473	-395.3	-282.4

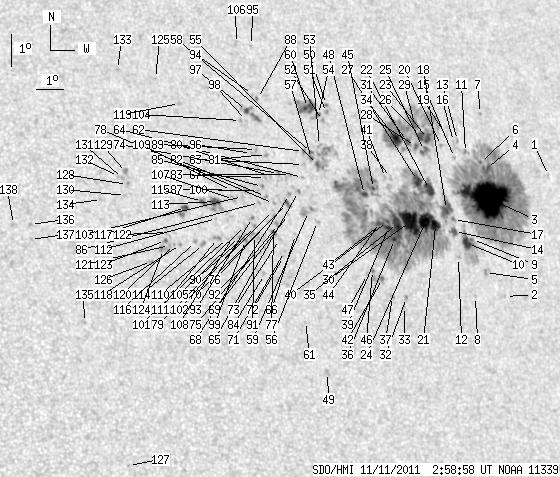

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-11 02:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.95	0.00	0.67	19.53	111.60	43.41	294.40	0.7136	-370.0	-304.0
2	0.00	1.21	0.00	0.80	15.91	108.75	40.56	290.28	0.6689	588.0	379.0
3	98.64	473.58	66.46	320.06	18.92	108.86	40.67	294.57	0.6802	-1112.6	-222.2
4	4.05	-3.00	2.75	-3.00	19.85	109.06	40.87	295.79	0.6859	-415.0	999999
5	0.00	1.98	0.00	1.31	16.67	108.12	39.93	291.60	0.6637	-685.0	-573.5
6	1.12	-3.00	0.76	-3.00	20.04	108.87	40.68	296.14	0.6845	-466.9	999999
7	0.00	1.38	0.00	0.95	21.56	109.37	41.18	298.02	0.6961	730.0	558.6
8	0.00	1.21	0.00	0.79	15.96	107.54	39.35	290.75	0.6543	-624.0	-525.0
9	1.21	36.70	0.80	24.16	17.69	107.86	39.67	293.19	0.6640	-581.1	-465.4
10	7.24	-9.00	4.76	-9.00	17.58	107.63	39.44	293.12	0.6607	-838.2	999999
11	0.00	2.84	0.00	1.92	20.37	108.35	40.16	296.82	0.6798	-605.0	-450.3
12	0.00	1.12	0.00	0.73	17.17	107.16	38.97	292.69	0.6536	-653.0	-538.8
13	0.00	1.64	0.00	1.10	20.76	108.14	39.95	297.45	0.6789	433.0	367.9
14	3.88	6.63	2.54	4.34	17.96	107.20	39.01	293.85	0.6570	-745.4	-591.2
15	0.00	1.38	0.00	0.92	20.24	107.85	39.66	296.85	0.6735	-561.0	-371.4
16	0.00	0.86	0.00	0.58	20.73	107.96	39.77	297.49	0.6769	553.0	329.7
17	0.00	2.07	0.00	1.36	18.33	107.26	39.07	294.36	0.6591	-819.0	-721.8
18	9.39	661.04	6.16	421.63	18.65	107.06	38.87	294.91	0.6580	-741.1	-537.5
19	0.00	1.21	0.00	0.81	20.93	107.74	39.55	297.87	0.6751	-352.0	-215.7
20	0.00	1.03	0.00	0.69	20.63	107.44	39.25	297.58	0.6704	-663.0	-485.6
21	7.67	-18.00	4.98	-18.00	18.17	106.50	38.31	294.45	0.6493	-915.7	999999
22	9.05	-18.00	5.91	-18.00	19.29	106.55	38.36	296.06	0.6545	-896.6	999999
23	3.88	146.11	2.57	96.11	20.86	106.93	38.74	298.15	0.6656	-798.2	-300.8
24	14.82	-18.00	9.59	-18.00	18.31	106.13	37.94	294.81	0.6454	-1003.9	999999
25	3.88	7.32	2.55	4.82	20.49	106.70	38.51	297.74	0.6613	-815.9	-632.7
26	4.31	-23.00	2.84	-23.00	20.96	106.68	38.49	298.42	0.6632	-686.3	999999
27	7.06	-18.00	4.60	-18.00	19.58	106.15	37.96	296.67	0.6509	-897.7	999999
28	1.81	-23.00	1.19	-23.00	20.63	106.38	38.19	298.09	0.6582	-822.8	999999
29	4.65	-23.00	3.07	-23.00	21.35	106.55	38.36	299.02	0.6634	-562.3	999999
30	27.57	-18.00	17.69	-18.00	18.33	105.54	37.35	295.11	0.6384	-1102.8	999999
31	3.10	-23.00	2.03	-23.00	20.80	106.10	37.91	298.46	0.6557	-643.4	999999
32	0.00	1.81	0.00	1.14	16.02	104.85	36.66	291.88	0.6207	647.0	519.7
33	0.00	0.78	0.00	0.49	15.75	104.71	36.52	291.51	0.6180	656.0	458.6
34	6.12	-23.00	3.98	-23.00	20.84	105.71	37.52	298.72	0.6514	-1074.5	999999
35	8.79	-18.00	5.60	-18.00	18.29	105.02	36.83	295.28	0.6318	-1124.8	999999
36	1.46	-18.00	0.93	-18.00	17.80	104.79	36.60	294.65	0.6269	-1255.9	999999
37	0.00	2.67	0.00	1.67	16.07	104.32	36.13	292.18	0.6141	676.0	429.4
38	0.00	2.07	0.00	1.33	19.71	105.12	36.93	297.36	0.6391	-624.0	-512.1
39	2.41	-18.00	1.53	-18.00	18.18	104.64	36.45	295.29	0.6267	-1221.6	999999
40	1.21	-18.00	0.77	-18.00	18.36	104.65	36.46	295.57	0.6275	-857.9	999999
41	0.00	1.55	0.00	0.99	19.71	104.92	36.73	297.47	0.6368	-180.0	-179.4
42	1.55	9.91	0.97	6.18	16.63	104.06	35.87	293.17	0.6129	-533.1	-402.5
43	0.86	-18.00	0.54	-18.00	18.31	104.40	36.21	295.61	0.6243	-1057.2	999999
44	0.95	-18.00	0.60	-18.00	18.28	104.28	36.09	295.63	0.6226	-1033.0	999999
45	1.03	-18.00	0.66	-18.00	19.39	104.36	36.17	297.27	0.6287	-930.2	999999
46	0.34	-42.00	0.21	-42.00	16.88	103.73	35.54	293.73	0.6098	-816.0	999999
47	0.00	1.90	0.00	1.18	16.77	103.51	35.32	293.64	0.6066	-253.0	-232.1
48	2.50	-18.00	1.58	-18.00	19.22	103.97	35.78	297.21	0.6231	-1025.0	999999
49	0.00	2.41	0.00	1.45	13.85	101.47	33.28	289.77	0.5684	468.0	439.2
50	0.00	1.38	0.00	0.88	22.05	103.25	35.06	301.83	0.6289	-730.0	-615.6
51	0.00	2.41	0.00	1.53	21.80	103.18	34.99	301.51	0.6268	-868.0	-667.3
52	0.00	2.41	0.00	1.52	21.56	102.95	34.76	301.28	0.6228	-872.0	-694.8
53	0.00	1.98	0.00	1.24	20.79	102.63	34.44	300.32	0.6148	540.0	473.7
54	1.90	3.62	1.20	2.28	21.75	102.85	34.66	301.63	0.6227	-913.0	-702.9
55	2.24	26.79	1.40	16.78	20.20	102.40	34.21	299.57	0.6090	721.5	310.0
56	0.00	1.98	0.00	1.22	18.45	101.99	33.80	297.08	0.5949	527.0	394.3
57	1.12	5.17	0.70	3.22	20.39	102.22	34.03	299.97	0.6078	816.3	699.7
58	0.43	-57.00	0.27	-57.00	20.58	102.27	34.08	300.22	0.6094	745.4	999999
59	0.00	10.17	0.00	6.24	18.76	101.72	33.53	297.74	0.5931	-312.0	-362.3
60	9.39	20.59	5.91	12.96	21.98	102.49	34.30	302.19	0.6197	-935.3	-696.0
61	0.00	0.26	0.00	0.16	15.41	100.93	32.74	292.69	0.5673	456.0	403.0
62	0.00	2.15	0.00	1.34	20.62	101.97	33.78	300.46	0.6060	707.0	631.8
63	0.00	2.33	0.00	1.44	20.22	101.87	33.68	299.91	0.6026	643.0	406.4
64	0.00	1.03	0.00	0.64	19.82	101.74	33.55	299.37	0.5988	-447.0	-377.3
65	0.00	1.38	0.00	0.85	19.39	101.48	33.29	298.86	0.5935	-295.0	-492.8
66	0.00	0.60	0.00	0.37	18.07	101.08	32.89	297.00	0.5816	507.0	365.3
67	0.00	1.21	0.00	0.74	19.92	101.31	33.12	299.80	0.5942	216.0	70.6
68	0.00	2.07	0.00	1.26	19.31	101.13	32.94	298.95	0.5886	404.0	326.7
69	0.00	0.95	0.00	0.58	18.69	100.95	32.76	298.08	0.5832	358.0	292.9
70	2.41	4.22	1.47	2.57	19.03	100.99	32.80	298.60	0.5855	461.6	416.0
71	0.00	0.86	0.00	0.52	17.57	100.57	32.38	296.48	0.5725	517.0	551.9
72	0.00	0.78	0.00	0.47	17.41	100.50	32.31	296.27	0.5709	583.0	389.7
73	0.00	1.03	0.00	0.62	17.94	100.46	32.27	297.15	0.5730	373.0	381.0
74	0.00	2.41	0.00	1.48	19.97	100.87	32.68	300.15	0.5890	503.0	390.1
75	0.00	4.05	0.00	2.45	18.40	100.52	32.33	297.86	0.5762	603.0	527.0
76	0.00	1.38	0.00	0.83	18.68	100.43	32.24	298.37	0.5765	733.0	538.9
77	1.90	2.50	1.14	1.51	18.19	100.29	32.10	297.66	0.5722	731.3	565.0
78	0.00	1.21	0.00	0.73	19.05	100.47	32.28	298.94	0.5791	445.0	473.6
79	0.00	1.12	0.00	0.68	18.83	100.42	32.23	298.62	0.5773	666.0	539.3
80	0.00	1.29	0.00	0.79	19.88	100.55	32.36	300.22	0.5847	565.0	452.9
81	0.00	2.67	0.00	1.63	20.57	100.56	32.37	301.28	0.5887	633.0	523.2
82	0.00	2.07	0.00	1.25	19.27	100.22	32.03	299.46	0.5772	707.0	613.1
83	0.00	1.03	0.00	0.63	19.86	100.35	32.16	300.30	0.5822	619.0	536.2
84	0.00	0.26	0.00	0.15	16.89	99.70	31.51	295.85	0.5579	682.0	606.0
85	0.00	1.55	0.00	0.94	19.58	100.18	31.99	299.98	0.5784	808.0	653.6
86	0.00	1.46	0.00	0.88	19.10	99.96	31.77	299.34	0.5730	814.0	699.2
87	0.00	1.03	0.00	0.62	19.47	100.01	31.82	299.91	0.5756	780.0	685.8
88	0.78	2.15	0.48	1.33	22.32	100.66	32.47	303.89	0.6005	499.7	309.9
89	0.00	1.55	0.00	0.95	20.74	100.22	32.03	301.77	0.5856	736.0	622.2
90	0.00	1.03	0.00	0.62	18.36	99.66	31.47	298.34	0.5651	810.0	727.8
91	0.00	3.96	0.00	2.37	18.09	99.57	31.38	297.94	0.5625	439.0	604.2
92	0.00	1.55	0.00	0.92	17.48	99.41	31.22	297.02	0.5572	709.0	603.9
93	0.00	1.21	0.00	0.72	18.64	99.61	31.42	298.83	0.5660	860.0	727.7
94	0.00	0.95	0.00	0.59	22.45	100.50	32.31	304.20	0.5995	465.0	319.8
95	0.00	1.12	0.00	0.70	24.00	100.89	32.70	306.19	0.6138	464.0	364.2
96	0.00	1.21	0.00	0.73	20.62	100.01	31.82	301.73	0.5823	506.0	498.4
97	1.90	11.37	1.16	6.98	21.96	100.15	31.96	303.70	0.5922	809.2	569.9
98	0.00	0.78	0.00	0.47	21.65	100.07	31.88	303.28	0.5894	531.0	486.1
99	0.00	1.90	0.00	1.13	17.94	99.21	31.02	297.93	0.5571	823.0	758.8
100	0.00	2.15	0.00	1.30	19.48	99.53	31.34	300.24	0.5698	881.0	671.3
101	0.00	1.46	0.00	0.87	18.40	99.30	31.11	298.64	0.5608	726.0	625.2
102	0.00	0.34	0.00	0.21	18.07	99.20	31.01	298.15	0.5576	767.0	711.8
103	0.00	1.21	0.00	0.72	19.30	99.38	31.19	300.05	0.5668	728.0	503.6
104	0.00	1.46	0.00	0.89	21.65	99.84	31.65	303.45	0.5868	805.0	703.2
105	0.00	1.12	0.00	0.67	18.07	99.02	30.83	298.27	0.5553	898.0	796.5
106	0.00	1.72	0.00	1.07	24.08	100.33	32.14	306.71	0.6081	571.0	490.2
107	0.00	2.84	0.00	1.70	19.22	99.03	30.84	300.15	0.5620	908.0	641.0
108	0.00	1.29	0.00	0.77	18.05	98.76	30.57	298.40	0.5519	850.0	673.9
109	0.00	0.86	0.00	0.52	19.50	99.01	30.82	300.62	0.5635	817.0	646.3
110	0.00	0.60	0.00	0.36	18.02	98.57	30.38	298.49	0.5493	778.0	603.7
111	0.00	3.19	0.00	1.88	18.04	98.21	30.02	298.75	0.5448	739.0	743.2
112	0.00	0.86	0.00	0.51	18.65	98.29	30.10	299.72	0.5494	785.0	569.8
113	6.03	12.75	3.58	7.57	19.17	98.36	30.17	300.55	0.5534	896.1	727.3
114	0.00	2.84	0.00	1.67	17.87	97.68	29.49	298.83	0.5369	813.0	707.1
115	1.72	3.70	1.02	2.19	19.19	97.89	29.70	300.91	0.5476	925.5	893.3
116	0.00	1.81	0.00	1.06	17.97	97.41	29.22	299.19	0.5340	893.0	688.4
117	2.84	7.84	1.67	4.59	19.02	97.25	29.06	301.10	0.5384	920.8	799.6
118	0.00	1.29	0.00	0.75	17.89	96.86	28.67	299.46	0.5264	791.0	681.9
119	0.00	1.38	0.00	0.83	22.25	97.71	29.52	305.97	0.5657	816.0	671.7
120	0.00	1.03	0.00	0.60	17.89	96.65	28.46	299.62	0.5237	865.0	722.2
121	0.00	1.55	0.00	0.90	17.87	96.46	28.27	299.72	0.5212	721.0	692.8
122	0.00	4.48	0.00	2.60	18.27	96.46	28.27	300.42	0.5237	742.0	550.7
123	0.43	1.81	0.25	1.05	18.02	96.35	28.16	300.08	0.5207	969.4	810.6
124	0.00	4.65	0.00	2.69	17.75	96.23	28.04	299.69	0.5175	817.0	728.6
125	0.00	0.69	0.00	0.41	23.06	97.02	28.83	307.78	0.5635	565.0	495.8
126	0.00	2.50	0.00	1.44	17.40	95.75	27.56	299.43	0.5090	968.0	728.4
127	0.00	1.12	0.00	0.62	11.25	94.16	25.97	288.45	0.4547	693.0	498.5
128	0.00	1.98	0.00	1.15	19.78	95.32	27.13	303.96	0.5194	679.0	665.0
129	0.00	4.31	0.00	2.50	20.15	95.35	27.16	304.56	0.5225	695.0	594.8
130	0.00	1.29	0.00	0.75	19.44	95.19	27.00	303.49	0.5153	717.0	506.3
131	0.00	1.81	0.00	1.05	19.97	95.18	26.99	304.40	0.5190	906.0	739.7
132	0.00	1.21	0.00	0.70	20.04	95.05	26.86	304.63	0.5179	763.0	541.0
133	0.00	1.21	0.00	0.71	23.38	95.70	27.51	309.43	0.5510	425.0	385.4
134	0.00	0.95	0.00	0.54	19.34	94.32	26.13	304.08	0.5038	789.0	599.2
135	0.00	1.12	0.00	0.63	15.60	93.17	24.98	298.12	0.4631	770.0	625.7
136	0.00	1.29	0.00	0.72	18.63	91.75	23.56	305.30	0.4660	788.0	594.0
137	0.00	0.95	0.00	0.53	18.17	91.68	23.49	304.51	0.4616	629.0	538.8
138	0.00	1.72	0.00	0.96	18.64	91.17	22.98	305.94	0.4588	867.0	632.8

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
